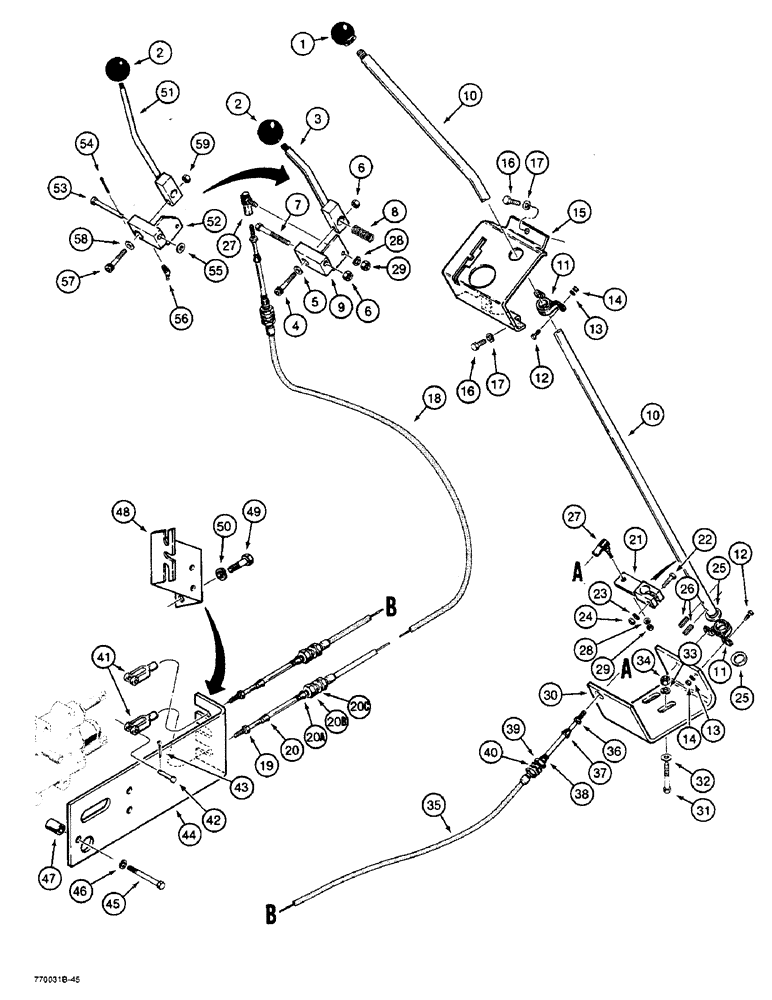

Запчасти Case W36 (6-226) - TRANSMISSION CONTROLS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A23885
KNOB
- direction lever
1-2шт.
2
A18852
KNOB
- if used
1шт.
3
L77926
LEVER
- speed selection, located next to steering column, if used
1шт.
4
61-624
HEX SOC SCREW,3/8"-16 x 1 1/2"
SCREW - socket head, 3/8" - 16 NC x 1-1/2", used with Ref. 3, L77926 lever
1шт.
5
95-6
WASHER,3/8"
- flat, 3/8"
1шт.
6
131-179
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8" - 16 NC
2шт.
7
13-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
- hex head, 3/8" - 16 NC x 3-1/4", used with Ref. 9, L77924 block
1шт.
8
A30709
VALVE SPRING
SPRING - speed selector
1шт.
9
L77924
BLOCK
- speed selector, used with Ref. 3, L77926 lever
1шт.
10
L79127
SHAFT
- direction selector
1шт.
11
L71373
BEARING ASSY,19.05mm ID
BEARING ASSEMBLY - shaft
2шт.
12
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
4шт.
13
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
14
25-104
NUT,1/4"-20, G5
4шт.
15
L77930
GUARD
COVER - speed selector lever, used with Ref. 3, L77926 lever
1шт.
16
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
3шт.
17
92-6
LOCK WASHER,3/8"
3шт.
L112452
CABLE PULLING GRIP
CABLE ASSEMBLY - speed control, Includes: Ref. 18 - 20C
1шт.
18
NSS
NOT SOLD SEPARAT
CABLE - speed control
1шт.
19
425-154
JAM NUT,Jam, 1/4"-28, G5
JAM NUT - hex, 1/4" - 20 NF
2шт.
20
NSS
NOT SOLD SEPARAT
SEAL - cable
2шт.
20a
NSS
NOT SOLD SEPARAT
SEAL - cable
2шт.
20b
129-167
JAM NUT,Jam, 5/8"-18, G5
JAM NUT - hex, 5/8" - 18 NF
4шт.
20c
195-108
WASHER,5/8"
- flat, 5/8"
4шт.
21
L77328
LEVER
- direction control
1шт.
22
13-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
- hex head, 5/16"-18 NC x 1-1/2"
1шт.
23
92-5
LOCK WASHER,5/16"
1шт.
24
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC
1шт.
26
138-96
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
2шт.
27
A10329
BALL JOINT,1/4" - 28 x 1"
- cable end
2шт.
28
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
29
25-104
NUT,1/4"-20, G5
- hex, 1/4" - 28 NF
2шт.
30
L109572
BRACKET
- transmission control lever
1шт.
31
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- hex, 3/8" - 16 NC x 2"
2шт.
32
95-6
WASHER,3/8"
- flat, 3/8"
2шт.
33
92-6
LOCK WASHER,3/8"
2шт.
34
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
2шт.
L112451
CABLE
ASSEMBLY - direction control, Includes: Ref. 35 - 40
1шт.
35
NSS
NOT SOLD SEPARAT
CABLE - direction control
1шт.
36
425-154
JAM NUT,Jam, 1/4"-28, G5
2шт.
37
NSS
NOT SOLD SEPARAT
SEAL - rod wiper
2шт.
38
NSS
NOT SOLD SEPARAT
SEAL - sleeve, swivel
2шт.
39
129-167
JAM NUT,Jam, 5/8"-18, G5
- hex, 5/8" - 18 NF
4шт.
40
193-63
LOCK WASHER,Int Tooth, 5/8"
WASHER - lock, 5/8"
4шт.
41
A18709
CLEVIS
- adjustable
2шт.
42
141-3
CLEVIS PIN,5/16" x .940"
- 3/8"
2шт.
43
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
44
L77337
BRACKET
- cable support, no longer available, order Ref. 48, L100135 bracket, Ref. 49, 13-1224 bolt, Ref. 50, 92-12 washer, and Ref. 34 on Fig. 5-202, L100136 bracket
1шт.
45
13-680
CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5
BOLT, Hex, 3/8"-16 x 5", G5
3шт.
46
92-6
LOCK WASHER,3/8"
3шт.
47
VP619
SPACER
- bracket
3шт.
48
L100135
BRACKET
- cable support, if used
1шт.
49
13-1224
BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5
2шт.
50
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
51
L105780
LEVER
- speed selection, located at left of instrument panel
1шт.
52
L106399
BLOCK
- speed selector, used with Ref. 51, L105780 lever
1шт.
53
L105778
PIN
- speed selector
1шт.
54
136-159
HAIR PIN COTTER,Int, 3/16 x .080"
PIN, SPLIT (COTTER), Int, 3/16 x .080"
1шт.
55
95-6
WASHER,3/8"
- flat, 3/8"
2шт.
57
61-632
HEX SOC SCREW,3/8"-16 x 2"
SCREW - socket head, 3/8" - 16 NC x 2"
1шт.
58
92-6
LOCK WASHER,3/8"
1шт.
Выбрано товаров: 64
