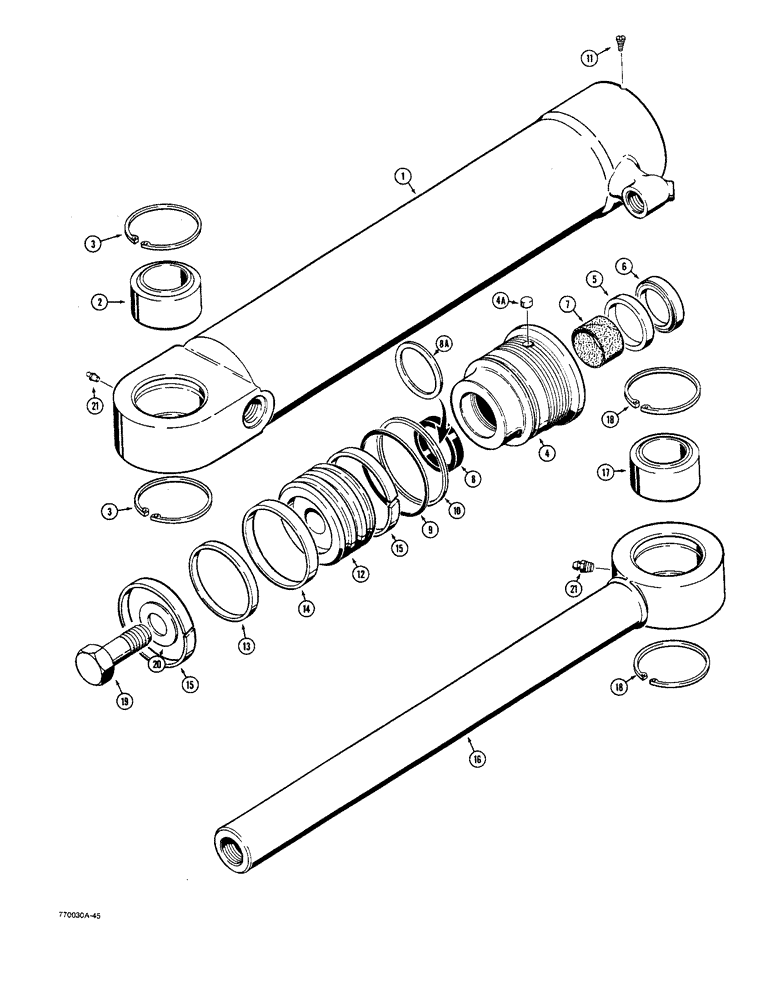

Запчасти Case W36 (5-222) - G101563 STEERING CYLINDERS, TUBE IS STAMPED WITH CYLINDER PART NUMBER (05) - STEERING

G101563

CYLINDER

- 4" (102 mm) ID x 16-15/16" (430 mm) stroke, steering, Includes: Ref. 1 - 21

2шт.

1

G35527

TUBE,26.13" L

- cylinder, Includes: Ref. 2 and 3

1шт.

2

S229376

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING - self-aligning

1шт.

3

F61018

SNAP RING,M73, Int

Ring, Snap, , brg 2.812", Int, #281

2шт.

G107524

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bushing

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

Part of Seal Kit P/N G109423

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

Part of Seal Kit P/N G109423

1шт.

8

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- piston rod

1шт.

Part of Seal Kit P/N G109423

1шт.

8

G100778

SEAL

- piston rod, extreme heat or cold, service option

1шт.

8a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to Ref. 8 in some glands

1шт.

Part of Seal Kit P/N G109423

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G109423

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland "O" Ring

1шт.

Part of Seal Kit P/N G109423

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, no. 8 - 32 NC x 3/8", if used

1шт.

12

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

13

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G109423

1шт.

14

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston

1шт.

Part of Seal Kit P/N G109423

1шт.

15

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of Seal Kit P/N G109423

1шт.

16

G35532

ROD

ASSEMBLY - piston, 2 " (51 mm) diameter, Includes: Ref. 17 and 18

1шт.

17

S229376

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING - self-aligning

1шт.

18

F61018

SNAP RING,M73, Int

Ring, Snap, , brg 2.812", Int, #281

2шт.

19

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

20

G32351

WASHER

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G109423

GASKET KIT

KIT - seal, Includes: Ref. 6, 7, Ref. 8 P/N G107923, Ref. 8A, 9, 10, 13, 14 and 15

1шт.
