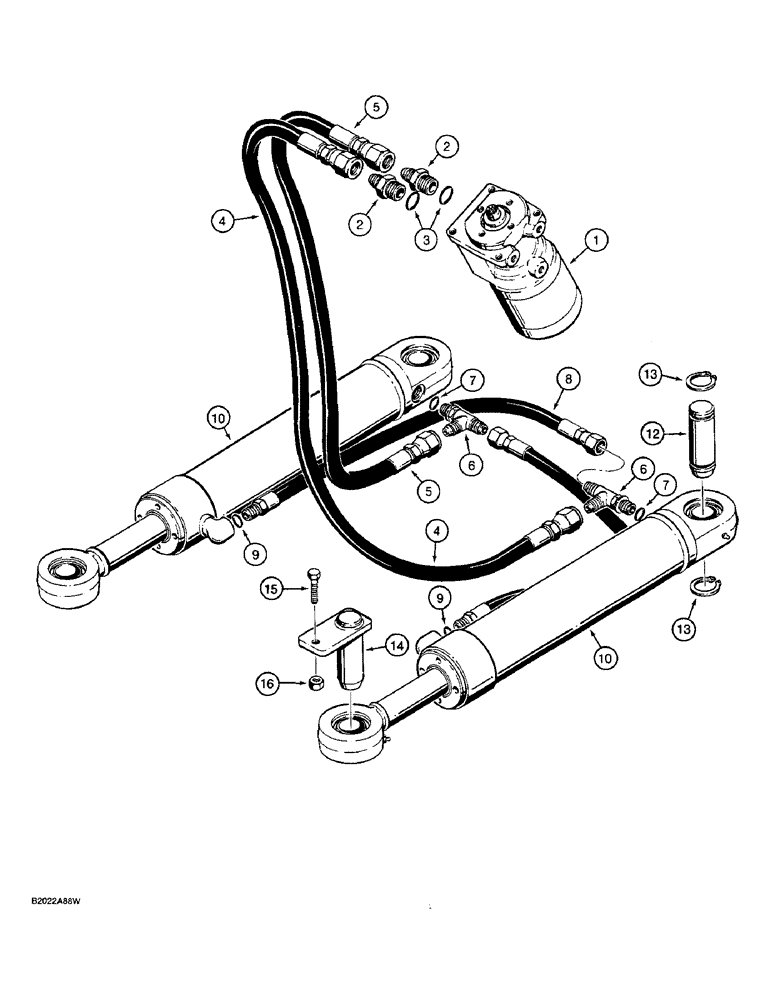

Запчасти Case W36 (5-218) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

L74337

VALVE

- steering control, parts list Fig. 5-200

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Adapter

1шт.

4

L74333

HOSE,0.63" ID x 53.00", SAE 100R2 Type A

ASSY, 0.63" ID x 53.00", SAE 100R2, Type A, Right-Hand Cylinder

1шт.

5

L74334

PIPE

HOSE - left-hand cylinder, 33" (838 mm) long

1шт.

6

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, Includes: Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

8

D34838

HOSE

- 33" (838 mm) long

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

2шт.

10

REF

INSTRUCTION

CYLINDER - steering, see Figs. 5-220 and 5-222 for correct assembly and components

2шт.

11

RESERVED

1шт.

12

L74482

PIN

- cylinder, closed end

2шт.

13

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

14

L70534

PIN

- cylinder, rod end

2шт.

15

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

2шт.

16

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.
