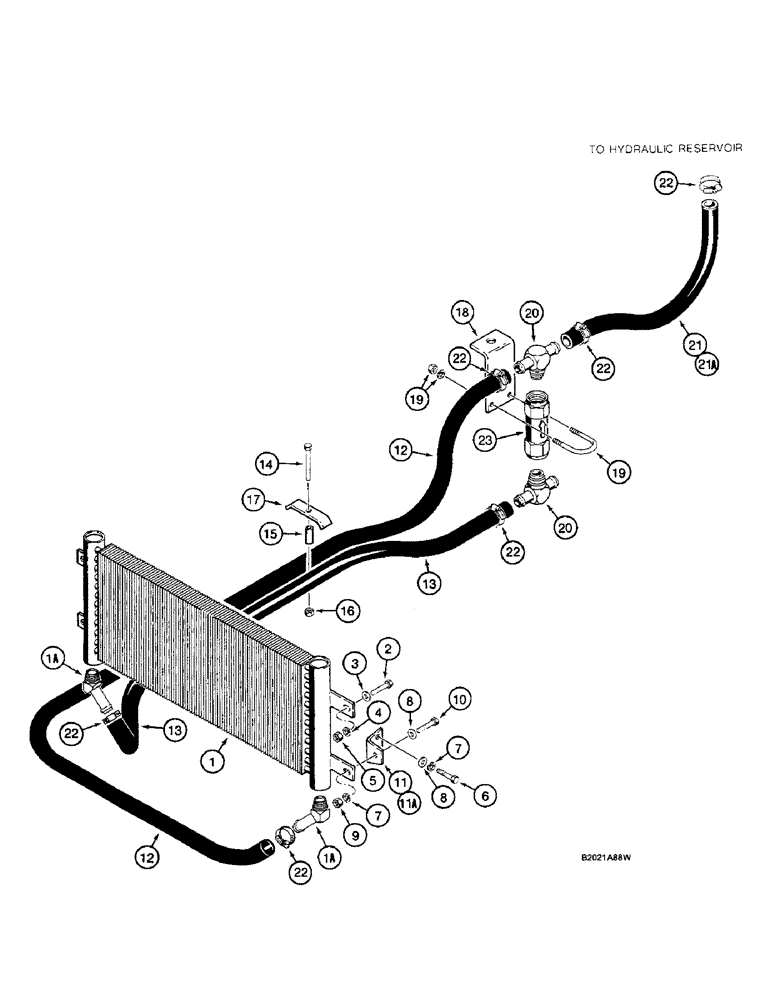

Запчасти Case W36 (5-212) - STEERING HYDRAULIC CIRCUIT, OIL COOLER TO RESERVOIR (05) - STEERING

1

REF

INSTRUCTION

COOLER - hydraulic oil, with hose stems, no longer available, order L107484 cooler and (2) 217-146 hose stems for service

1шт.

1

L107484

COOLER

- hydraulic oil, without hose stems

1шт.

1a

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

FITTING - hose stem, 45 degrees, if used

2шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

L74729

BRACKET

- cooler mounting, used with radiator with welded tank

2шт.

11a

L109314

BRACKET

- cooler mounting, used with radiator with formed tank

2шт.

12

L76517

LARGE HOSE

HOSE - 104" (2642 mm) x 1" (25 mm) ID

1шт.

13

L76518

HOSE,1.00" ID x 71.00", SAE 100R3

1шт.

14

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

15

G49622

SPACER,5/8" Tube x 1 7/16"

- clamp

1шт.

16

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

17

L47503

BRACKET

CLAMP - hose

1шт.

18

L74828

BRACKET

- check valve mounting

1шт.

19

L73301

CLAMP,51mm ID

U-BOLT - check valve

1шт.

20

L74865

TEE

- special

2шт.

21

D25739

LARGE HOSE

HOSE - 16" (406 mm) x 1" (25 mm) ID, used with filter in reservoir

1шт.

21a

L106901

HOSE,25.4 mm ID x 254.00 mm, SAE 100R3

- 10" (254 mm) x 1" (25 mm) ID, used with external filter

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

6шт.

23

L74869

VALVE

RELIEF VALVE - cooler

1шт.
