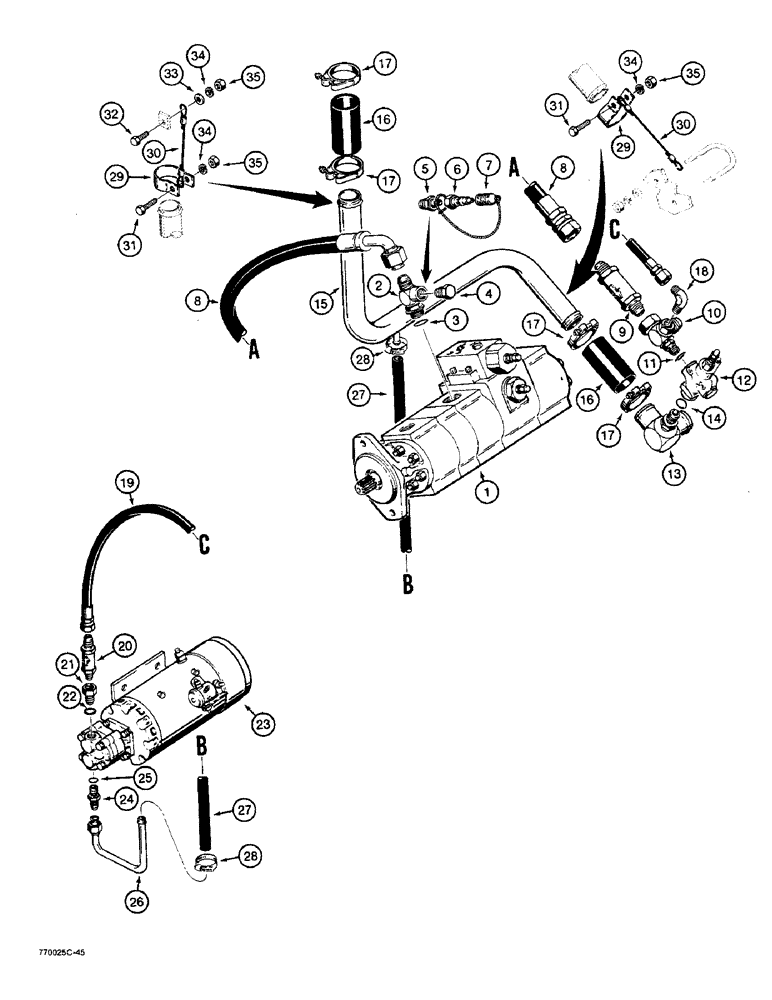

Запчасти Case W36 (5-208) - STEERING HYDRAULIC CIRCUIT - PUMP TO RESERVOIR, WITHOUT EXTERNAL FILTER (05) - STEERING

1

L72333

PUMP

- steering and loader, parts list Figs. 8-402 - 8-406

1шт.

2

L53125

TEE

- special, Includes: Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Tee

1шт.

4

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT

1шт.

5

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

ADAPTER - straight

1шт.

6

S206607

DISC

COUPLING - male

1шт.

7

S206608

CAP

COVER - dust, metal, if used

1шт.

7

D123387

DUST CAP

COVER - dust, plastic, service option, not shown

1шт.

8

L77256

HOSE

- steering supply

1шт.

9

L59608

LOCK VALVE

VALVE - check

1шт.

10

L100704

FITTING

TEE - special, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

12

L104049

VALVE

- relief, parts list Fig. 5-216

1шт.

13

L71977

TEE

ELBOW - special, Includes: Ref. 14

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

15

L76877

TUBE,2" OD

- suction

1шт.

16

L74461

HYDRAULIC HOSE,2.00" ID x 5.00", SAE 100R1 Type A

2шт.

17

214-350

CLAMP,#48, 2.37"-2.68", T-Bolt

AND HARDWARE - hose

4шт.

18

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

19

L100703

HOSE

- 35" (889 mm) long

1шт.

20

L70819

VALVE

- check

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, Incl. Ref 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

23

L116118

PUMP, HYDRAULIC

PUMP AND MOTOR - auxiliary steering, parts list Fig. 5-214

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

26

L72866

TUBE ASSY.,0.625" OD x 5.7, 4.4" L

TUBE - suction

1шт.

27

L76381

HOSE,15.9 mm ID x 457.20 mm, SAE 30R2 Type 1

15.9 mm ID x 457.20 mm, SAE 30R2

1шт.

28

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

29

F20911

CLAMP

- tube

2шт.

30

L78786

CABLE RETAINER

CABLE - wire

2шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

33

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

34

92-6

LOCK WASHER,3/8"

3шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.
