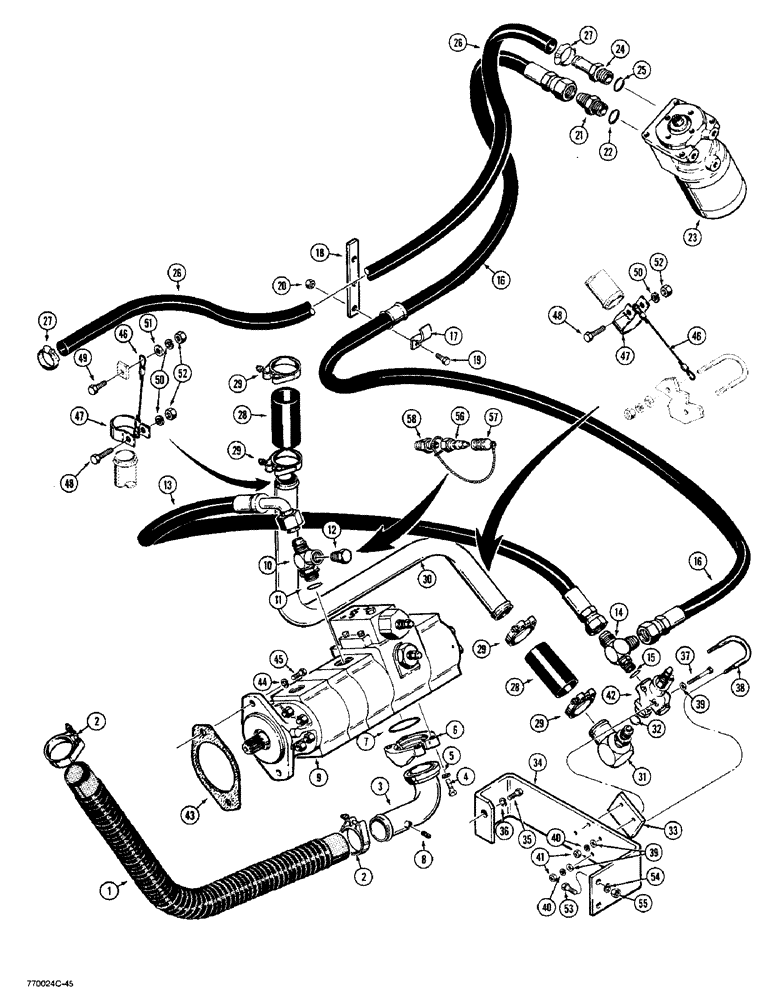

Запчасти Case W36 (5-202) - STEERING HYDRAULIC CIRCUIT - PUMP TO RESERVOIR MODELS WITHOUT AUXILIARY STEERING (05) - STEERING

1

L112986

HOSE,2.50" ID x 28.00"

1шт.

2

214-376

CLAMP,#58, 2.68"-3.00", T-Bolt

AND HARDWARE - hose

2шт.

3

L71762

TUBE,2.5" OD x 7.16, 3.82" L

- suction

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

L14386

CLAMP

SPLIT FLANGE - tube

2шт.

7

L53822

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- flange

1шт.

8

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT

1шт.

9

L72333

PUMP

- steering and loader, parts list Figs. 8-402 - 8-406

1шт.

10

L53125

TEE

- special, Includes: Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Tee

1шт.

12

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT, if used

1шт.

13

L77256

HOSE

- to relief valve

1шт.

14

L73012

TEE

- special, Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

16

L79804

HOSE

- 50" (1270 mm) long, relief valve to steering vlave

1шт.

17

A12298

CLAMP

- hose, if used

1шт.

18

L76756

SPACER

- hose clamp, if used

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

20

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

21

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref. 22

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Connector

1шт.

23

L74337

VALVE

- steering, parts list Fig. 5-200

1шт.

24

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Stem 1" Hose X 1 5/16"-12 ORB, Beaded

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Stem fitting

1шт.

26

L76517

LARGE HOSE

HOSE - 104" (2642 mm) x 1" (25 mm) ID

1шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

28

L74461

HYDRAULIC HOSE,2.00" ID x 5.00", SAE 100R1 Type A

2шт.

29

214-350

CLAMP,#48, 2.37"-2.68", T-Bolt

AND HARDWARE - hose

4шт.

30

L71932

TUBE,2" OD

- return

1шт.

31

L71977

TEE

- special, Includes: Ref. 32

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Tee

1шт.

33

L72098

SPACER

- valve

1шт.

34

L100136

BRACKET

- valve mounting

1шт.

35

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

36

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

37

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - hex head, 5/16" - 18 NC x 3"

2шт.

38

F19988

U-BOLT

- 5/16" - 18 NC

1шт.

39

95-6

WASHER,3/8"

- flat, 5/16"

6шт.

40

92-5

LOCK WASHER,5/16"

4шт.

41

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

42

L104049

VALVE

- relief, parts list Fig. 5-216

1шт.

43

D53692

GASKET,0.79mm Thk

- pump

1шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

45

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

46

L78786

CABLE RETAINER

CABLE - clamp retainer

2шт.

47

F20911

CLAMP

- tube

2шт.

48

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

49

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

50

92-6

LOCK WASHER,3/8"

3шт.

51

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

52

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

53

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

54

92-8

LOCK WASHER,1/2"

2шт.

55

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

56

S206607

DISC

COUPLING - pressure check

1шт.

57

S206608

CAP

COVER - dust, metal, if used

1шт.

57

D123387

DUST CAP

COVER - dust, plastic, service option, not shown

1шт.

58

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - straight

1шт.
