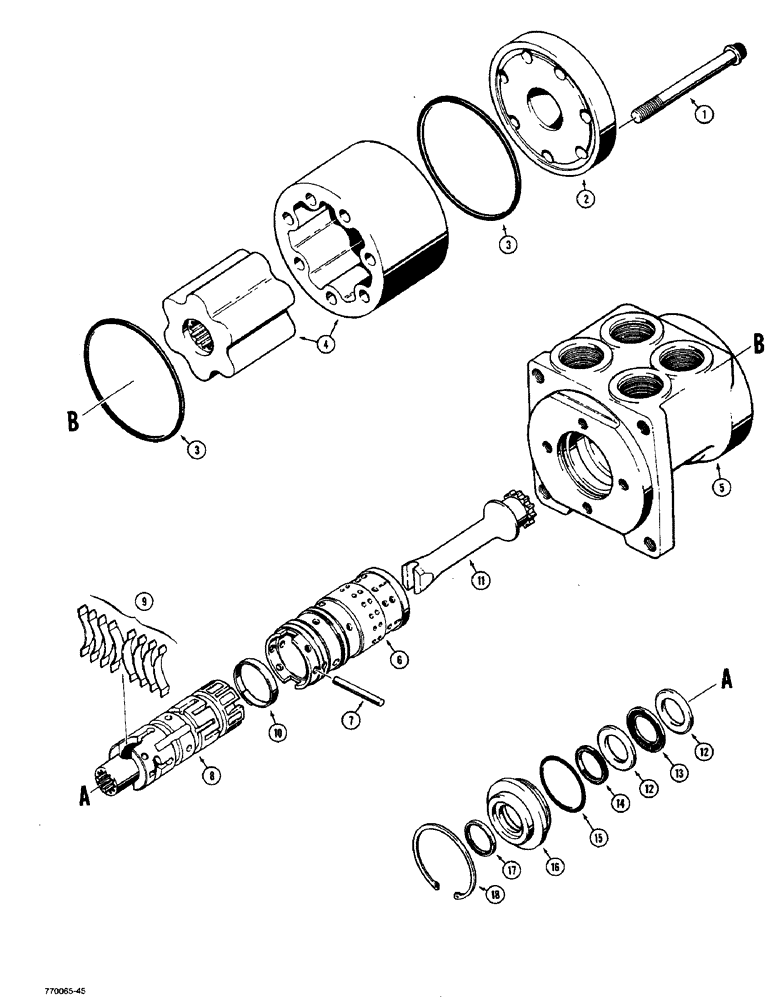

Запчасти Case W36 (5-200) - STEERING VALVE (05) - STEERING

L74337

VALVE

ASSEMBLY - steering, Includes: Ref. 1 - 18

1шт.

1

D77389

BOLT

- Ferry head, special

7шт.

2

D77382

COVER

- end

1шт.

3

S5642

O-RING,5.012" ID x 5.125" OD x 0.73"

- large

2шт.

4

D77381

IMPELLER

GEROTOR SET - valve

1шт.

D77379

HOUSING

CONTROL ASSEMBLY - valve, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

7

D77390

PIN

- centering

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

9

N14233

KIT

SPRING KIT - centering, set of 8 springs

1шт.

10

D77384

VALVE

- check

1шт.

11

D77380

DRIVE

SHAFT - valve

1шт.

L35676

BEARING ASSY

BEARING ASSEMBLY - through, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - through bearing

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Spool

1шт.

14

A72029

RING

SEAL - quad ring

1шт.

15

S5727

O-RING,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

- small

1шт.

16

D7738

GLAND - shaft seal

1шт.

17

A28211

OIL SEAL

- dust

1шт.

18

D77388

SNAP RING,2.375", Int, #237

Ring, Snap, , gland 2.375", Int, #237

1шт.
