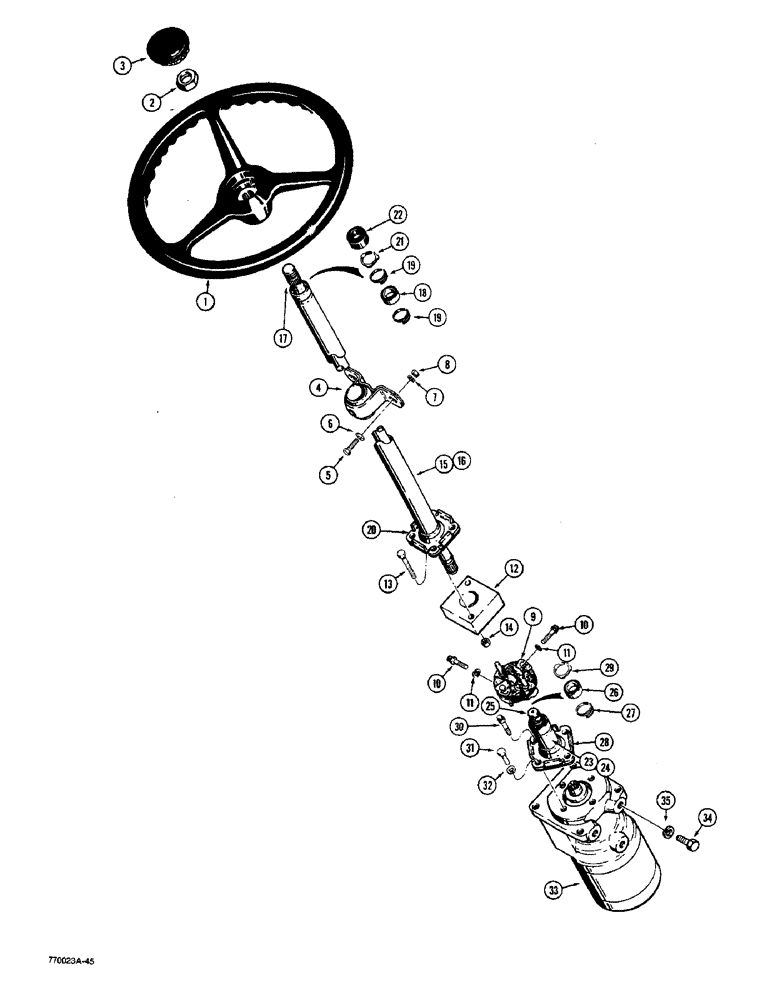

Запчасти Case W36 (5-198) - STEERING CONTROL PARTS (05) - STEERING

1

L74518

WHEEL

STEERING WHEEL - tractor

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex, steering wheel retaining

1шт.

3

L114276

CAP

- steering wheel

1шт.

4

L50073

BEARING CARRIER

BEARING - steering column support

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

6

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

9

L76845

COUPLING

ISOLATOR - use with L76844 column, upper, and L76843 column, lower, Serial Range: -9131101

1шт.

Ref. 9A - Splined only on the lower end I.D.

1шт.

Ref. 9 - Splined I.D. on both ends

1шт.

9

L100096

ISOLATOR

- use with L100095 column, upper, and L100706 column, lower, Start Serial: 9131101

1шт.

10

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex head, 3/8" - 24 NF x 1-1/4"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

L77038

SPACER

- steering column

1шт.

13

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

14

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

15

L100095

COLUMN JACKET

COLUMN - upper, individual components not serviced separately, Start Serial: 9131101

1шт.

Ref. 15 - No spline on end that goes into the L100096 Isolator

1шт.

16

L76844

COLUMN JACKET

COLUMN - upper, Includes: Ref. 17 - 22, Serial Range: -9131101

1шт.

D80418

BEARING, ROLLER

BEARING - shaft, Includes: Ref. 17 - 19

1шт.

Ref. 16 - Splined only on end that goes into L76845 Isolator

1шт.

17

NSS

NOT SOLD SEPARAT

SHAFT - steering column

1шт.

18

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- shaft

1шт.

19

F53335

RING, SNAP

RETAINING RING - bearing

2шт.

20

L33716

HUB

FLANGE - tube

1шт.

21

D46319

OIL SEAL

RETAINING RING - bearing

1шт.

22

D80416

CAP

TUBE - cap, outer

1шт.

23

L100706

CAP

COLUMN - lower, used on, individual components not serviced separately, Start Serial: 9131101

1шт.

Ref. 23 - Will work with either the old or new Isolators

1шт.

24

L76843

COLUMN JACKET

COLUMN - lower, Includes: Ref. 25 - 27, Start Serial: 9131101

1шт.

D80417

SHAFT

BEARING - shaft, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

SHAFT - steering column

1шт.

26

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- shaft

1шт.

27

F53335

RING, SNAP

RETAINING RING - bearing

1шт.

28

D46321

FLANGE - tube

1шт.

29

D46319

OIL SEAL

RETAINING RING - bearing

1шт.

30

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 3/4", if used

2шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2-4шт.

32

92-6

LOCK WASHER,3/8"

2-4шт.

33

L74337

VALVE

ASSEMBLY - steering, parts list Fig. 5-200

1шт.

34

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

3шт.

35

92-8

LOCK WASHER,1/2"

3шт.
