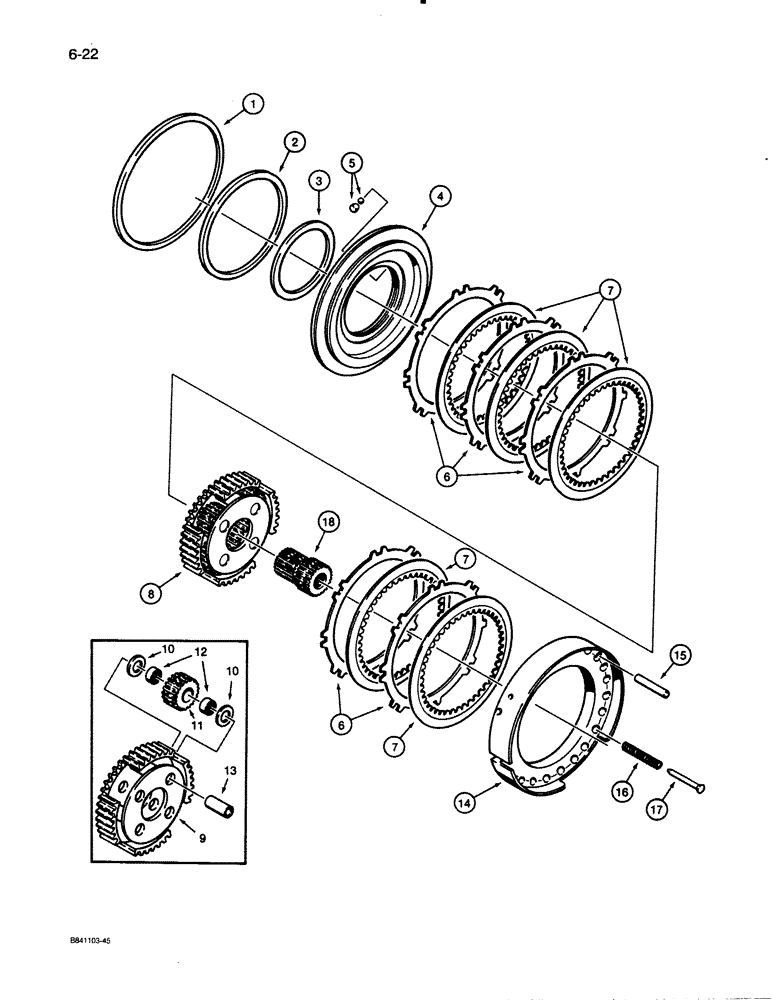

Запчасти Case W30 (6-22) - ALLISON TRANSMISSION, REVERSE CLUTCH AND PLANETARY (06) - POWER TRAIN

L114679

TRANSMISSION

- complete, Allison No. 23040191, used on units with auxiliary steering

1шт.

L114707

TRANSMISSION

- complete, Allison No. 23019975, used on units without auxiliary steering

1шт.

1

N9328

SEALING RING

SEAL - large, 13-1/2" lip diameter

1шт.

2

N9327

SEALING RING

SEAL - medium, 10-3/8" lip diameter

1шт.

3

L33968

SEALING RING,170.26mm ID x 179.2mm OD x 3.3mm Thk

- small, 6-3/4" lip diameter

1шт.

N9331

PISTON ASSY.

PISTON ASSEMBLY - reverse clutch

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - reverse clutch

1шт.

5

N8408

KIT

- ball and retainer

1шт.

6

N9335

PLATE

- clutch, external spline

5шт.

7

N7313

PLATE

- clutch, internal spline

5шт.

8

N9389

CARRIER

ASSEMBLY - reverse clutch planetary

1шт.

9

NSS

NOT SOLD SEPARAT

CARRIER AND HUB - reverse clutch planetary

1шт.

10

N9390

WASHER

THRUST WASHER - bearing

8шт.

11

N9391

SET OF PINIONS

PINION SET - planetary, matched set of 4

1шт.

12

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

- carrier

8шт.

13

N9392

PIN

SPINDLE - pinion

4шт.

14

N9393

ANCHOR

PLATE ASSEMBLY - pressure

1шт.

15

NSS

NOT SOLD SEPARAT

PIN - plate

8шт.

16

N9394

SPRING

- clutch piston return

15шт.

17

N9395

PIN

- spring

15шт.

18

N9334

GEAR

SUN GEAR - forward and reverse clutch

1шт.
