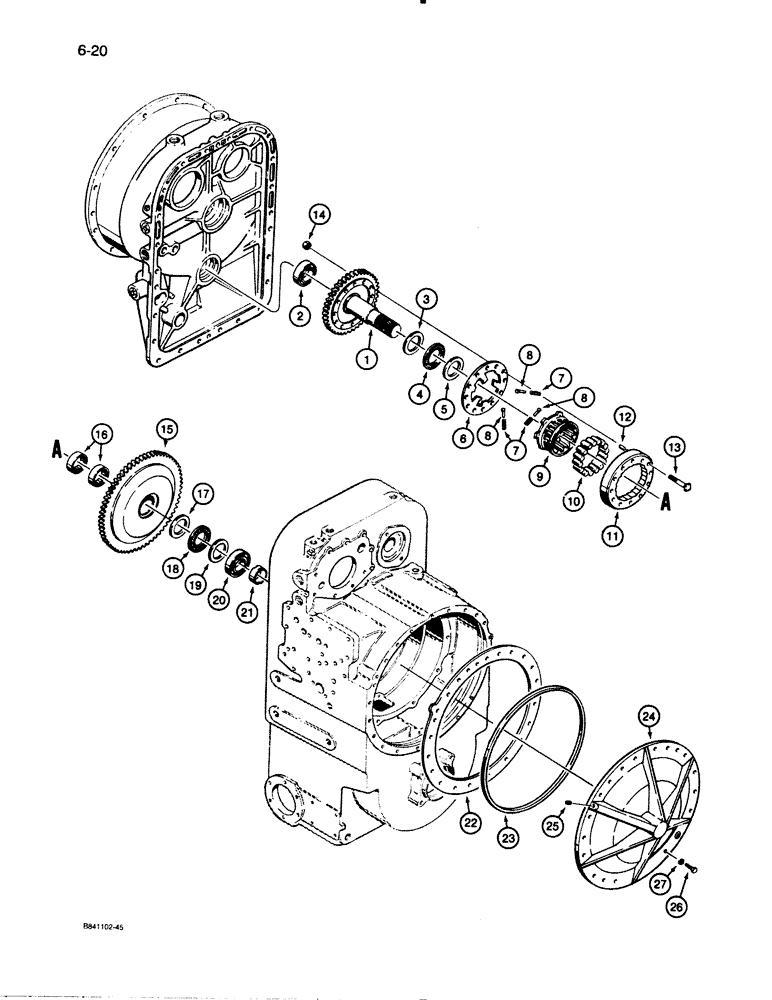

Запчасти Case W30 (6-20) - ALLISON TRANSMISSION, TURBINE DRIVEN GEARS, FREEWHEEL UNITS, AND REAR COVER (06) - POWER TRAIN

L114679

TRANSMISSION

- complete, Allison No. 23040191, used on units with auxiliary steering

1шт.

L114707

TRANSMISSION

- complete, Allison No. 23019975, used on units without auxiliary steering

1шт.

1

N9323

GEAR

DRIVEN GEAR AND SHAFT ASSEMBLY - second turbine

1шт.

2

N9322

BEARING ASSY

BALL BEARING - gear and shaft

1шт.

3

N9324

RACE

- thrust bearing

1шт.

4

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

- shaft

1шт.

5

N9324

RACE

- thrust bearing

1шт.

6

L33962

PLATE

- spring retainer

1шт.

7

D48863

SPRING

- plate

3шт.

8

D47644

PIN

- spring positioning

3шт.

9

N7932

CAGE

- freewheel roller

1шт.

10

N7933

ROLLER

- freewheel

15шт.

N7931

CAM

ASSEMBLY - freewheel

1шт.

11

NSS

NOT SOLD SEPARAT

CAM - freewheel

1шт.

12

138-294

LOCK PIN,1/8" x 1/4", Slotted

Pin, , Cam 1/8" x 1/4", Slotted

1шт.

13

N7934

BOLT

- special

12шт.

14

L31163

SPECIAL NUT

- special

12шт.

N9325

GEAR

ASSEMBLY - first turbine

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - first turbine

1шт.

16

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

ROLLER BEARING - gear, 1-3/4 in ID

2шт.

17

N9324

RACE

- thrust bearing

1шт.

18

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

- gear

1шт.

19

N9324

RACE

- thrust bearing

1шт.

20

L33908

BEARING

BALL BEARING - gear

1шт.

21

N9326

SPACER

- bearing

1шт.

22

N7021

GASKET

- front

1шт.

23

N9008

SEALING RING

RING - cover, sealing

1шт.

24

N14698

COVER

- rear, used with L114679 transmission, not shown

1шт.

24

N9422

COVER

- rear, used with L114707 transmission

1шт.

Ref #24 - N13281 Cup Plug, 3/16" is needed if customer is converting from a non-ground drive to a ground drive system. Plug will go into transmission housoing hole at approximately 9:00 o'clock when facing the rear of the transmission.

1шт.

25

221-849

PLUG,Hex Soc, 1/8"-27

- square socket head, 1/8" NPT

1шт.

26

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

16шт.

27

92-6

LOCK WASHER,3/8"

16шт.
