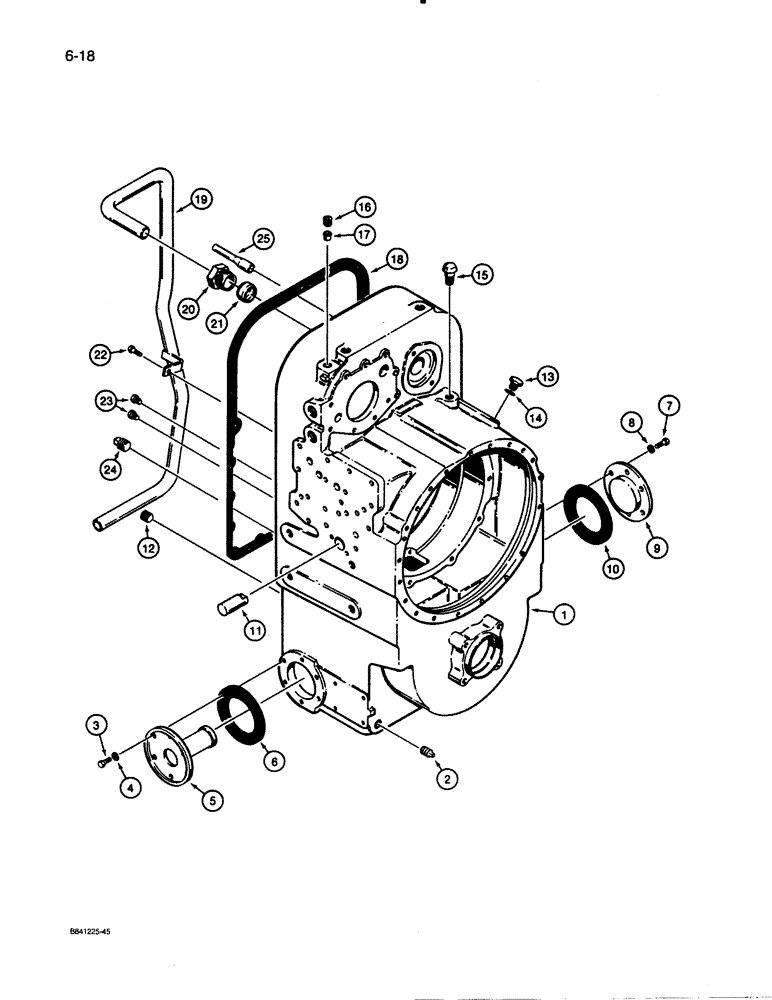

Запчасти Case W30 (6-18) - ALLISON TRANSMISSION, TRANSMISSION HOUSING (06) - POWER TRAIN

L114679

TRANSMISSION

- complete, Allison No. 23040191, used on units with auxiliary steering

1шт.

L114707

TRANSMISSION

- complete, Allison No. 23019975, used on units without auxiliary steering

1шт.

1

N9330

HOUSING

- transmission

1шт.

2

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - transmission drain, magnetic

1шт.

Ref #2 - (3/4" Plug)

1шт.

3

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

4

92-6

LOCK WASHER,3/8"

6шт.

5

L31082

STRAINER ELEMENT

STRAINER - transmission suction line

1шт.

6

D77594

GASKET,1.78mm Thk

- strainer

1шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

D47461

COVER

- transmission housing

1шт.

10

D77594

GASKET,1.78mm Thk

- cover

1шт.

11

D47462

PIN

- anchor

1шт.

12

L31051

PLUG

- drain

1шт.

13

221-689

DRAIN PLUG,Hex Hd, 3/4"-16

PLUG - magnetic

1шт.

14

T39010

PLATE

WASHER - special

1шт.

15

D57822

BREATHER

- transmission

1шт.

16

221-1025

PLUG

- square socket head, 3/4" NPT

1шт.

17

L31080

PLUG

- remote filter

1шт.

18

D48358

GASKET

- torque converter to transmission housing

1шт.

19

L32788

TUBE,1.25" OD

- suction

1шт.

20

L31083

NUT

- special

1шт.

21

L31084

SEAL

- nut

1шт.

22

121-205

LOCK BOLT,Lock Place, Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - hex head, 3/8" - 16 NC x 3/4"

1шт.

23

221-662

PLUG,Hex Hd, 1/4"-18

- add and full positions, transmission oil

2шт.

24

221-1017

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - oil filler

1шт.

25

N9329

TUBE,0.89" OD x 3.73" L

- breather extension

1шт.
