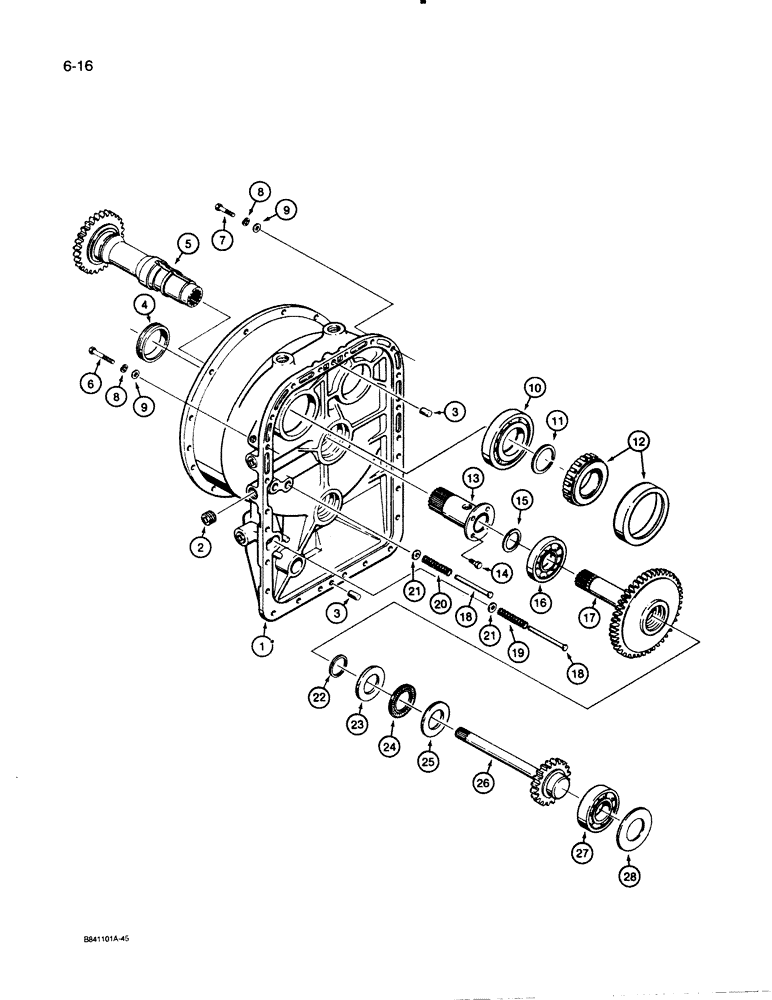

Запчасти Case W30 (6-16) - ALLISON TRANSMISSION, TORQUE CONVERTER HOUSING AND GEARS (06) - POWER TRAIN

L114679

TRANSMISSION

- complete, Allison No. 23040191, used on units with auxiliary steering

1шт.

L114707

TRANSMISSION

- complete, Allison No. 23019975, used on units without auxiliary steering

1шт.

L33923

HOUSING

ASSEMBLY - torque converter

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - torque converter

1шт.

2

221-845

PLUG,Hex Soc, 3/4"-14

- housing, 3/4" NPT

1шт.

3

L31168

PIN

DOWEL PIN - housing

2шт.

4

D47509

SLEEVE

- housing

1шт.

5

L32399

GEAR

DRIVEN GEAR - transmission

1шт.

6

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

1шт.

7

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

23шт.

8

92-7

LOCK WASHER,7/16"

24шт.

9

95-7

WASHER,7/16"

- flat, 7/16"

24шт.

10

D47567

BEARING

BALL BEARING - housing

1шт.

11

A12663

RING

SNAP RING - bearing retaining

1шт.

12

N9316

BEARING ASSY,59.98mm ID x 95mm OD x 18mm W

ROLLER BEARING - housing

1шт.

13

N9317

SLEEVE

- converter ground

1шт.

14

121-104

BOLT,Lock Place, Hex, 5/16" - 18 x 3/4", Gr 8

- hex head, 5/16" - 18 NC x 3/4"

4шт.

15

D47445

SEAL

ING RING - second turbine

1шт.

16

N9318

BEARING, ROLLER, CYL,55mm ID x 90mm OD x 18mm

BEARING - gear and shaft

1шт.

17

N9319

GEAR

DRIVE GEAR AND SHAFT - second turbine

1шт.

18

D47879

PIN

- valve guide

2шт.

19

D47448

SPRING

- pin

1шт.

20

N6383

SPRING

- converter regulator

1шт.

21

L31023

WASHER

VALVE - torque converter

1шт.

22

N9320

SEALING RING

SEALING RING - shaft

1шт.

23

D47569

RACE

- thrust, front

1шт.

24

D47570

BEARING ASSY

THRUST BEARING - gear and shaft

1шт.

25

D47571

RACE

- thrust, rear

1шт.

26

N9321

GEAR

DRIVE GEAR AND SHAFT - first turbine

1шт.

27

L31821

BEARING

BALL BEARING - gear and shaft

1шт.

28

N9333

WASHER

THRUST WASHER - bearing

1шт.
