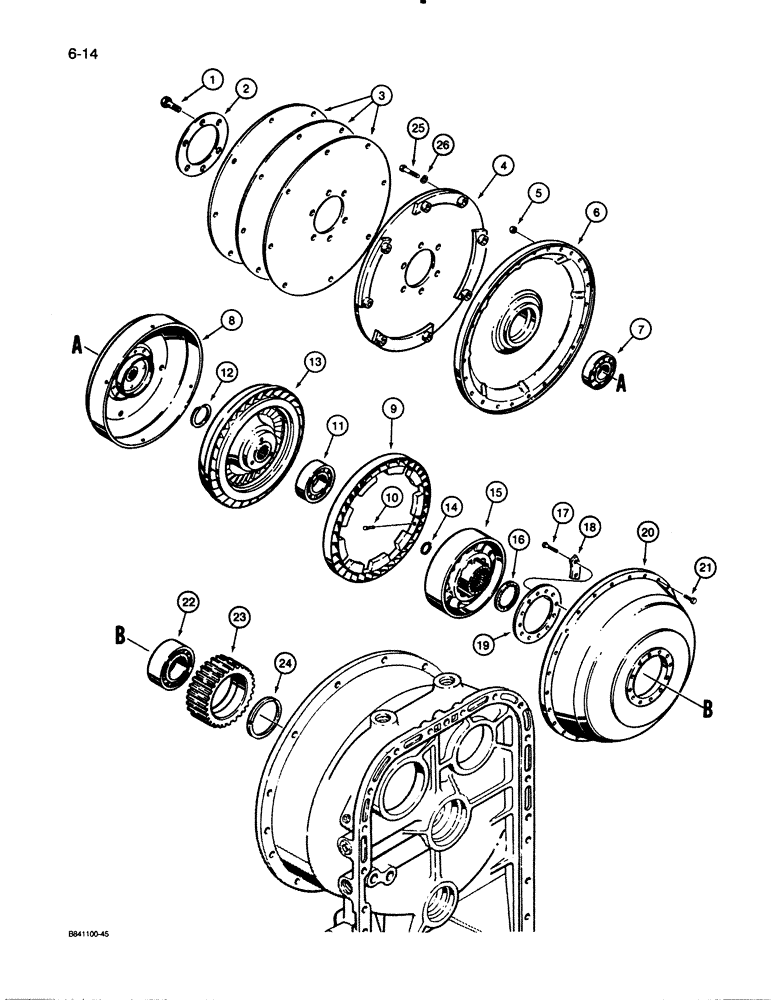

Запчасти Case W30 (6-14) - ALLISON TRANSMISSION, TORQUE CONVERTER, FLEX PLATES, TURBINES, AND PUMP (06) - POWER TRAIN

L114679

TRANSMISSION

- complete, Allison No. 23040191, used on units

1шт.

with auxiliary steering

1шт.

L114707

TRANSMISSION

- complete, Allison No. 23019975, used on units

1шт.

without auxiliary steering

1шт.

1

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

BOLT - hex head, 1/2" - 13 NC x 7/8", grade 8

6шт.

2

D46334

PLATE

- disc retaining

1шт.

3

D46335

DISC

- flex

3шт.

4

D46336

DISC

- flex plate backing

1шт.

5

N7170

LOCK NUT

- special

24шт.

6

N9312

COVER

- torque converter pump

1шт.

7

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

- torque converter

1шт.

N9313

TURBINE

ASSEMBLY - torque converter, first

1шт.

8

NSS

NOT SOLD SEPARAT

TURBINE HOUSING - torque converter first

1шт.

9

NSS

NOT SOLD SEPARAT

TURBINE - torque converter

1шт.

10

L31076

PIN

- turbine

6шт.

11

L31015

BEARING

BALL BEARING - torque converter

1шт.

12

F10650

RING, SNAP

SNAP RING - turbine positioning

1шт.

13

N14696

TURBINE

ASSEMBLY - torque converter, second, was N9314

1шт.

14

D47433

RING

SNAP RING - external

1шт.

15

D50277

STATOR

- torque converter

1шт.

16

D47435

BUSHING

SPACER - stator

1шт.

17

28-418

BOLT

- hex head, 1/4" - 28 NF x 1-1/8", grade 8

12шт.

18

D47436

PLATE, LOCKING

PLATE - locking

6шт.

19

D47437

RETAINER

- pump

1шт.

N6837

PUMP

ASSEMBLY - torque converter

1шт.

20

NSS

NOT SOLD SEPARAT

PUMP - torque converter

1шт.

21

N8231

SERRATED BOLT

- special

24шт.

22

D47531

BALL BEARING,55mm ID x 100mm OD x 33.34mm W

- pump

1шт.

23

N9315

GEAR

DRIVE GEAR - accessory

1шт.

24

D47441

SEAL

ING RING - drive gear

1шт.

25

114-268

PREV TORQUE BOLT,Locking, 3/8"-24 x 2 1/4", G5

BOLT - hex head, self-locking, 3/8" - 24 NF x 2-1/4", grade 5

8шт.

26

92-6

LOCK WASHER,3/8"

8шт.
