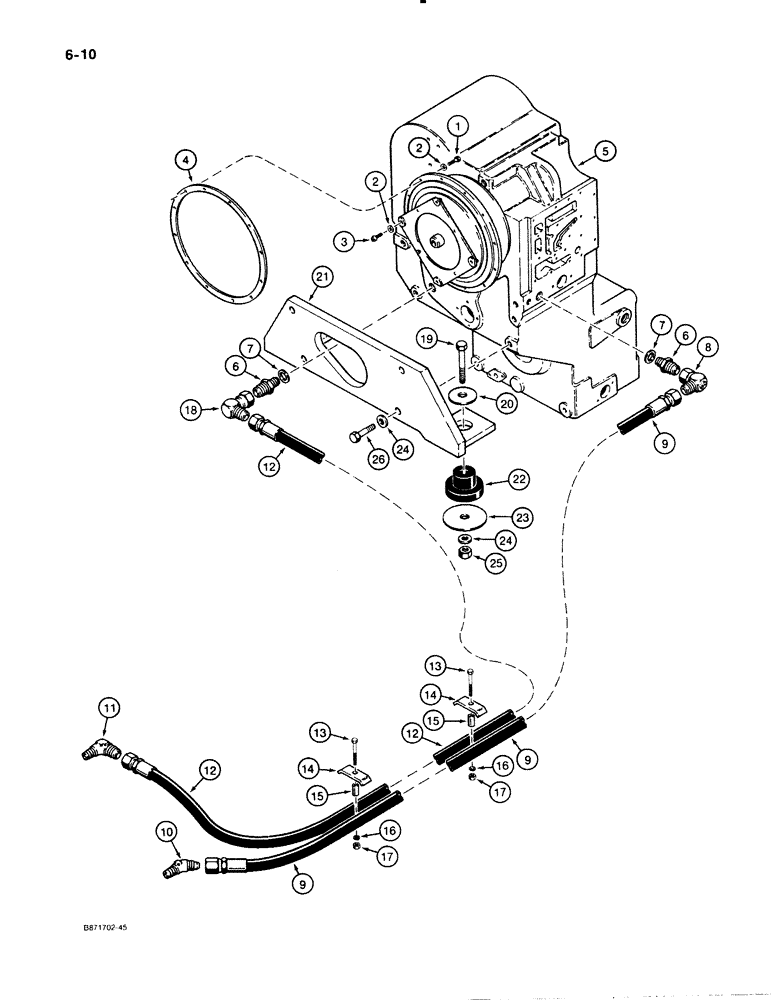

Запчасти Case W30 (6-10) - TRANSMISSION MOUNTING AND HYDRAULIC CIRCUIT, USED ON MODELS WITH ZF TRANSMISSION (06) - POWER TRAIN

1

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

2

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, plated

16шт.

3

L118009

HEX SOC SCREW

BOLT - hex socket head, 10 mm - 1.5 x 40 mm, plated

4шт.

4

D47428

GASKET

- transmission, if used

1шт.

5

L116979

TRANSMISSION

ASSEMBLY - ZF No. 4644-004-095, complete, parts list Figures 6-36 through 6-60, see Figure 6-62 for overhaul seal and gasket kit

1шт.

6

N14714

CONNECTION

ADAPTER - straight

2шт.

7

E135041

O-RING

SEAL - adapter, 26 mm ID x 31 mm OD x 2

2шт.

8

L117388

FITTING

TEE - special

1шт.

9

L118086

HOSE,22.23 mm ID x 1810.00 mm, SAE J1402

Transmission to Cooler 22.23 mm ID x 1810.00 mm, SAE J1402

1шт.

10

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

- 45 degree

1шт.

11

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree

1шт.

12

L117381

HOSE,22.23 mm ID x 2310.00 mm, SAE 1402-A

Cooler to Transmission 22.23 mm ID x 2310.00 mm, SAE 1402-A

1шт.

13

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4"

2шт.

14

L102739

CLAMP

- hose

2шт.

15

D42740

SPACER

SLEEVE - clamp

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

18

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

STREET ELBOW - 90 degree, swivel

1шт.

19

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

20

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4" bolt size, 13/16" ID x 3" OD x 1/4" thick

2шт.

L117954

BRACKET

ASSEMBLY - transmission mounting

1шт.

21

NSS

NOT SOLD SEPARAT

BRACKET - transmission mounting

1шт.

22

A19066

MOUNTING PARTS

MOUNT - transmission, rubber

2шт.

23

L100884

WASHER

- flat, special, 25/32" ID x 4.25" OD

2шт.

24

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened

6шт.

25

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

2шт.

26

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

- hex head, 20 mm - 2.5 x 55 mm (10.9)

4шт.
