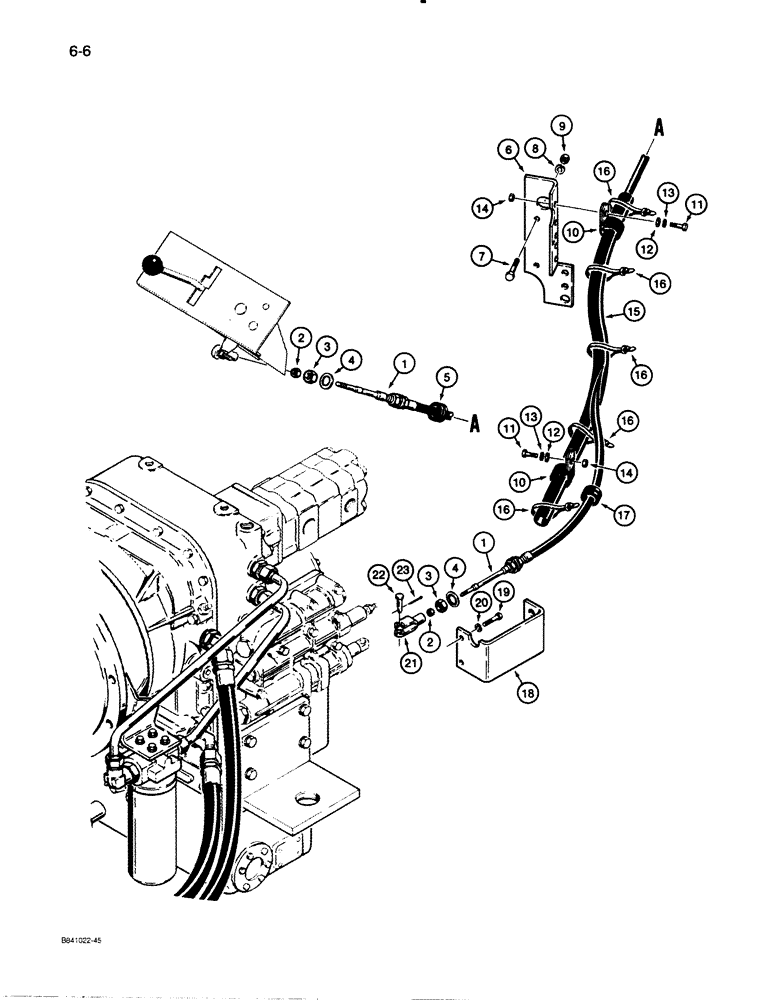

Запчасти Case W30 (6-06) - TRANSMISSION CONTROL PARTS, CABLE AND CABLE MOUNTING, USED ON MODELS WITH ALLISON TRANSMISSION (06) - POWER TRAIN

L112452

CABLE PULLING GRIP

CABLE ASSEMBLY - transmission control

1шт.

1

NSS

NOT SOLD SEPARAT

CABLE - transmission control

1шт.

2

425-154

JAM NUT,Jam, 1/4"-28, G5

JAM NUT - hex, 1/4" - 20 NF

2шт.

3

129-167

JAM NUT,Jam, 5/8"-18, G5

JAM NUT - hex, 5/8" - 20 NF

2шт.

4

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - flat, internal tooth lock, 5/8"

2шт.

5

L106295

GROMMET

- cable

1шт.

6

L126883

SUPPORT

BRACKET - hose, was L105853

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

10

L100875

CLAMP

- cable

2шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

15

L106057

HOSE ASSY.

HOSE - cable cover

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

A7808

GROMMET

- cable

1шт.

18

L106005

BRACKET

- transmission cable

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A60661

YOKE

- cable

1шт.

22

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.
