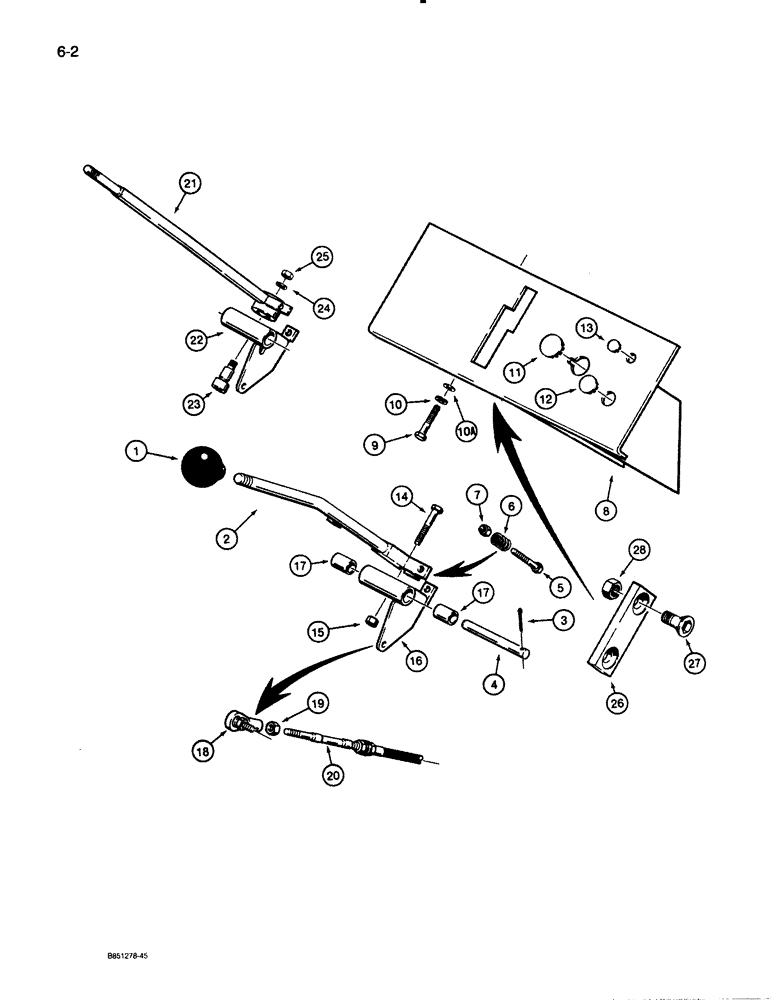

Запчасти Case W30 (6-02) - TRANSMISSION CONTROL PARTS, SHIFT LEVER, USED ON MODELS WITH ALLISON TRANSMISSION (06) - POWER TRAIN

1

A23885

KNOB

- transmission control lever

1шт.

2

L112158

LEVER

- transmission control, with rub block, no longer available, order items 21 thru 28

1шт.

3

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Pivot pin 1/8" x 1 1/4"

1шт.

4

L106228

PIN

- pivot

1шт.

5

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

6

F62245

SPRING

- control lever

1шт.

7

131-650

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

8

L116794

BRACKET

- transmission control

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

10a

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

11

353-408

PLUG,Dome, .750" hole, Nylon

- 3/4"

1шт.

12

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16"

1шт.

13

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

14

113-2244

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8, Full Thd

1шт.

15

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

16

L114081

PIVOT

- control lever, used with L 112158 lever, no longer available, order items 21 thru 28

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - pivot

2шт.

18

H358374

PIVOT,1/4" - 28 x 1-1/3"

BALL JOINT - control cable

1шт.

19

131-670

LOCK NUT,1/4"-28, GB

NUT - hex head, self-locking, 3/8" - 16 NC

1шт.

20

REF

INSTRUCTION

CABLE - transmission control, parts list Figure 6-06

1шт.

21

L115769

LEVER

- transmission control,without rub block

1шт.

22

L115765

PIVOT

- control lever, used with L 115769 lever

1шт.

23

L115768

BOLT

- special

1шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

25-148

JAM NUT,Jam, 1/2"-13, G5

JAM NUT - hex, 1/2"-13 NC

1шт.

26

L115771

BAR

- shift lever

1шт.

27

164-31

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 3/4"

SCREW - flat hex socket head, 1/4" - 20 NC x 3/4"

2шт.

28

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.
