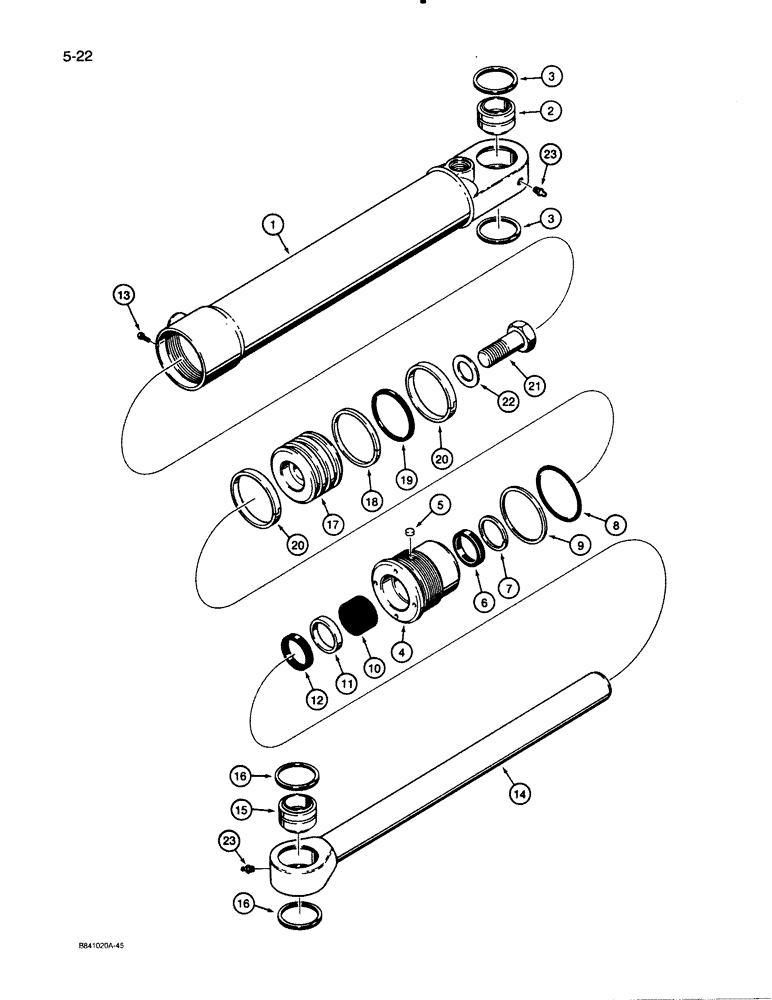

Запчасти Case W30 (5-22) - G106342 AND G106343 STEERING CYLINDERS (05) - STEERING

G106342

CYLINDER ASSY.

CYLINDER - right-hand, 3-1/4" (83 mm) ID x 15" (381 mm) stroke

1шт.

G106343

CYLINDER ASSY.

CYLINDER - left-hand, 3-1/4" (83 mm) ID x 15" (381 mm) stroke

1шт.

1

G106344

TUBE,3.25 mm DIA x 611.88 mm L

- G 106342 cylinder

1шт.

1

G106345

TUBE,3.25 mm DIA x 611.88 mm L

- G 106343 cylinder

1шт.

2

L12570

BUSHING

BEARING - self-aligning

1шт.

3

L12571

SNAP RING,#218, 2.321", Int, Spiral

- bearing

2шт.

G107671

GLAND

ASSEMBLY - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109417

1шт.

6

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option - extreme heat or cold

1шт.

7

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to item 6 in some glands

1шт.

Part of Seal Kit, P/N G109417

1шт.

8

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G109417

1шт.

9

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G109417

1шт.

10

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit, P/N G109417

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

12

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

Part of Seal Kit, P/N G109417

1шт.

13

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

14

G106347

ROD

ASSEMBLY - piston, 1-3/4" (44mm) diameter

1шт.

15

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

BEARING -self-aligning

1шт.

16

L12571

SNAP RING,#218, 2.321", Int, Spiral

- bearing retaining

2шт.

17

G100642

PISTON

- cylinder

1шт.

18

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N G109417

1шт.

19

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

- piston

1шт.

Part of Seal Kit, P/N G109417

1шт.

20

S109445

RING,82.55mm OD, Ext

- wear

2шт.

Part of Seal Kit, P/N G109417

1шт.

21

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

22

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - 1/8" NPT, straight

2шт.

G109417

GASKET KIT

KIT - seal, Includes: Ref. 6, 7, 8, 9, 10, 12, 18, 19, and 20

1шт.
