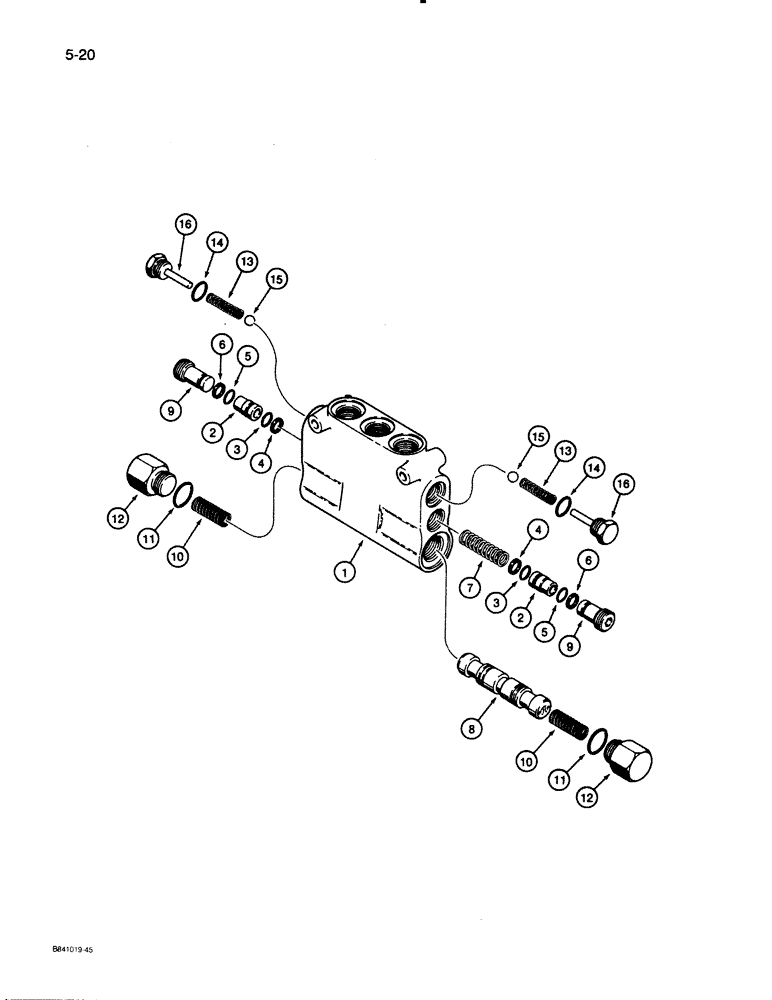

Запчасти Case W30 (5-20) - CUSHION VALVE (05) - STEERING

L109610

VALVE

ASSEMBLY - cushion, steering

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

N9165

SHUT-OFF VALVE

POPPET - valve

2шт.

3

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- poppet, inner

2шт.

4

T40181

RING

BACKUP RING - inner O-ring

2шт.

5

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- poppet, outer

2шт.

6

L30012

RING

BACKUP RING - outer O-ring

2шт.

7

N9163

SPRING

- compression, poppet

1шт.

8

N9166

SPOOL

ASSEMBLY - valve

1шт.

9

N9167

SEAT

- valve

2шт.

10

N9169

SPRING

- spool

2шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- end cap

2шт.

12

N9168

CAP

- end

2шт.

13

N9161

BOWL

- compression, ball

2шт.

15

211-212

BALL

- steel

2шт.

16

N9164

PLUG

ASSEMBLY - valve

2шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

2шт.
