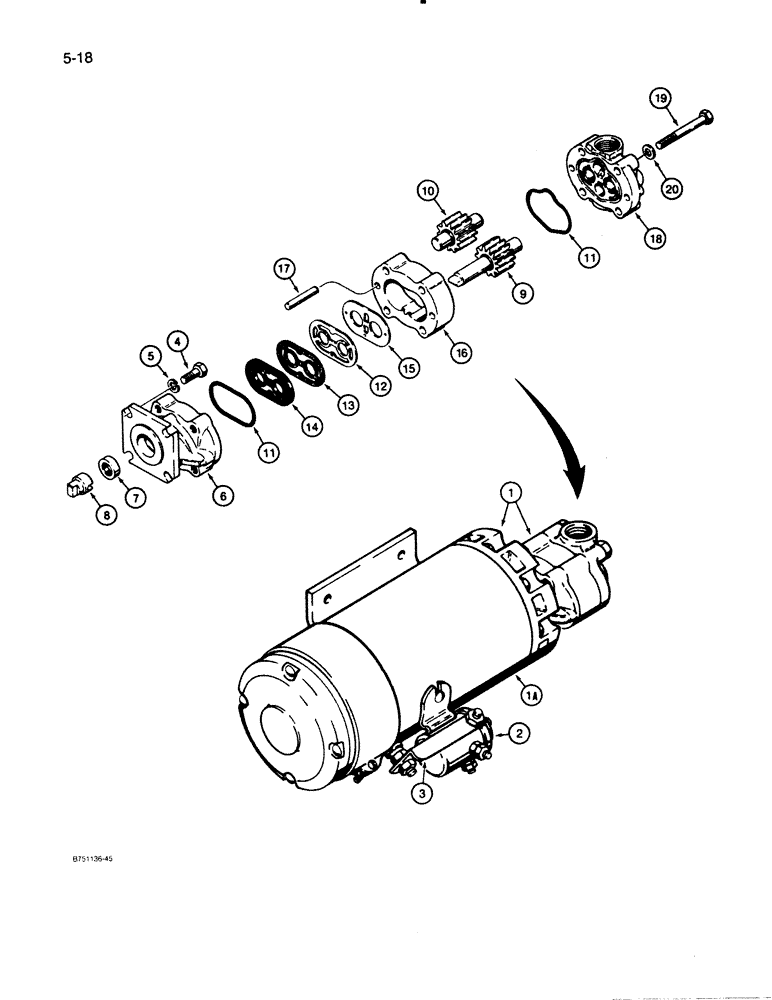

Запчасти Case W30 (5-18) - L116118 AUXILIARY STEERING PUMP AND MOTOR, MODELS WITH ZF TRANSMISSION (05) - STEERING

1

L116118

PUMP, HYDRAULIC

PUMP AND MOTOR - auxiliary steering

1шт.

1a

D71479

MOTOR, ELECTRIC

MOTOR - auxiliary steering, parts list Figure 4-80

1шт.

2

L115871

SOLENOID SWITCH

SOLENOID - electric motor

1шт.

3

D71481

CONNECTOR, ELEC

STRAP - solenoid mounting

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

5

92-5

LOCK WASHER,5/16"

4шт.

D71482

PUMP

ASSEMBLY - steering

1шт.

6

D71496

COVER

- front

1шт.

7

A52213

SEAL,12.7mm ID x 25.48mm OD x 6.35mm Thk

- front cover

1шт.

8

D71498

COUPLING

- pump drive

1шт.

9

D71497

PINION

DRIVE GEAR - pump

1шт.

10

N9276

GEAR

DRIVEN GEAR - pump

1шт.

11

N9277

O-RING

- seal

2шт.

12

N9281

LARGE PLATE

HEAT SHIELD - pump

1шт.

13

N9282

GASKET

- pump

1шт.

14

N9283

SEAL

- V-type

1шт.

15

N9280

LARGE PLATE

WEAR PLATE - pump

1шт.

16

N9278

HOUSING

SECTION - center

1шт.

17

F53109

DOWEL

PIN - pump

2шт.

18

N9275

COVER

- back

1шт.

19

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.
