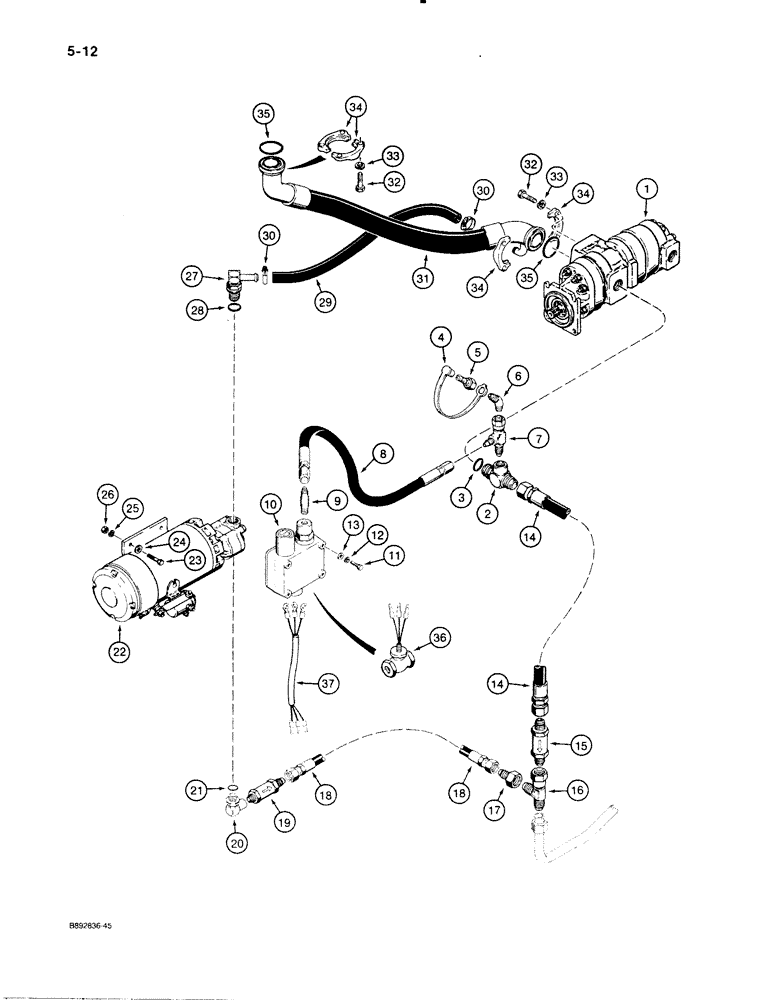

Запчасти Case W30 (5-12) - HYDRAULIC CIRCUIT, AUTOMATIC AUXILIARY STEERING, MODELS WITH ZF TRANSMISSION (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic and steering, for correct assembly

1шт.

and components, see Figure 8-38

1шт.

2

L53125

TEE

- 3/4 inch fem PT branch x 1-5/16-12 adj O-ring x flare

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

4

H434163

DUST CAP

CAP - dust

1шт.

5

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect

1шт.

6

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 45 degree, 1-1/16-12 flare x 3/4 inch PT

1шт.

7

218-5475

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 1/2"-20 Br

- 1/2-20 flare branch x 1-1/16-12 inch fl x adj str thread

1шт.

if used

1шт.

8

L126889

HOSE ASSY.

HOSE - tee to pressure switch, 30 inch (762 mm) long, if used

1шт.

9

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT, if used

1шт.

10

L126826

IGNITION SWITCH

SWITCH - pressure, auxiliary steering, see Figure 4-22 for

1шт.

wiring, see ref 37 L126893 harness below, if used

1шт.

11

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, if used

4шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

4шт.

13

495-11028

WASHER,1/4", SAE

If used 1/4", SAE

4шт.

14

L126362

HOSE ASSY.

HOSE - hydraulic supply, 19-1/2 inch (495 mm) long

1шт.

15

L59608

LOCK VALVE

VALVE - check, steering supply

1шт.

Ref #15 - This is a one way valve that provides oil flow out of the steering system when the Aux. steering pump is on.)

1шт.

16

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- 1-5/16-12 inch fl br x flare x fem str thread

1шт.

17

218-1700

REDUCER,37 Degree, 1 5/16"-12, Fem x 3/4"-16 Male

- 1-5/16-12 flare x 3/4-16 inch flare

1шт.

18

L126364

HOSE,0.50" ID x 43.00", SAE 100R2

Pressure to Auxilary Steering Pump 0.50" ID x 43.00", SAE 100R2

1шт.

19

L70819

VALVE

- check, auxiliary steering

1шт.

20

218-5460

FITTING

ELBOW - 90 degree, 3/4-16 adj O-ring x 1/2 inch fem PT

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

L116118

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary steering, parts list Figure 5-18

1шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

24

495-21044

WASHER,3/8"

4шт.

25

492-11038

LOCK WASHER,3/8"

4шт.

26

425-106

NUT,3/8"-16, Cl 5

4шт.

27

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

90°, Aux pump to suction hose

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

L110237

HOSE,15.7 mm ID x 1193.80 mm, SAE 100R6

Aux Steering Pump Return 15.7 mm ID x 1193.80 mm, SAE 100R6

1шт.

30

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

31

L126358

HOSE ASSY.

HOSE - suction, Serial Range: pump-reservoir

1шт.

32

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

34

A14141

FLANGE

- split, suction hose

4шт.

35

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- split flange

2шт.

36

L113437

SWITCH

- flow, auxiliary steering, if used, see Figure 4-22

1шт.

for wiring, see Figure 8-12 for hydraulic oil cooler circuit

1шт.

37

L126893

HARNESS

- used with ref 10 L126826 pressure switch, if used

1шт.
