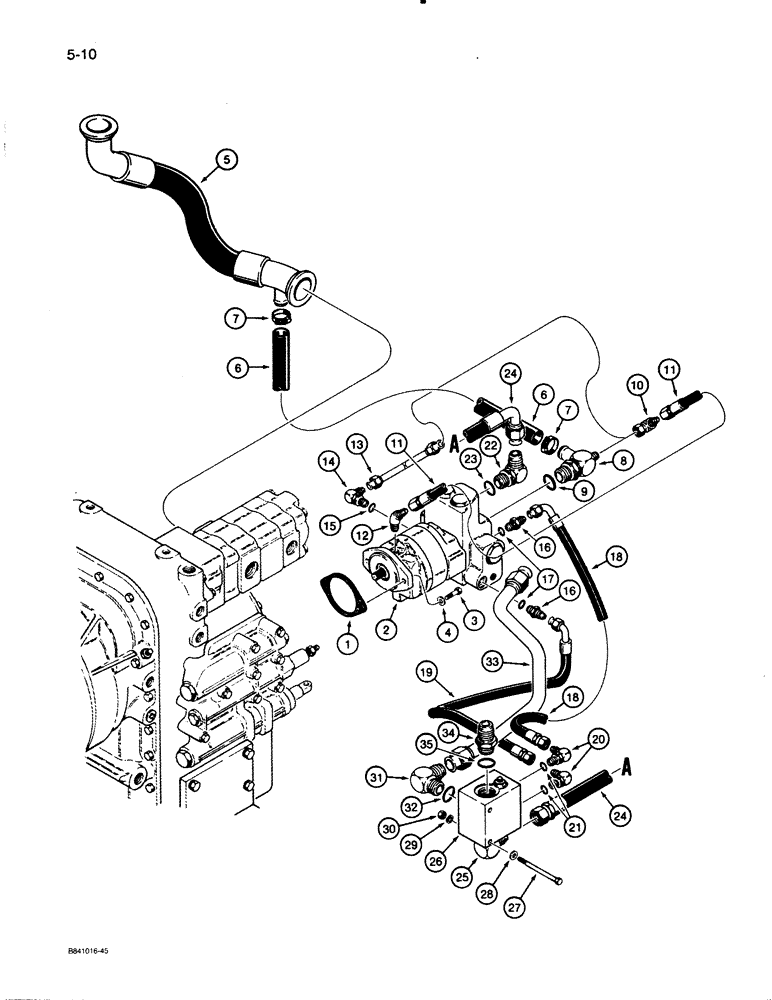

Запчасти Case W30 (5-10) - HYDRAULIC CIRCUIT, AUXILIARY STEERING, MODELS WITH ALLISON TRANSMISSION (05) - STEERING

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - Allison, for correct assembly and components, see Figures 6-14 through 6-34

1шт.

1

A58617

GASKET

- pump

1шт.

2

L106442

PUMP

- auxiliary steering, parts list Figure 5-14

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

5

L107230

HOSE ASSY.

HOSE - suction

1шт.

6

R29835

HOSE

- suction, 1" (25 mm) ID x 23-1/2" (597 mm) long

1шт.

7

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2шт.

8

L107215

TEE

- special

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

10

218-841

TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Br

- drain tube

1шт.

11

L114139

HOSE,0.25" ID x 17.00", SAE 100R1 Type A

Pump Vent 0.25" ID x 17.00", SAE 100R1 Type A

1шт.

12

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree

1шт.

13

L114137

TUBE,0.25" OD x 3.78, 3.78" L

- drain

1шт.

14

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree

1шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- elbow

1шт.

16

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight

2шт.

17

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- adapter

1шт.

18

L107213

HOSE ASSY.

HOSE - auxiliary steering

1шт.

19

L107212

HOSE ASSY.

HOSE - auxiliary steering

1шт.

20

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree

2шт.

21

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- elbow

1шт.

22

L114091

FITTING

ELBOW - 90 degree, special

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

24

L107211

HOSE ASSY.

HOSE - supply, auxiliary steering

1шт.

25

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

part of L114148 check valve, parts list Figure 5-16 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

26

L114148

CHECK VALVE

VALVE - check, steering, parts list Figure 5-16

1шт.

27

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex head, 3/8" - 16 NC x 4-1/4"

2шт.

28

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

31

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

33

L107234

TUBE ASSY.,25.4 mm OD

TUBE - flow control valve

1шт.

34

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.
