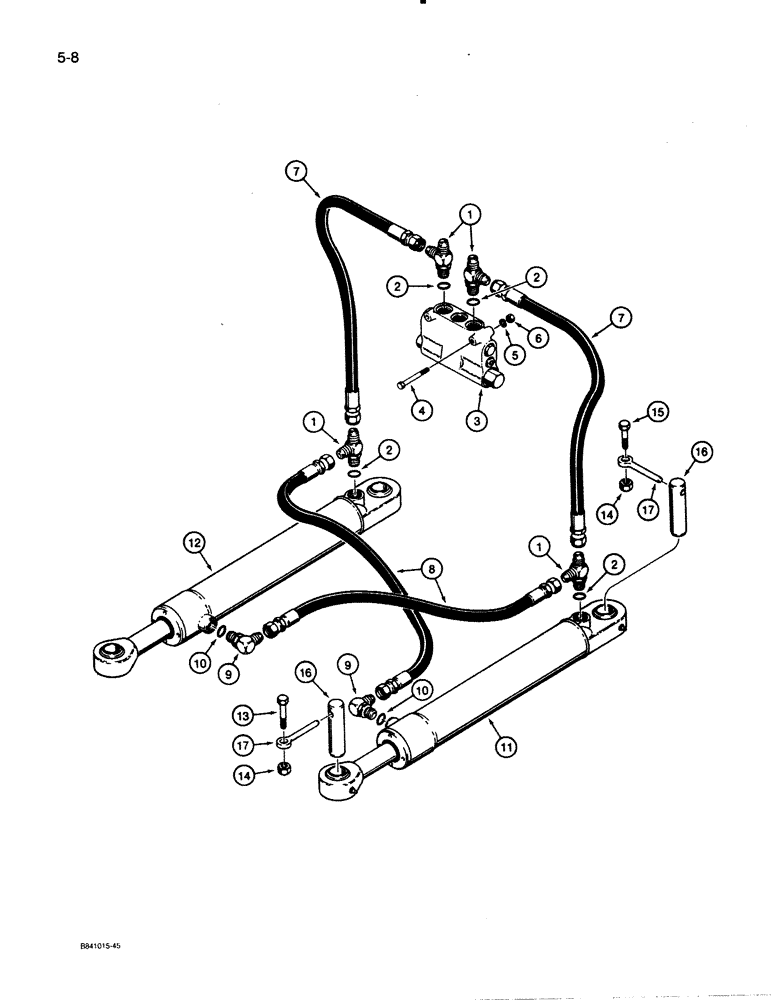

Запчасти Case W30 (5-08) - STEERING HYDRAULIC CIRCUIT, CUSHION VALVE TO STEERING CYLINDERS (05) - STEERING

1

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- cushion valve

4шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

3

L109610

VALVE

- cushion, steering, parts list Figure 5-20

1шт.

4

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

7

L53348

HOSE,0.50" ID x 27.00"

Steering Cylinder 0.50" ID x 27.00"

2шт.

8

37405

HOSE

- steering cylinder crossover

2шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

11

G106342

CYLINDER ASSY.

CYLINDER - right-hand steering, parts list Figure 5-22

1шт.

12

G106343

CYLINDER ASSY.

CYLINDER - left-hand steering, parts list Figure 5-22

1шт.

13

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

2шт.

14

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

4шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

2шт.

16

L107168

PIN

- steering cylinder

4шт.

17

R17756

ROD,12.7mm OD x 109.54mm L

- pin retainer

4шт.
