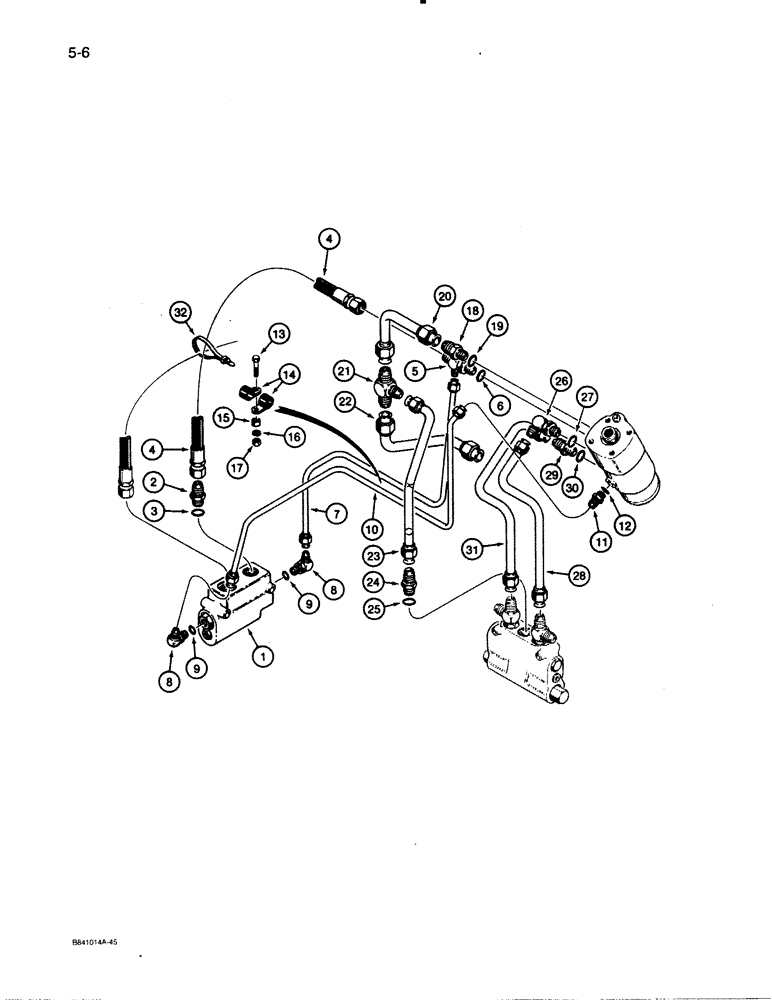

Запчасти Case W30 (5-06) - STEERING HYDRAULIC CIRCUIT, FROM STEERING VALVE (05) - STEERING

1

L106609

VALVE

- flow control, parts list Figure 8-42

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, supply hose 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

S11230

HOSE

- steering supply

1шт.

5

L105845

TEE

- special

1шт.

7

L110011

TUBE,6.35" OD

- steering pilot pressure

1шт.

8

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree

2шт.

9

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- elbow

1шт.

10

L110009

TUBE,6.35 mm OD

- steering

1шт.

11

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - steering tube

1шт.

12

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- adapter

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

14

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

2шт.

15

D52279

BUSHING

SPACER - tube

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

18

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - steering return tube

1шт.

20

L60695

TUBE,19.05" OD x 142.4, 122.9" L

- steering return,lower

1шт.

21

218-1580

TEE,37º, 1 1/16"-12 x 7/8"-14, Br

- steering return

1шт.

22

L60693

TUBE,19.05" OD

- steering return, lower

1шт.

23

L60691

TUBE,15.88" OD

- cushion valve return

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - return tube

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

26

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree

1шт.

28

L60667

TUBE,15.88" OD

- steering valve to cushion valve

1шт.

29

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , steering supply tube 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

31

L60669

TUBE,15.88" OD

- steering supply tube

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, tee

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
