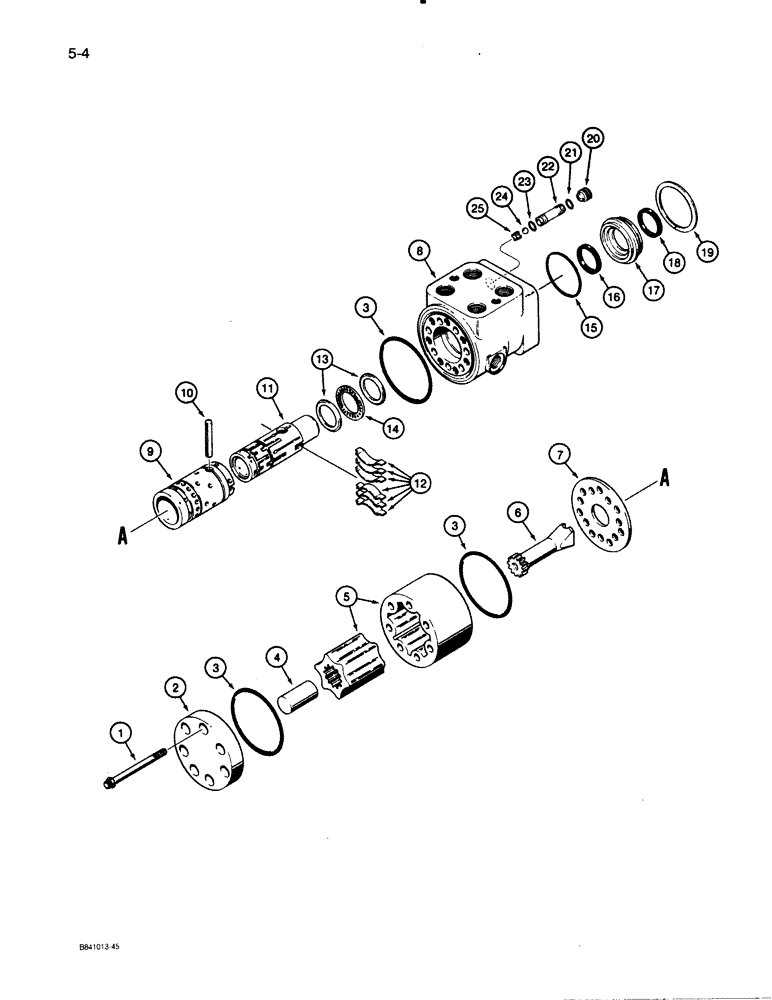

Запчасти Case W30 (5-04) - STEERING VALVE (05) - STEERING

L104161

PUMP

VALVE ASSEMBLY - steering

1шт.

1

D51217

BOLT,5/16" x 3 1/2"

- 12 pt. head, 5/16" - 24 NF x 3-1/2"

7шт.

2

D82809

COVER

CAP - end

1шт.

3

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

SEAL - cap

3шт.

4

D83220

SPACER

- gear set

1шт.

5

D83219

ROTOR

GEROTOR SET - valve

1шт.

6

L30878

DRIVE SHAFT

SHAFT - drive

1шт.

7

S113037

PLATE

- spacer

1шт.

D82807

CONTROL

ASSEMBLY - valve

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

9

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

10

L30888

PIN

- centering

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - valve control

1шт.

N14250

KIT

- centering spring

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - centering

6шт.

13

D82804

RACE

THRUST WASHER - bearing

2шт.

14

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle

1шт.

15

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - O-ring

1шт.

16

A72029

RING

SEAL - quad ring

1шт.

17

S110170

BUSHING

- seal

1шт.

18

A28211

OIL SEAL

OIL SEAL - bushing

1шт.

19

S110169

WASHER

SNAP RING - bushing

1шт.

20

D82805

SET SCREW

SET SCREW - special

1шт.

21

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

SEAL - O-ring

1шт.

22

D82806

VALVE SEAT

SPOOL - valve

1шт.

23

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL - O-ring, 7/16 x 5/16 x 1/16 in

1шт.

24

211-9

BALL,5/16" Dia

- check

1шт.

25

L35368

RETAINER

- ball

1шт.
