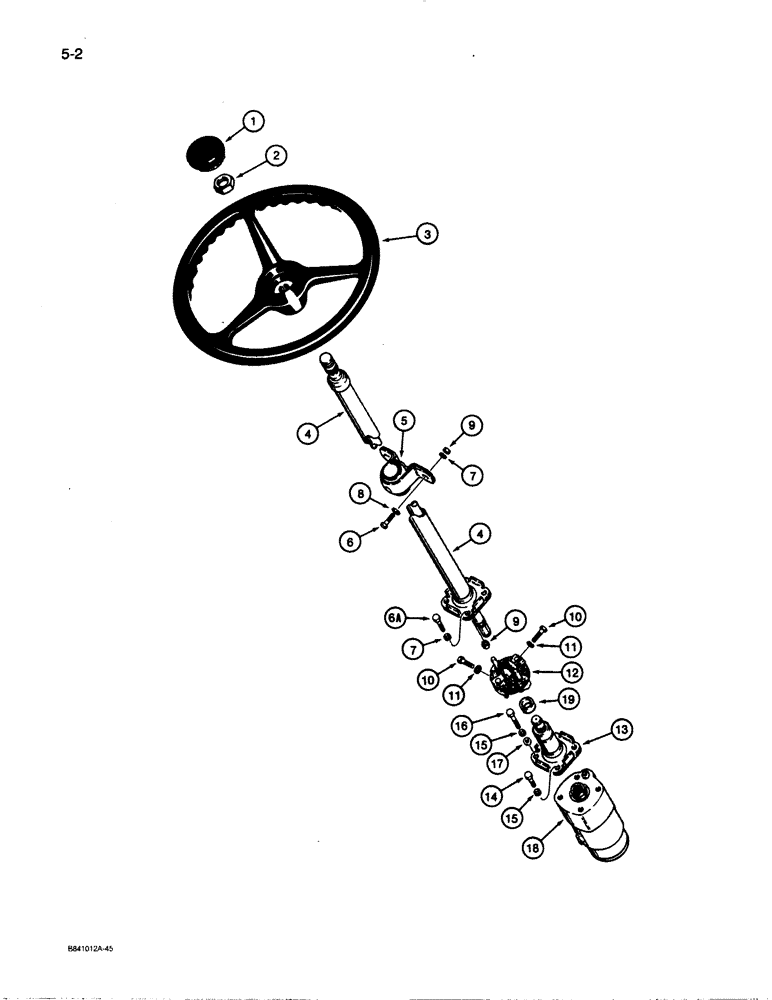

Запчасти Case W30 (5-02) - STEERING CONTROL PARTS (05) - STEERING

1

L114276

CAP

- steering wheel

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel retaining

1шт.

3

L74518

WHEEL

STEERING WHEEL - tractor

1шт.

4

L105153

STEERING SHAFT

COLUMN - upper

1шт.

5

L105044

BEARING

- steering column support

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

9

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

10

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex head, 3/8" - 24NF X 1-1/4"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

L100096

ISOLATOR

COUPLING - isolator

1шт.

13

L100706

CAP

COLUMN - lower

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

18

L104161

PUMP

VALVE ASSEMBLY - steering, parts list Figure 5-04

1шт.

19

L117836

SPACER

- shaft

1шт.
