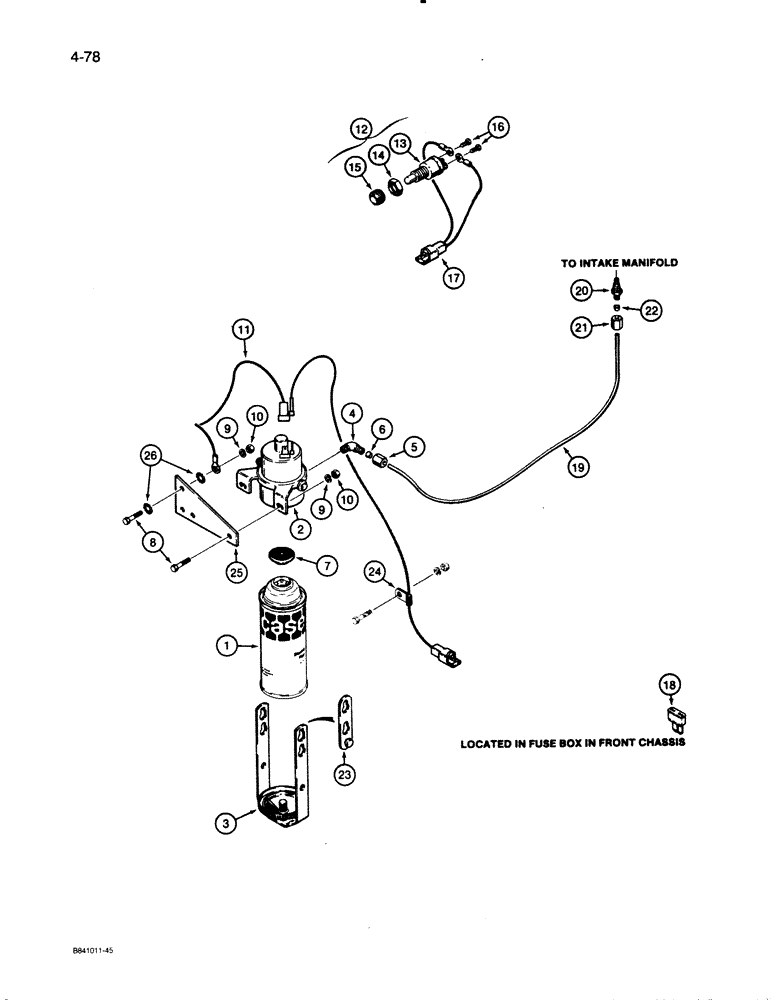

Запчасти Case W30 (4-78) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

B17072

START SPRAY FLUID

CONTAINER - ether

1шт.

L73025

STARTING MOTOR

SOLENOID ASSEMBLY - 24V

1шт.

2

NSS

NOT SOLD SEPARAT

SOLENOID - cold start

1шт.

3

D77648

BAIL

- container

1шт.

A44809

FITTING

- compression, 90 degree

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

5

222-110

TUBE NUT,3/8"-24

COMPRESSION NUT - fitting

1шт.

6

222-100

TUBE NUT,1/8" Tube

SLEEVE - fitting

1шт.

7

R30786

GASKET

- solenoid

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

11

L114172

HARNESS

WIRE - jumper

1шт.

12

L72776

SWITCH

- push button

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

14

D73741

NUT

- hex, special

1шт.

15

H275784

JAM NUT

- special

1шт.

16

173-93

BOLT,Sl Rnd Hd, #10 - 24 x 1/4"

SCREW - round head, No. 10 - 32 NF x 1/4"

2шт.

17

L115041

CABLE

WIRE - jumper

1шт.

18

A149800

FUSE,10 Amp

- 10 amp

1шт.

19

D41013

TUBE

- nylon, 18" (457 mm) long

1шт.

L73024

NOZZLE CAP

NOZZLE ASSEMBLY - cold start

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

21

222-110

TUBE NUT,3/8"-24

COMPRESSION NUT - nozzle

1шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE - nozzle

1шт.

23

R30812

LINK

- bail

2шт.

24

D43839

CLAMP

- wire

2шт.

25

L71626

COVER PLATE

PLATE - cold start mounting

1шт.

26

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.
