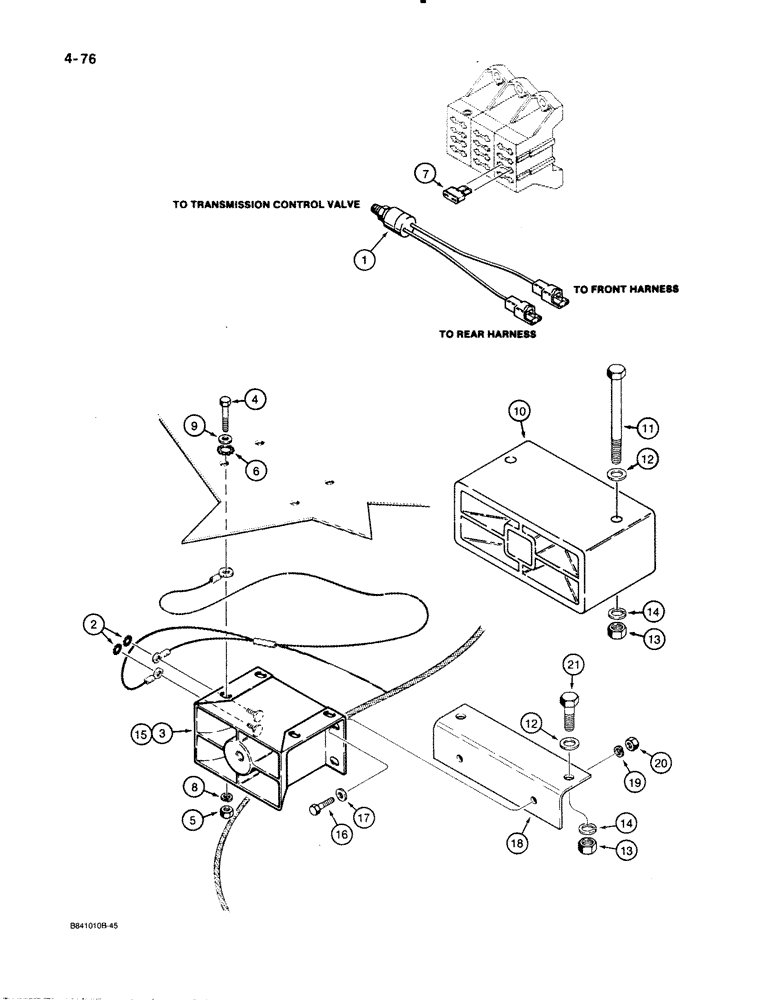

Запчасти Case W30 (4-76) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

L112588

SWITCH

- backup alarm, used with Allison transmission

1шт.

Ref #1 - The W30 with the ZF Transmission does not use a backup alarm sender. The ZF is an electric shift type and the sender is built into the transmission central valve harness.

1шт.

2

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - external-internal tooth lock, No. 8

2шт.

3

L109087

HOUSING

ALARM ASSEMBLY - backup, uses 5/16" hardware, no longer used

1шт.

order D121972 alarm, item 15 below

1шт.

4

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4", if used

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, if used

4шт.

6

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - external tooth lock, 5/16", if used

1шт.

7

A149796

FUSE

- 3 amp

1шт.

8

92-5

LOCK WASHER,5/16"

if used 5/16"

4шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", if used

4шт.

10

L116668

ALARM

ASSEMBLY - backup, uses 3/8" hardware, no longer used, order D121972 alarm, L126814 bracket, (2) 413-620 bolts, (2) 113-9 bolts

1шт.

(2) 25707R1 washers, (2) 192-19 washers and (2) 425-104 nuts

1шт.

11

113-240

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex head, 3/8 NC x 4-1/4 inch, used with L116668 alarm

2шт.

12

195-104

WASHER,3/8"

- flat, , used with L116668 alarm 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used with L116668 alarm 3/8"-16, G5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used with L116668 alarm 3/8"

2шт.

15

D121972

ALARM

ASSEMBLY - backup, uses 1/4 or 5/16 inch hardware

1шт.

16

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 1-1/4 inch, if used

2шт.

17

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 1/4 inch, if used

2шт.

18

L126814

BRACKET

- mounting, backup alarm, if used

1шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

2шт.

20

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, if used

2шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, if used

2шт.
