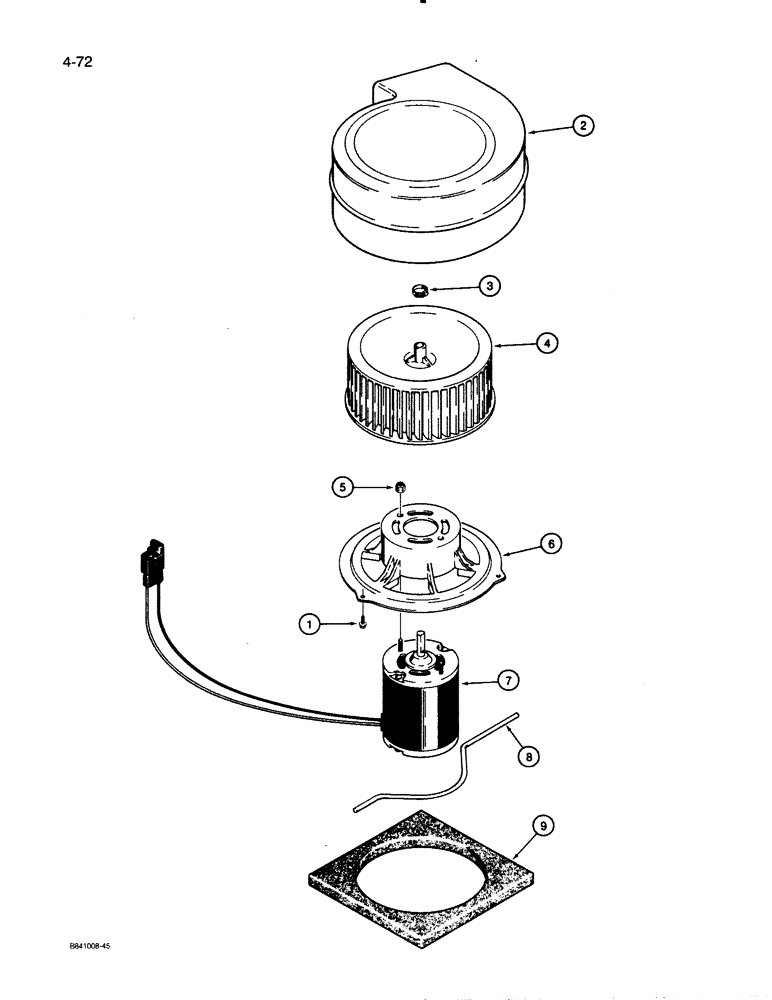

Запчасти Case W30 (4-72) - DEFROSTER (04) - ELECTRICAL SYSTEMS

NSS

NOT SOLD SEPARAT

DEFROSTER - cab, production part No. F97106, no longer available, order components below

1шт.

1

187-1303

SELF-TAP SCREW,Hex Hd, #6 x 3/8"

SCREW - hex head, self-tapping, No. 6 - 32 NC x 3/8"

3шт.

Ref #1 - Use 187-1095

1шт.

2

F45101

HOUSING

- defroster

1шт.

3

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- fan #4, 0.25/0.62 Type F Worm

1шт.

4

F45102

FAN

- defroster

1шт.

5

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 - 32 NF

2шт.

6

F45022

BRACKET

MOUNT - defroster

1шт.

7

F96790

MOTOR, ELECTRIC

MOTOR - 24V

1шт.

8

L112593

ROD

- defroster retaining

1шт.

9

L108631

SEAL

- foam

1шт.
