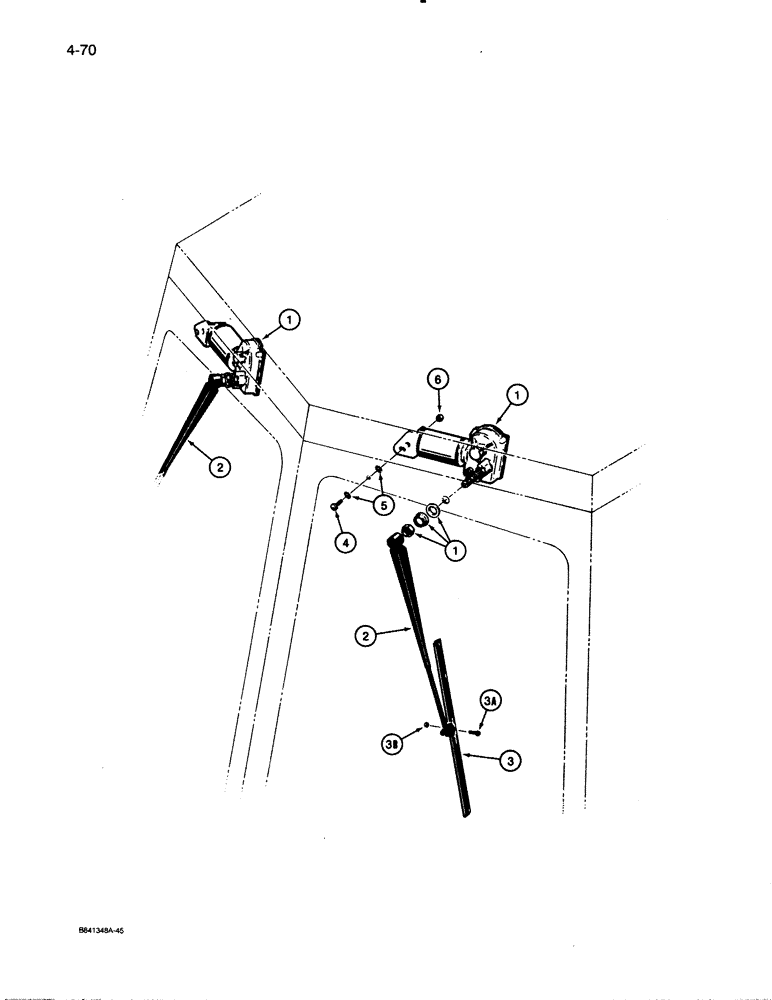

Запчасти Case W30 (4-70) - REAR WIPER (04) - ELECTRICAL SYSTEMS

1

L112536

MOTOR, ELECTRIC

MOTOR - rear wiper

2шт.

2

T41946

ARM

- rear wiper

2шт.

3

L112540

WIPER

BLADE - rear wiper

2шт.

3a

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - pan head slotted, No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

3b

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

4

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, No. 10 - 24 NC x 1/2"

2шт.

5

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

2шт.
