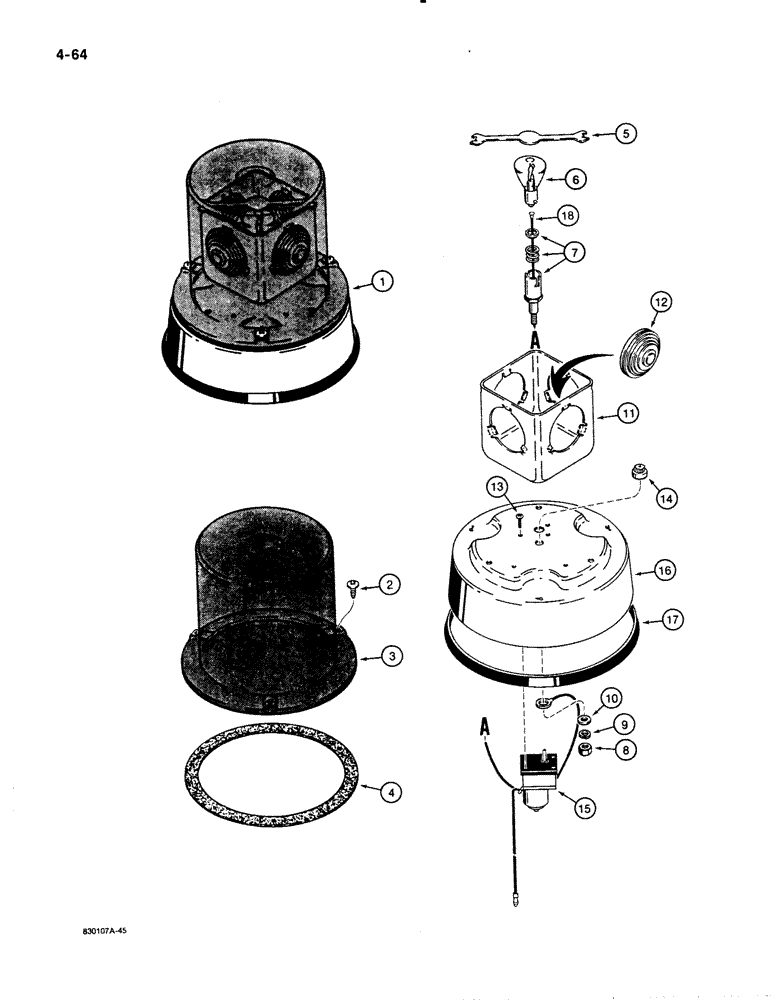

Запчасти Case W30 (4-64) - L110648 ROTATING BEACON (04) - ELECTRICAL SYSTEMS

1

L110648

LAMP

ROTATING BEACON ASSEMBLY - 360 degree, 24 V, amber lens, Signal Stat No. 378Y106, no longer used, order A187528 beacon and L127770 jumper wire, see Figure 4-66

1шт.

2

187-39

SELF-TAP SCREW,Rd Hd, #12 x 5/8"

SCREW - sheet metal, No. 12 x 5/8"

3шт.

3

N8426

LENS

DOME - rotating beacon

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - dome

1шт.

5

NSS

NOT SOLD SEPARAT

STRAP - basket

1шт.

6

N8424

BULB

- 24 volt

1шт.

7

N8430

SOCKET

ASSEMBLY - beacon

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

195-103

WASHER,5/16"

- flat, 5/16"

1шт.

11

NSS

NOT SOLD SEPARAT

BASKET - less lenses

1шт.

12

N8423

GASKET

LENS - beacon

4шт.

13

182-47

SCREW,Sl Pan Hd, #6 - 32 x 5/8"

MACHINE SCREW - pan head slotted, No. 6 - 32 NC x 5/8"

3шт.

14

NSS

NOT SOLD SEPARAT

GEAR - beacon

1шт.

15

N8425

MOTOR, ELECTRIC

MOTOR - beacon

1шт.

16

NSS

NOT SOLD SEPARAT

BASE - beacon

1шт.

17

N8422

GASKET

- base

1шт.

18

NSS

NOT SOLD SEPARAT

WIRE - jumper

1шт.
