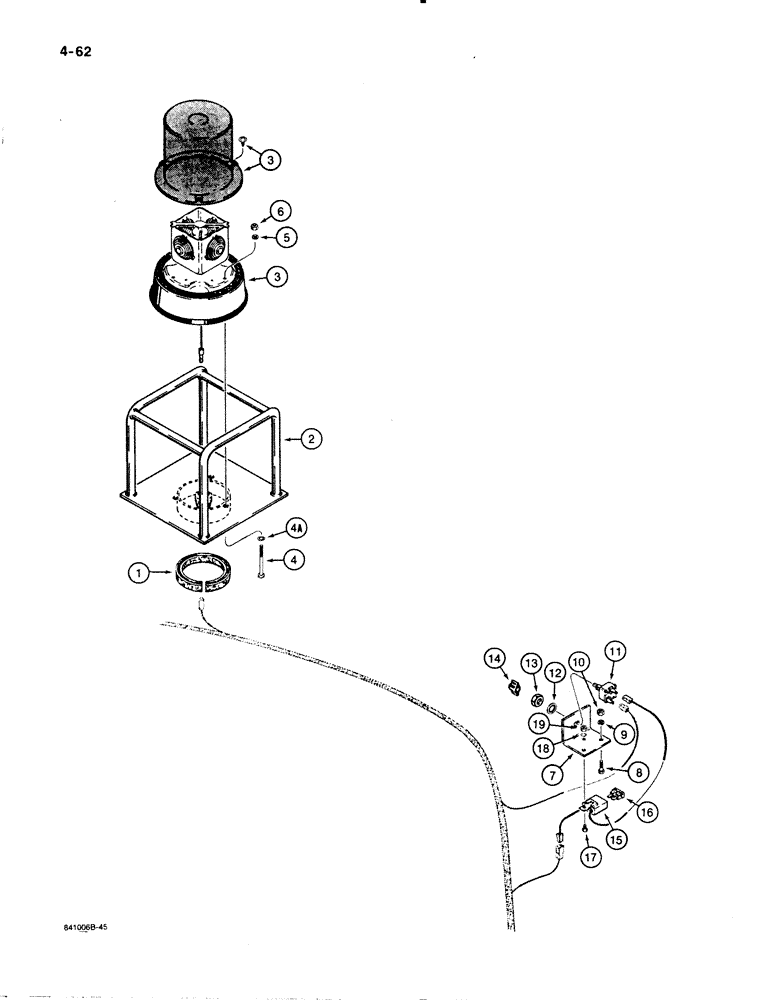

Запчасти Case W30 (4-62) - ROTATING BEACON (04) - ELECTRICAL SYSTEMS

1

L109042

GASKET

TRIM - 12-3/4" (350 mm) long, used on models with cab or canopy

1шт.

2

L114301

CAGE

- beacon, no longer used, order L127768 cage, used on models with cab or canopy

1шт.

2

L127768

CAGE

- beacon, used on models with cab or canopy

1шт.

3

L110648

LAMP

BEACON ASSEMBLY - rotating, 360 degree, amber lens, parts list Figure 4-64, no longer used, order A187528 beacon and L127770, used on models with cab or canopy

1шт.

jumper wire, see Figure 4-66, used on models with cab or canopy

1шт.

3

A187528

LIGHT ASSY.

BEACON ASSEMBLY - rotating, 360 degree, amber lens, not shown,, used on models with cab or canopy

1шт.

parts list Figure 4-66, used on models with cab or canopy

1шт.

4

173-111

SCREW,Sl Rnd Hd, #10 - 24 x 3"

MACHINE SCREW - round head slotted, No. 10 NC x 3 inch,, used on models with cab or canopy

1шт.

used with L110648 beacon only, used on models with cab or canopy

3шт.

4a

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Used on models with cab or canopy Ext-Int Tooth, #10

1шт.

used with L110648 beacon only, used on models with cab or canopy

3шт.

5

92-3

LOCK WASHER,#10

WASHER, LOCK, , Used with L110648 beacon only, used on models with cab or canopy #10

3шт.

6

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC, used with L110648 beacon only, used on models with cab or canopy

3шт.

7

L114146

BRACKET

- beacon switch mounting, used on models with canopy only

1шт.

8

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Used on models with canopy only Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used on models with canopy only 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

Used on models with canopy only 1/4"-20, G5

2шт.

11

L70872

SWITCH

- beacon, used on models with canopy only

1шт.

12

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - internal tooth lock, 7/16", used on models with canopy only

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- special, used on models with canopy only

1шт.

14

L74694

KNOB

- beacon switch, used on models with canopy only

1шт.

15

L107649

HARNESS

BLOCK - fuse assembly, used on models with canopy only

1шт.

16

A149799

FUSE

- 7.5 amp, used on models with canopy only

1шт.

17

182-46

SCREW,Sl Pan Hd, #6 - 32 x 1/2"

MACHINE SCREW - pan head slotted, No. 6 - 32 NC x 1/2", used on models with canopy only

1шт.

18

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, , Used on models with canopy only Ext Tooth, #6

1шт.

19

129-5

NUT,#6-32

Used on models with canopy only #6-32

1шт.
