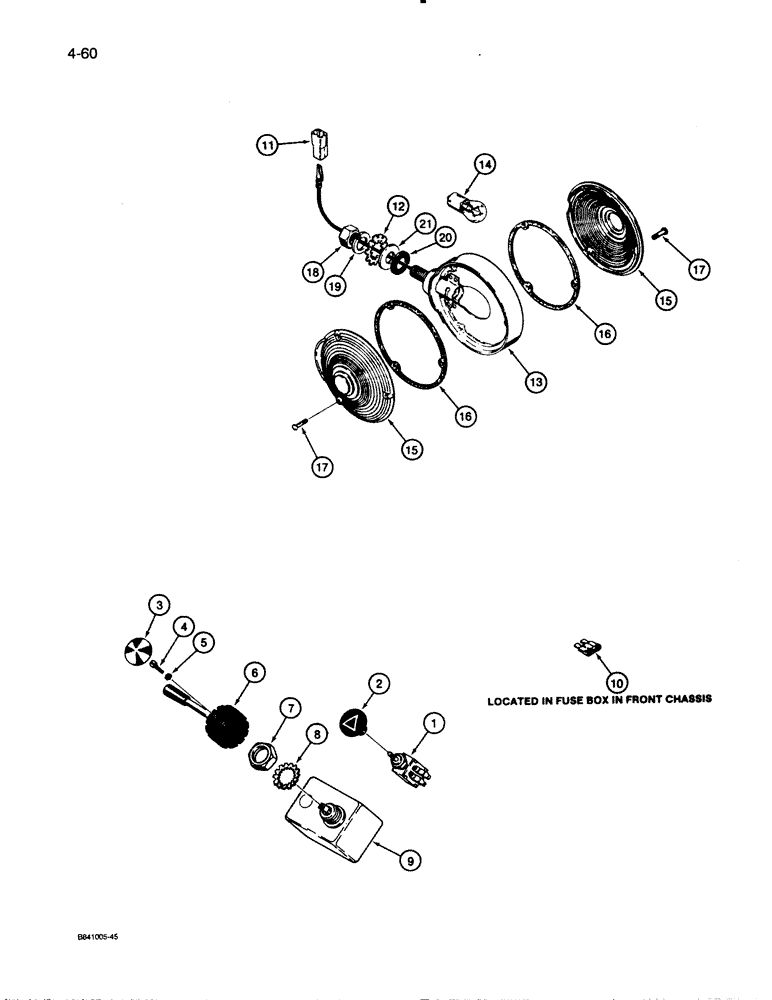

Запчасти Case W30 (4-60) - TURN SIGNAL AND FLASHER LAMP (04) - ELECTRICAL SYSTEMS

1

D74330

SWITCH

- flasher

1шт.

2

D88134

KNOB

- flasher

1шт.

3

A160035

PLATE

- flasher switch

1шт.

4

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - pan head slotted, No. 5 - 40 NC x 1/2"

1шт.

5

193-3

LOCK WASHER,Int Tooth, #5

WASHER - external tooth lock, No. 5

1шт.

6

A141736

KNOB

- turn signal

1шт.

7

D91352

JAM NUT

- special

1шт.

8

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external-internal tooth lock, 3/4"

1шт.

9

L127265

SWITCH

- turn signal

1шт.

10

A149799

FUSE

- 7.5 amp

1шт.

11

223-166

CONNECTOR, ELEC

CONNECTOR - electrical female

2шт.

12

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

L114187

SUPPORT

LAMP - turn signal and flasher

2шт.

13

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

14

L32257

BULB

- lamp, No. 307

1шт.

L32214

LENS

KIT - lamp, flasher

2шт.

15

NSS

NOT SOLD SEPARAT

LENS - lamp

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

17

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- No. 6 - 32 NC x 5/8"

3шт.

18

129-125

NUT,1/2"-20, G5

1шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

20

L32256

WASHER

- rubber

1шт.

21

195-106

WASHER,1/2"

- flat, 1/2"

1шт.
