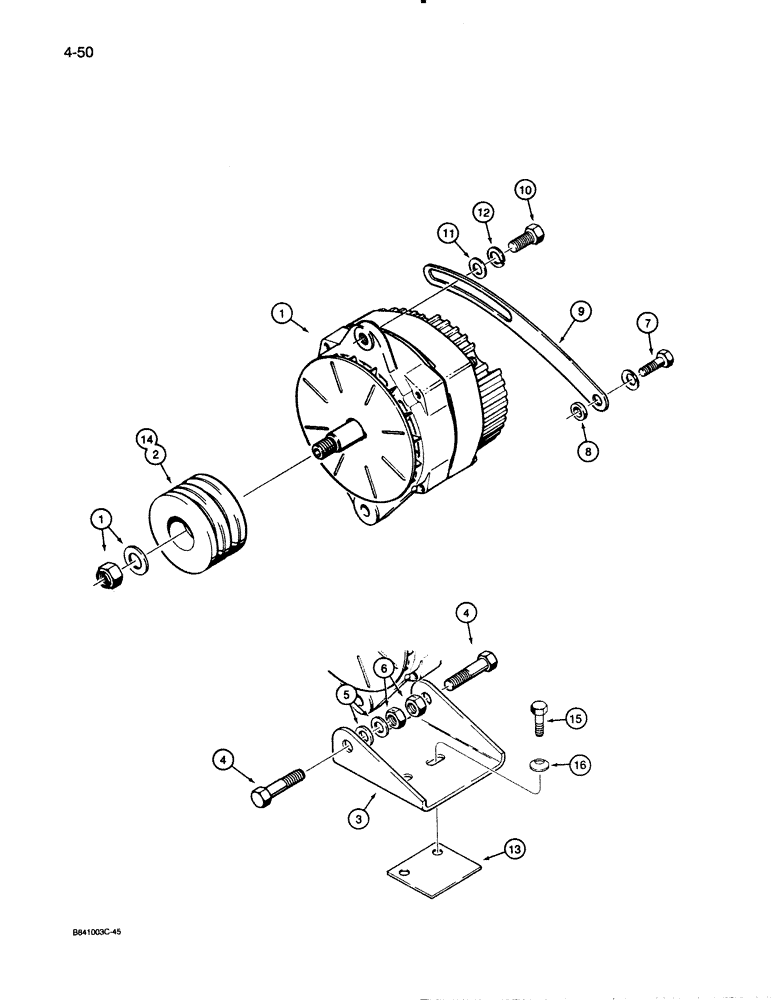

Запчасти Case W30 (4-50) - ELECTRICAL SYSTEM, 65 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

L114250

ALTERNATOR - 24V, 65 amp, Delco-Remy No. 1105474, parts list Figure 4-06

1шт.

2

L110627

PULLEY

- alternator, used with L105945 instrument cluster which has no colored dot on tachometer face, for another pulley

1шт.

see item 14 below

1шт.

3

L106580

SUPPORT

BRACKET - mount

1шт.

4

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

R24323

WASHER

- flat, 1/2"

2шт.

6

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

T34907

SPACER

- bolt

1шт.

9

L116885

STRAP

- adjusting

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

11

R24323

WASHER

- flat, 1/2"

1шт.

12

92-8

LOCK WASHER,1/2"

1шт.

13

L108412

SPACER

- alternator bracket

1шт.

14

L118460

PULLEY

- alternator, used with L116014 instrument cluster which has a bright green dot on tachometer face, for another pulley see item 2 above

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

L105055

WASHER

- special

2шт.
