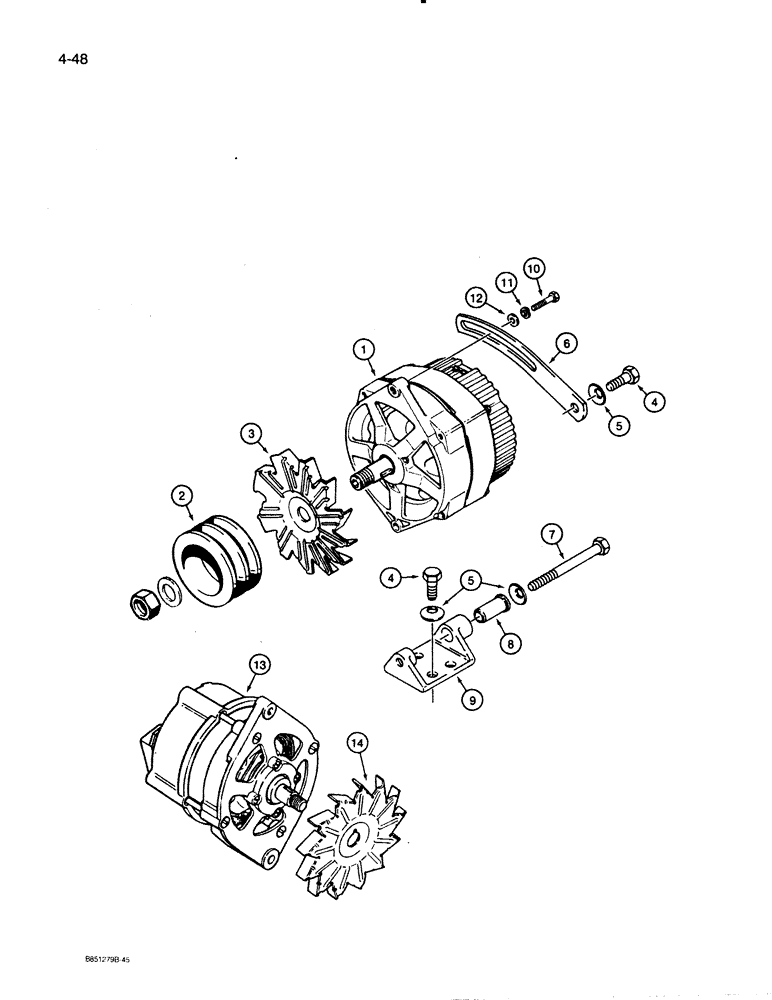

Запчасти Case W30 (4-48) - ELECTRICAL SYSTEM, 40 AND 45 AMP ALTERNATORS AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

A167152

ALTERNATOR

ALTERNATOR - 24 V, 40 amp, Delco Remy No. 1105510 , parts list Figure 4-04

1шт.

1

104260A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 24 volt 40 ampere,

1шт.

1

104260A1C

CORE-ALTERNATOR

Return Number

1шт.

2

L59716

PULLEY

PULLEY - alternator, used with A167152 alternator

1шт.

3

A43384

FAN

FAN - alternator, used with A167152 alternator

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

5

L105055

WASHER

WASHER - special

5шт.

6

A145326

STRAP

STRAP - adjusting

1шт.

7

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - Hex, M10 x 100, 8.8

1шт.

8

J902469

SPACER

SPACER - bolt

1шт.

9

L114531

BRACKET

MOUNT - alternator

1шт.

10

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex head, 8 mm - 1.25 x 25 mm (8.8)

1шт.

11

892-1108

LOCK WASHER,M8

LOCK WASHER, M8

1шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - flat, 5/16"

1шт.

13

A186124

ALTERNATOR

ALTERNATOR - 24 V, 45 amp, Bosch No. 120402296, type K1-28V 3/45A, parts list Figure 4-02

1шт.

L118459

PULLEY

used with A186124 alternator

1шт.

14

221425R1

FAN

FAN - alternator, used with A186124 alternator

1шт.
