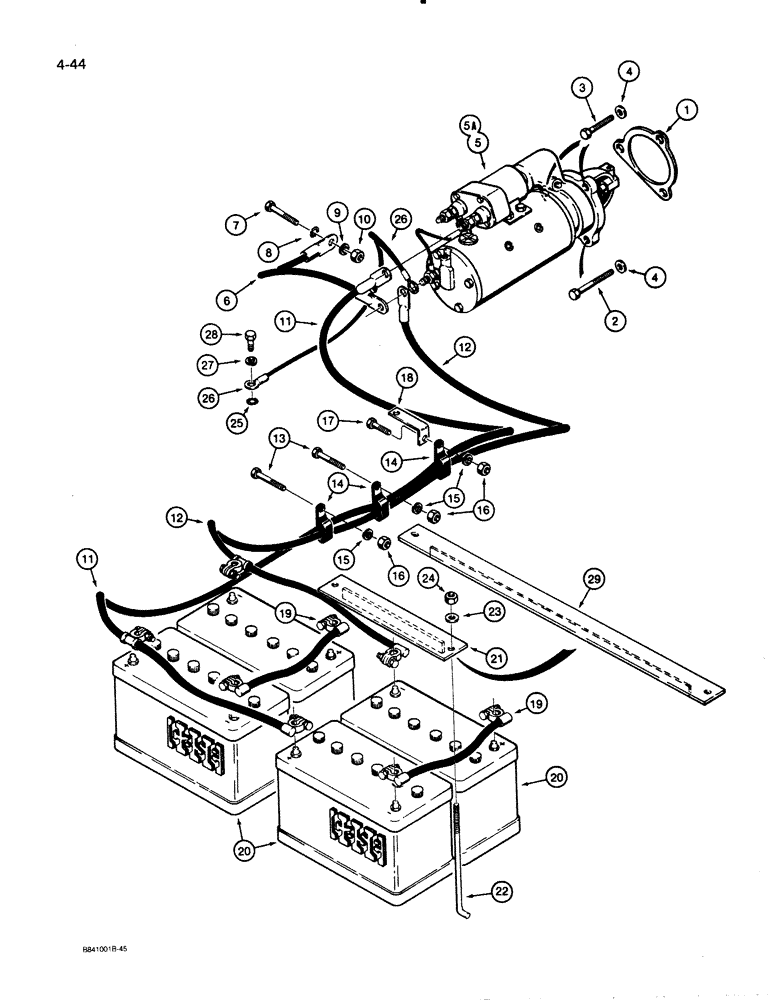

Запчасти Case W30 (4-44) - ELECTRICAL SYSTEM, BATTERY, STARTER, AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

A27933

GASKET

GASKET - starting motor

1шт.

2

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

BOLT, Hex, 1/2"-13 x 3 1/4", G5

1шт.

3

L113217

BOLT

BOLT - special, with sealing ring, if used

2шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

BOLT, , If used Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

4

R24323

WASHER

WASHER - special, 1/2"

3шт.

5

R45968

STARTER MOTOR

STARTER - Delco No. 1114872, parts list Figures 4-08 and 4-10

1шт.

if used

1шт.

5a

L118276

STARTING MOTOR

STARTER - Delco No. 1993797, parts list Figure 4-12, if used

1шт.

Ref #5 & #5A - Both batteries are sealed type for wet sump application.

1шт.

5a

87454648

REMAN-STARTER

Remanufactured STARTER - For N.A. Only

1шт.

5a

87454649

CORE-STARTER

Return Number STARTER - For N.A. Only

1шт.

6

L115112

CABLE

CABLE - ground

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

8

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

9

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

1шт.

10

25-108

NUT,1/2"-13, G5

NUT - hex, 1/2" - 13 NC

1шт.

11

L116161

CABLE

CABLE -, Serial Range: battery-starter

1шт.

12

L116162

CABLE

CABLE - battery ground

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

14

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

CLAMP - battery cable

3шт.

15

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

16

25-108

NUT,1/2"-13, G5

NUT - hex, 1/2" - 13 NC

3шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

18

L112218

BRACKET

SPARE PART BRACKET - battery cable

1шт.

19

L114087

CABLE

CABLE -, Serial Range: battery-battery

2шт.

20

BHC30

BATTERY, DRY

BATTERY DRY BATTERY - 12 volt

4шт.

21

L71381

PLATE

PLATE - hold down, no longer available, order item 29, L104897 plate

2шт.

22

T31481

SCREW

BOLT - special

2-4шт.

23

195-103

WASHER,5/16"

WASHER - flat, 5/16"

2-4шт.

24

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2-4шт.

25

193-72

LOCK WASHER

WASHER - external-internal tooth lock, 3/8"

1шт.

26

L116326

CABLE

WIRE - ground, Serial Range: starter-engine

1шт.

27

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

29

L104897

PLATE

PLATE - hold down

1шт.
