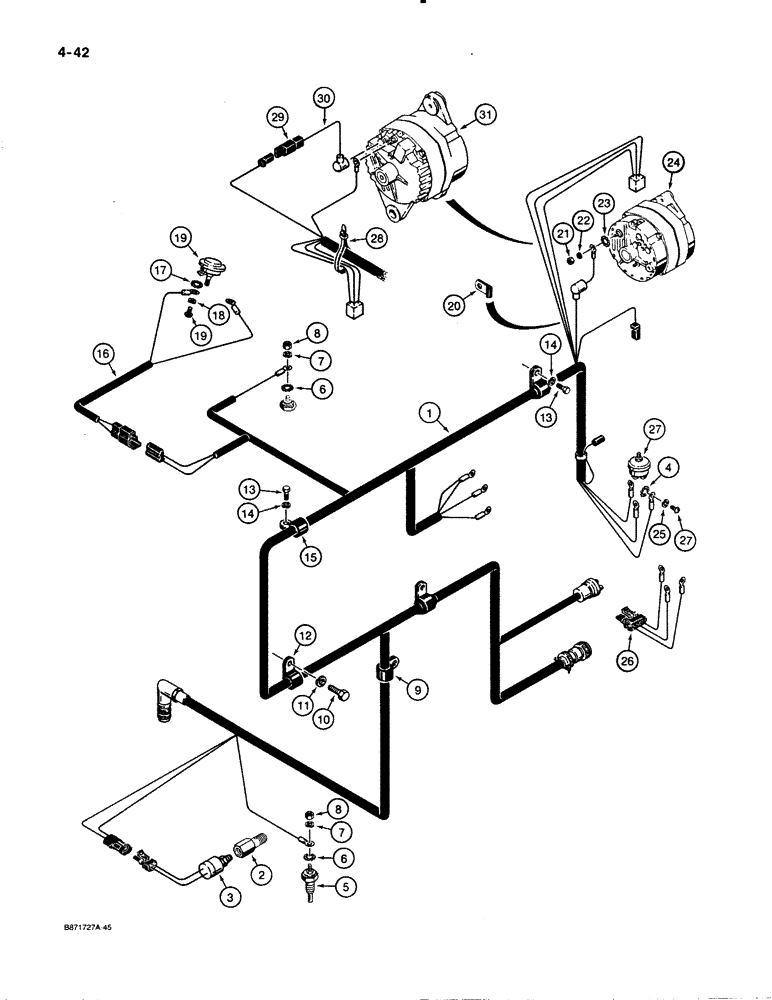

Запчасти Case W30 (4-42) - ELECTRICAL SYSTEM, ENGINE AND TRANSMISSION HARNESS, USED ON MODELS WITH ZF TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

L124779

HARNESS

- engine and transmission

1шт.

2

L124599

FITTING

ADAPTER - switch, clutch pressure

1шт.

3

L118080

SWITCH

- clutch pressure

1шт.

4

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - internal-external tooth lock, No. 8, plated

3шт.

5

L104249

SWITCH

SENDER - torque converter oil temperature

1шт.

6

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

129-37

NUT,#10-32

2шт.

9

49845

CLAMP

- harness

1шт.

10

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

49845

CLAMP

- harness

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

51200321

CLAMP

- harness

1шт.

16

L115950

CABLE

WIRE - air cleaner switch

1шт.

17

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

18

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

19

L112211

SWITCH

- vacuum, air restriction indicator

1шт.

20

49851

SHIELD

- harness

1шт.

21

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm x 1

1шт.

22

892-1106

LOCK WASHER,M6

1шт.

23

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4"

1шт.

24

REF

INSTRUCTION

ALTERNATOR - 40-45 amp, see Figure 4-48 for mounting parts, see item 31 for 65 amp alternator, Delco alternator shown

1шт.

For correct alternator and components, see parts list on Figures 4-02 through 4-06.

1шт.

25

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

26

L123675

HARNESS

1шт.

The coupler on the end of the harness is (1) 225232C1 connector, (1) 225301C1 clamp, and (5) 453133C1 plugs.

1шт.

27

L111811

SWITCH

- oil pressure

1шт.

27

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

223-155

ELEC CONNECTOR,Female, 1 Pin

CONNECTOR - wire, if used

1шт.

30

L109643

HARNESS

WIRE - 65 amp alternator

1шт.

31

REF

INSTRUCTION

ALTERNATOR - 65 amp, see Figure 4-50 for mounting parts, see item 24 for 45 amp alternator

1шт.

For correct alternator and components, see parts list on Figures 4-02 through 4-06.

1шт.
