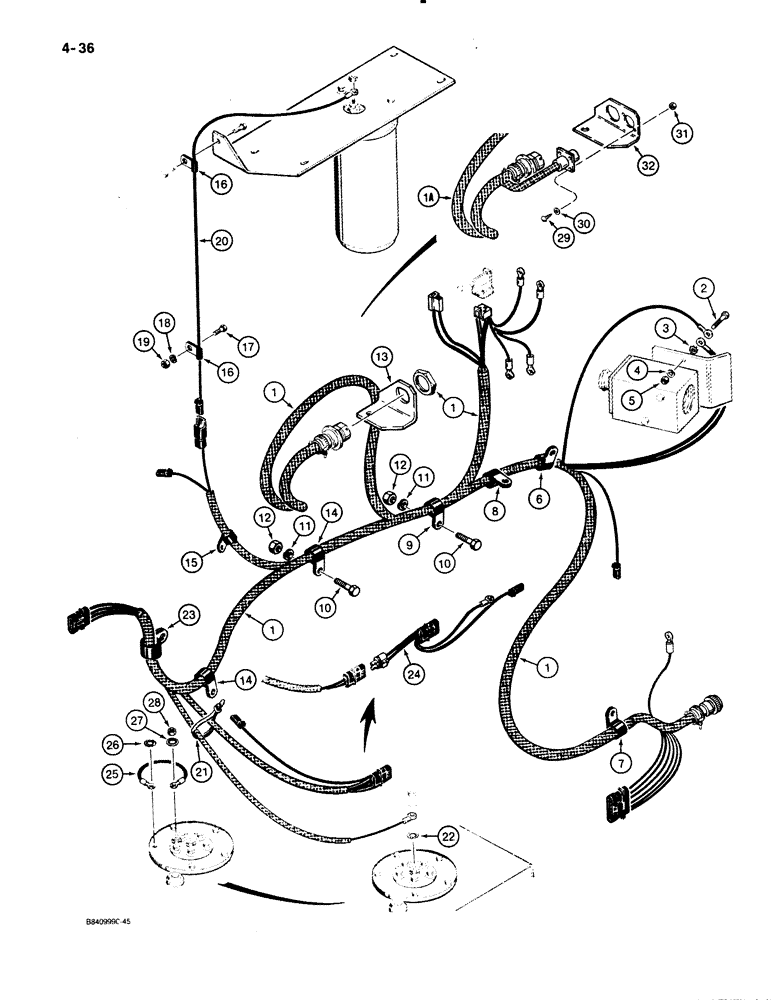

Запчасти Case W30 (4-36) - ELECTRICAL SYSTEM, REAR HARNESS (04) - ELECTRICAL SYSTEMS

1

L116945

HARNESS

- rear, for units before PIN 9159529 with air conditioning order item 24 below, used on models with Allison transmission

1шт.

1a

L117982

HARNESS

- rear, used on models with ZF transmission

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

193-72

LOCK WASHER

- external-internal tooth lock, 3/8"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

6

D40471

CLAMP

- wire, if used

1шт.

7

D40471

CLAMP

- wire

1шт.

8

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- wire

1шт.

9

T50103

CLAMP

- wire

1шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

13

L115020

ANGLE

BRACKET - harness support, used on models with Allison transmission

1шт.

14

S15543

CLAMP,7/16", Insul, 1/2" Bolt

- wire

2шт.

15

49851

SHIELD

- wire

1шт.

16

D43839

CLAMP

- wire

2шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

20

L114286

HARNESS

WIRE - hydraulic filter switch

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - harness, if used

2шт.

22

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

23

L116455

MOUNTING CLIP

CLAMP - harness

1шт.

24

L117006

CABLE

- jumper, for units with air conditioning before PIN 9159529, if used

1шт.

25

L114608

HARNESS

WIRE - ground, fuel sender, used on models with Allison transmission

1шт.

26

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4", plated, used on models with Allison transmission

1шт.

27

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Used on models with Allison transmission Int Tooth, #10

1шт.

28

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, no. 10 - 32 NF, plated, used on models with Allison transmission

1шт.

29

182-593

SCREW,Cross Pan Hd, #8-32 x 3/4"

MACHINE SCREW - pan Phillips head, No. 8 - 32 NC x 3/4", black, used with ZF transmission only

2шт.

30

195-510

WASHER,#8

- flat, No. 8, plated, used with ZF transmission only

2шт.

31

129-6

NUT,#8-32

Used with ZF transmission only #8-32

2шт.

32

L117993

ANGLE

BRACKET - harness support, used with ZF transmission only

1шт.
