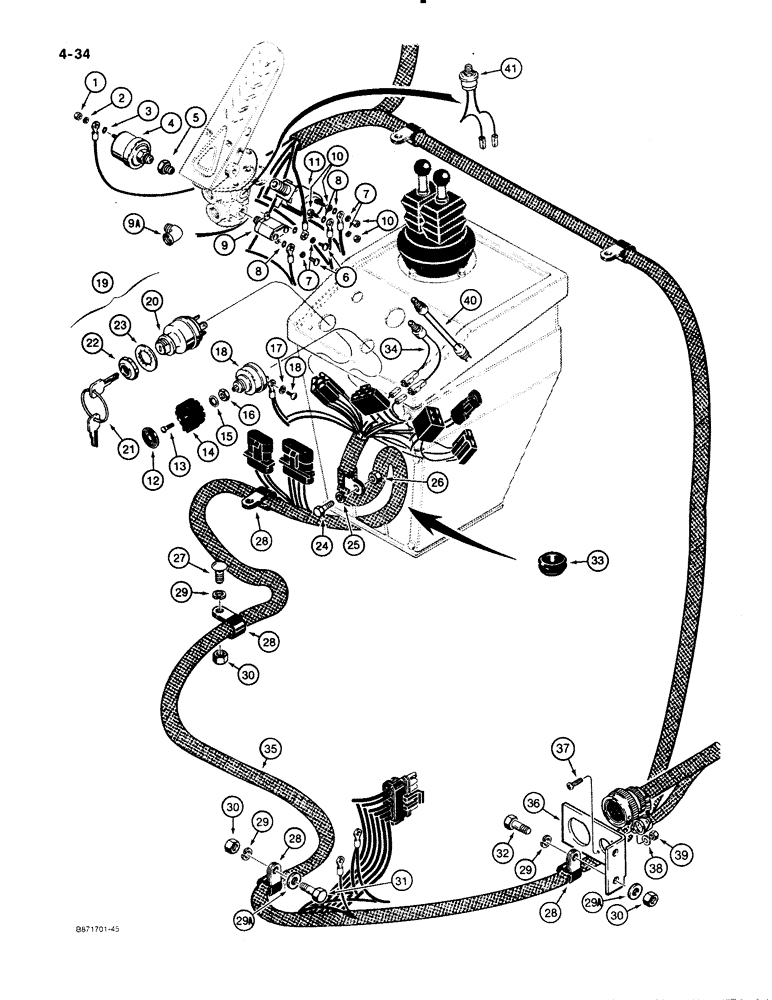

Запчасти Case W30 (4-34) - ELECTRICAL SYSTEM, FRONT HARNESS - CONSOLE, USED ON MODELS WITH ZF TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

129-37

NUT,#10-32

1шт.

2

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

4

L109945

TRANSMITTER

SENDER - air pressure, mounted vertical on later models

1шт.

5

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

1шт.

6

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- pan head slotted, No. 8 - 32 NC x 1/2"

2шт.

7

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

8

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - external-internal tooth lock, No. 8

4шт.

9

L48480

SWITCH

- air pressure, switch for parking brake used before PIN 9163178

1шт.

9a

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

1шт.

10

129-16

NUT,#8-32

4шт.

11

L116542

VALVE, CHECK

VALVE - double check and stop lamp switch, parts list Figure 7-48

1шт.

12

A160035

PLATE

- control knob

1шт.

13

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- pan head slotted, No. 8 - 32 NC x 5/8"

1шт.

14

A141735

KNOB

- lamp switch

1шт.

15

193-101

LOCK WASHER,Int Tooth, 11/16"

WASHER - internal tooth lock, 11/16"

1шт.

16

A20467

NUT

- hex, self-locking, special

1шт.

17

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

18

A141607

SWITCH

- lamp

1шт.

19

D134737

IGNITION SWITCH

KEY SWITCH ASSEMBLY - includes keys

1шт.

20

NSS

NOT SOLD SEPARAT

SWITCH - less keys

1шт.

21

A77313

SET OF 2 KEYS

KEY - set of two; metal without padding

1шт.

22

A77314

NUT

- hex

1шт.

23

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

25-104

NUT,1/4"-20, G5

1шт.

27

111-316

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5

1шт.

28

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness, was 49885

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

29a

D41740

WASHER

- flat, 3/8", hardened

2шт.

30

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

33

A75989

GROMMET

- control console

1шт.

34

A167644

PRESSURE SWITCH

SWITCH - parking brake lamp

1шт.

35

L117981

HARNESS

- front

1шт.

36

L117986

ANGLE

BRACKET - harness support

1шт.

37

182-593

SCREW,Cross Pan Hd, #8-32 x 3/4"

MACHINE SCREW - pan Phillips head, No. 8 - 32 NC x 3/4", black

2шт.

38

195-510

WASHER,#8

- flat, No. 8, plated, if used

2шт.

39

129-16

NUT,#8-32

2шт.

40

L117909

SWITCH

- declutch, 70 PSI

1шт.

41

A177629

SWITCH

- declutch, 22 PSI

1шт.
