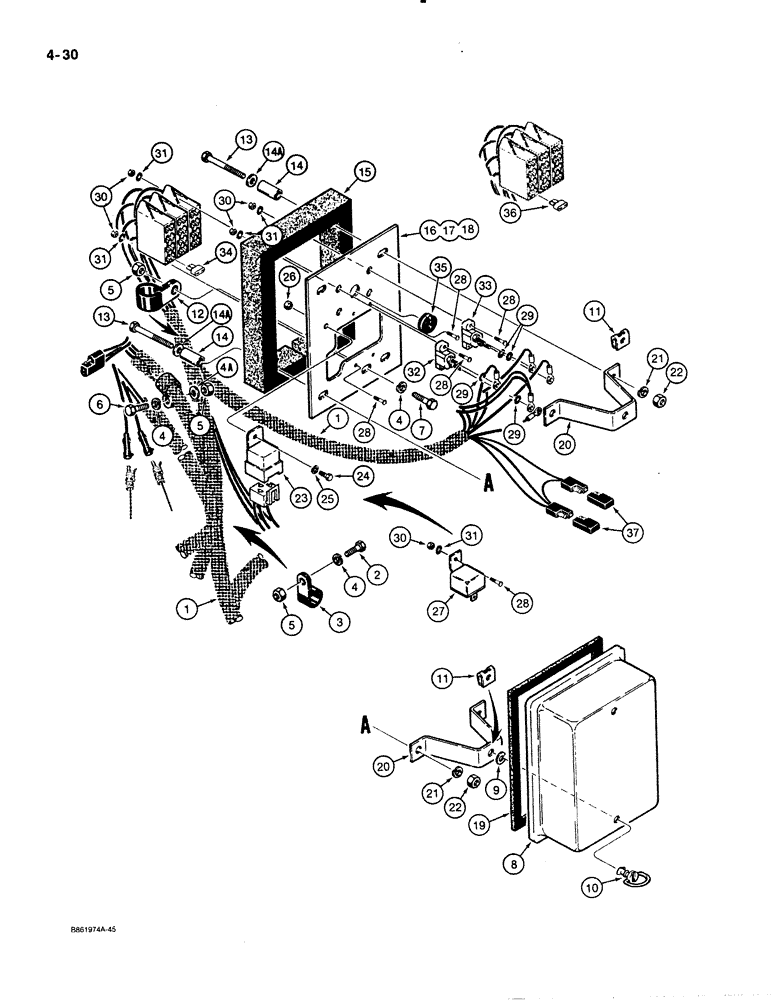

Запчасти Case W30 (4-30) - ELECTRICAL SYSTEM, FRONT HARNESS - FUSE BOX (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - front, see Figure 4-32 or 4-34 for correct harness

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness

2шт.

4

92-6

LOCK WASHER,3/8"

4шт.

4a

D41740

WASHER

- flat, 3/8", hardened

1шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

8

L108029

COVER

- electrical components

1шт.

9

L103349

WASHER

RETAINER - split ring

2шт.

10

L103347

ANCHOR

FASTENER - cover

2шт.

11

A36042

CLIP

RECEPTACLE - fastener

2шт.

12

R14668

CLAMP

- harness

1шт.

13

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4"

4шт.

14

D40925

SPACER

- bolt

4шт.

14a

D41740

WASHER

- flat, 3/8", hardened, if used

4шт.

15

L107680

GASKET

- panel

1шт.

16

L116535

PANEL

- electrical components, for service order items 18 and 35

1шт.

17

L116729

PANEL

- electrical components, has threaded holes, uses 1/4" bolt to mount item 23, L114539 relay, no longer available, order item 18, L118430 panel

1шт.

18

L118430

PANEL

- electrical components, has threaded holes, uses No. 10 screw to mount item 27, L118429 relay

1шт.

19

L108046

GASKET

- cover

1шт.

20

L108052

BRACKET

MOUNT - cover

2шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

23

L114539

RELAY

- lamps, no longer available, order item 27, L118429 relay

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

25-104

NUT,1/4"-20, G5

If used 1/4"-20, G5

1шт.

27

L118429

RELAY

- lamps, when used with item 17, L116729 panel order items 28,30, and 31

1шт.

28

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- pan head slotted, No. 10 - 24 NC x 3/4"

9шт.

29

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

8шт.

30

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

5-9шт.

31

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

32

L116224

BREAKER

CIRCUIT BREAKER - 25 amp

1шт.

33

L115178

BREAKER

CIRCUIT BREAKER - 10 amp

1шт.

34

A149796

FUSE

- 3 amp

5-7шт.

35

D121047

GROMMET

- panel, fuse

1шт.

36

A149799

FUSE

- 7.5 amp, used on models with ZF transmission only

2шт.

37

L71879

DIODE ELEMENT,400V, 3A

DIODE - panel, fuse, used on models with ZF transmission only

2шт.
