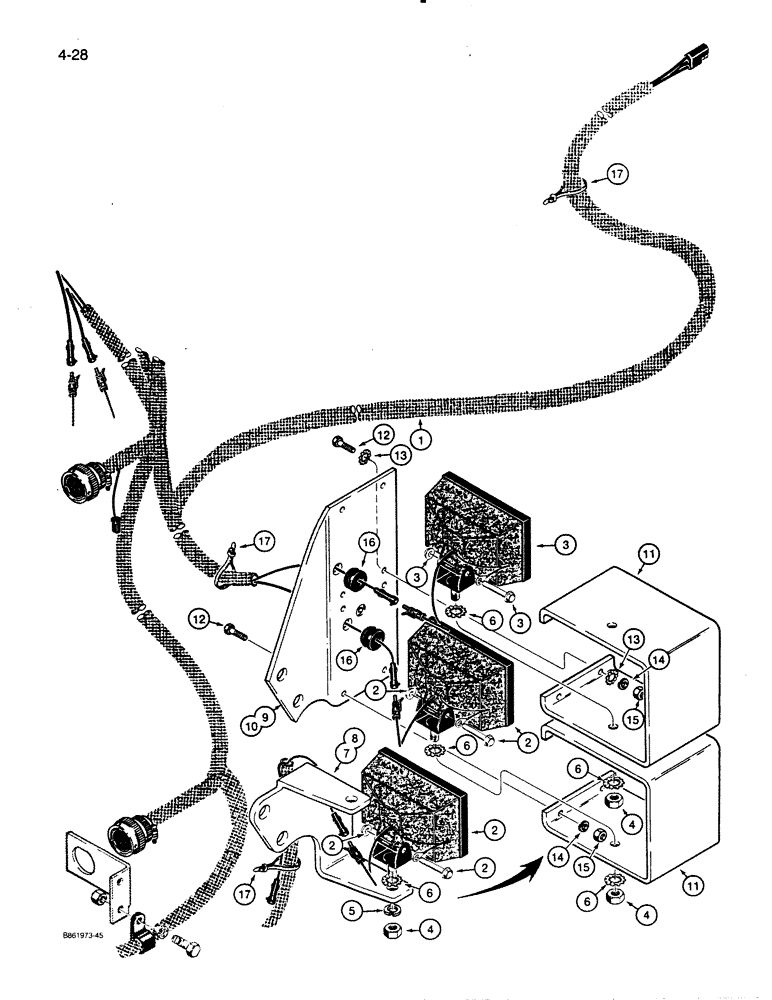

Запчасти Case W30 (4-28) - ELECTRICAL SYSTEM, FRONT HARNESS - LAMPS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - front, see Figure 4-32 or 4-34 for correct harness

1шт.

2

L113373

LIGHT ASSY.

LAMP - flood, parts list Figure 4-56

2шт.

3

L113374

LIGHT

LAMP - front driving, parts list Figure 4-56

2шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2-4шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

4шт.

7

L115215

BRACKET

- lamp mounting, right-hand

1шт.

8

L115216

BRACKET

- lamp mounting, left-hand

1шт.

9

L115225

BRACKET

- lamp guard, right-hand, if used

1шт.

10

L115226

BRACKET

- lamp guard, left-hand, if used

1шт.

11

L115238

LAMP

GUARD - lamp

4шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

16шт.

13

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

4-8шт.

14

92-5

LOCK WASHER,5/16"

16шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

16шт.

16

L116540

GROMMET

- guard

4шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
