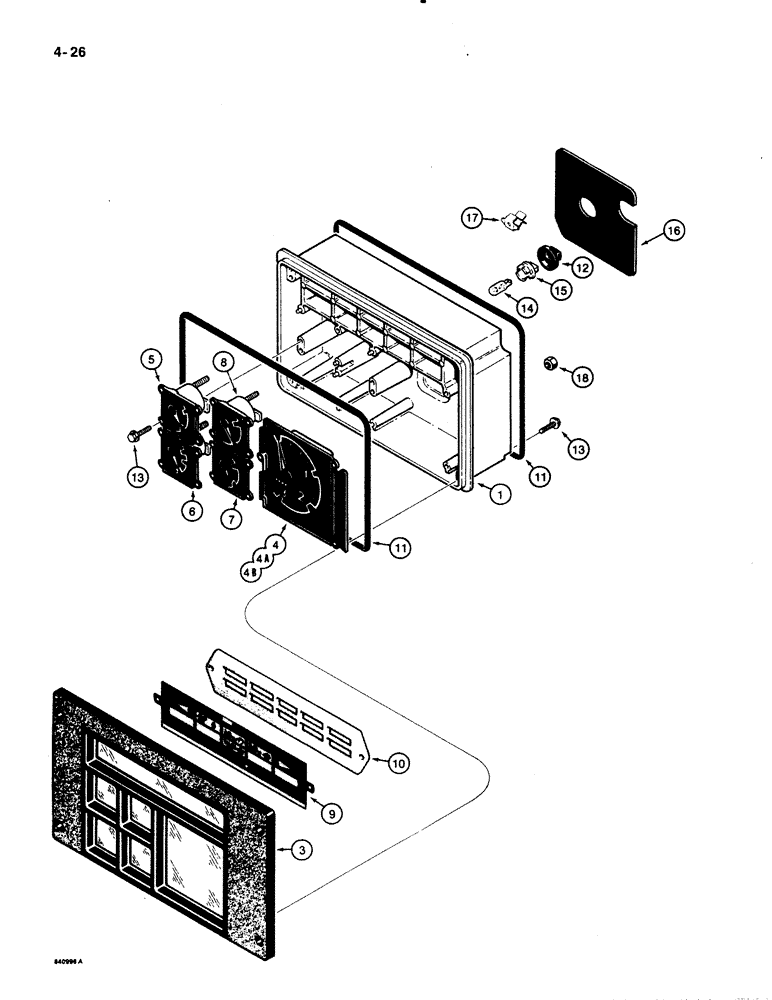

Запчасти Case W30 (4-26) - ELECTRICAL SYSTEM, INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

L105945

CLUSTER

INSTRUMENT CLUSTER - 24 volt, for identification see item 4 below

1шт.

L116014

CLUSTER

INSTRUMENT CLUSTER - 24 volt, for identification see item 4A below

1шт.

L118321

CLUSTER, INSTR.

INSTRUMENT CLUSTER - 24 volt, for identification see item 4B below

1шт.

1

N9152

HOUSING

- instrument cluster

1шт.

2

H422774

BOARD, PRINTED CIRCU

PRINTED CIRCUIT - instrument cluster, not shown

1шт.

3

D71334

LENS

- instrument cluster

1шт.

4

N9151

TACHOMETER

GAUGE - tachometer, used on L105945 cluster, without colored dot

1шт.

Ref #4 - (A C #25054094)

1шт.

4a

N13549

TACHOMETER

GAUGE - tachometer, used on L116014 cluster, has bright green dot

1шт.

Ref #4A - (A C #250591870

1шт.

4b

N13960

TACHOMETER

GAUGE - tachometer, used on L118321 cluster, has bright red dot

1шт.

Ref #4B - (A C #25059967)

1шт.

5

N7179

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

6

N7180

FUEL GAUGE

GAUGE - fuel

1шт.

7

N7181

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

8

N7182

ELECTRICAL GAUGE

GAUGE - oil temperature

1шт.

9

N6809

INDICATOR

LENS - warning lamp identification

1шт.

10

D71342

GASKET,3.05mm Thk

- lens

1шт.

11

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

12

D71344

COVER

BOOT - lamp socket

3шт.

13

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

14

N8330

LAMP

- instrument cluster

11шт.

15

N8481

HOLDER

SOCKET - lamp

11шт.

16

H422758

GASKET,1.52mm Thk

- back cover

1шт.

17

H422766

CLIP, SPRING

CLIP - gauge

12шт.

18

129-15

NUT,#6-32

3шт.
