Запчасти Case W30 (4-24) - ELECTRICAL SYSTEM, OPTIONAL GAUGES (04) - ELECTRICAL SYSTEMS

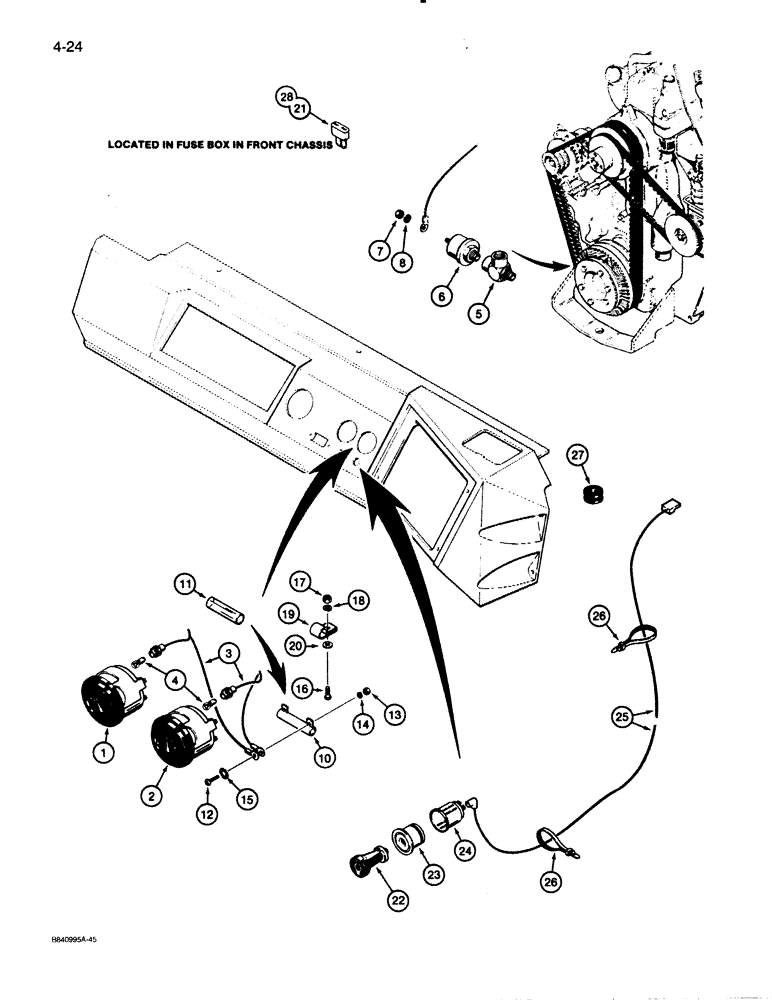

Схема запчастей Case W30 - (4-24) - ELECTRICAL SYSTEM, OPTIONAL GAUGES (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L127114

VOLTMETER

GAUGE - voltmeter, was L111876

1шт.

2

L127113

GAUGE

- oil pressure, was L111875

1шт.

3

L115038

SOCKET

- lamp

2шт.

4

B50213

BULB

- gauge, No. 53

2шт.

5

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- engine oil pressure sender

1шт.

6

W10140

TRANSMITTER

SENDER - engine oil pressure

1шт.

7

129-37

NUT,#10-32

1шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

9

RESERVED

1шт.

10

L103985

RESISTOR

- 39 ohm, 12 watt

1шт.

11

223-125

TUBE

SHRINK TUBING - resistor

2шт.

12

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- pan head, No. 8 - 32 NC x 3/8"

2шт.

13

129-6

NUT,#8-32

2шт.

14

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

15

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - external-internal tooth lock, No. 8

2шт.

16

182-571

SCREW,Cross Pan Hd, #6-32 x 1/2"

- pan head, Phillips, No. 6 - 32 NC x 1/2"

1шт.

17

129-5

NUT,#6-32

1шт.

18

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

19

L73415

CLAMP

- resistor

1шт.

20

195-85

WASHER,#6

- flat, black teflon, No. 6

1шт.

21

A149796

FUSE

- 3 amp, in fuse holder on front chassis

1шт.

L111915

CIGAR LIGHTER

LIGHTER - cigar, 24V

1шт.

22

N9430

UNIT

HANDLE - pop-out, cigar lighter

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - cigar lighter

1шт.

24

N9429

ELEMENT

SHIELD - element, cigar lighter

1шт.

25

L114920

HARNESS

WIRE - cigar lighter

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

27

L77834

GROMMET

- wire

1шт.

28

A149802

FUSE

- 20 amp, in fuse holder on front chassis

1шт.

L127112

GAUGE

transmission oil temp

1шт.

Выбрано товаров: 30
