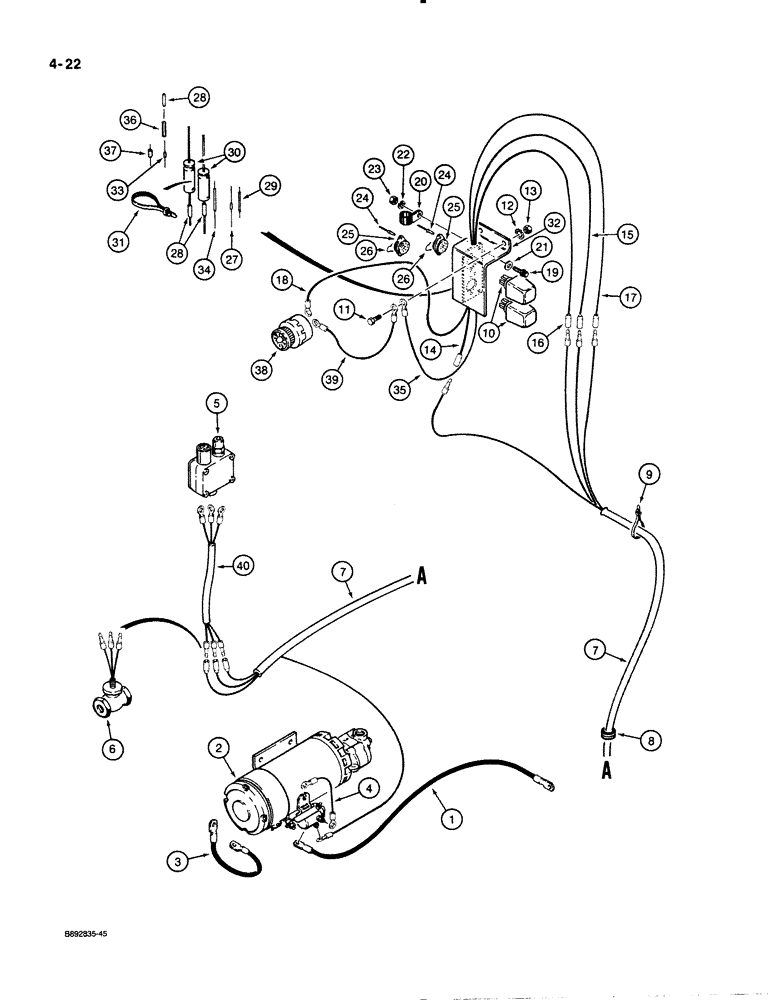

Запчасти Case W30 (4-22) - ELECTRICAL SYSTEM, AUTOMATIC AUXILIARY STEERING WITH BUZZER, MODELS WITH ZF TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

L126372

CABLE

- power supply

1шт.

2

L116118

PUMP, HYDRAULIC

PUMP AND MOTOR - auxiliary steering, parts list Figure 5-18

1шт.

3

L57536

CABLE

WIRE - ground, pump

1шт.

4

A18457

ELECTRICAL WIRE

WIRE - ground, solenoid, 13" (320 mm) long

1шт.

services 5" (127 mm) production wire

1шт.

5

L126826

IGNITION SWITCH

SWITCH - pressure, see Figure 5-12 for related parts, see

1шт.

ref 40 L126893 harness, if used

1шт.

6

L113437

SWITCH

- flow, see Figure 8-12 for related parts, if used

1шт.

7

L126365

HARNESS

- auxiliary steering

1шт.

8

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- harness

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - wire

1шт.

10

L113460

RELAY,24V

- steering

2шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

L112206

SWITCH

SOCKET ASSEMBLY - steering

1шт.

14

L70804

ELECTRICAL WIRE

WIRE -, Serial Range: solenoid-relay

1шт.

15

L100265

ELECTRICAL WIRE

WIRE - flow switch to relay, 19" (483 mm) long

1шт.

16

L100266

ELECTRICAL WIRE

WIRE - flow switch to relay, 21" (533 mm) long

1шт.

17

L57997

ELECTRICAL WIRE

WIRE -, Serial Range: harness-relay

1шт.

18

L79604

ELECTRICAL WIRE

WIRE - lamp and, Serial Range: buzzer-relay

1шт.

19

169-77

SCREW - Fillister head, No. 8 - 32 NC x 1/2"

2шт.

20

L108233

MOUNTING CLIP

CLAMP - wire

2шт.

21

195-10

WASHER,#8

2шт.

22

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

23

129-6

NUT,#8-32

2шт.

24

151-526

RIVET,Pop, 1/8" x .337"

- Relay socket Pop, 1/8" x .337"

4шт.

25

L57132

SOCKET

- relay

2шт.

26

L70845

ELECTRICAL WIRE

WIRE - ground

2шт.

27

L101026

RESISTOR

- 47 ohm, 2 watt

1шт.

28

223-126

SLEEVE

SHRINK TUBING - resistor

2-3шт.

29

L57998

ELECTRICAL WIRE

WIRE - jumper

1шт.

30

L72299

CAPACITOR

- 2000 mfd, 50 volt

1-2шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - harness

1шт.

32

L70807

BRACKET

- relay

1шт.

33

L112201

RESISTOR

- 50 ohm

1шт.

34

L100226

ELECTRICAL WIRE

WIRE -, Serial Range: socket-socket

1шт.

35

L100227

ELECTRICAL WIRE

WIRE - ground

1шт.

36

S235009

ELECTRICAL WIRE

WIRE -, Serial Range: resistor-socket

2шт.

37

L112202

DIODE

- used with L112206 socket assembly

3шт.

38

L79560

BUZZER

LAMP AND BUZZER - auxiliary steering

1шт.

39

L126952

ELECTRICAL WIRE

WIRE - ground, buzzer, was L126371 or L114704 wire

1шт.

40

L126893

HARNESS

- used with ref 5 L126826 pressure switch, if used

1шт.
