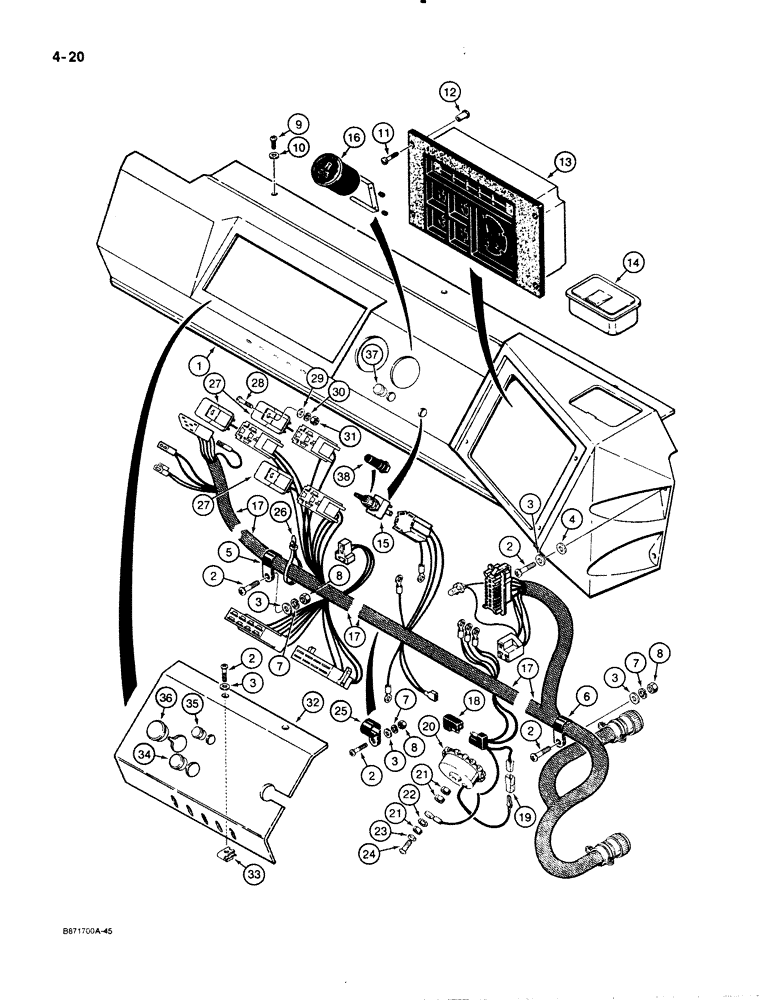

Запчасти Case W30 (4-20) - ELECTRICAL SYSTEM, INSTRUMENT PANELS AND HOURMETER, USED ON MODELS WITH ZF TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

L126748

PANEL

INSTRUMENT PANEL - used with Bosch alternator and round hourmeter, includes ash tray, cab models only, also order 353-404 plug item 37, was L117991

1шт.

1a

L126749

PANEL

INSTRUMENT PANEL - used with Bosch alternator and round hourmeter, without ash tray, canopy models only, also order 353-404 plug item 37, was L123864, not shown

1шт.

2

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- pan head, Phillips, 1/4" - 20 NC x 3/4"

10шт.

3

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 1/4"

11шт.

4

A161723

WASHER

- rubber, 1/4"

4шт.

5

49833

CLAMP

- harness

1шт.

6

V34264

CLAMP,3/4", Insul, 1/4" Bolt

- harness

1шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

25-104

NUT,1/4"-20, G5

4шт.

9

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, Phillips, No. 10 - 24 NC x 3/4", black

3шт.

10

195-100

WASHER,#12

- flat, 1/4"

3шт.

11

182-570

SCREW,Cross Pan Hd, #10-32 x 1"

- pan head, Phillips, No. 10 - 32 NF x 1", black

4шт.

12

L60362

RING NUT

- special

4шт.

13

L118321

CLUSTER, INSTR.

INSTRUMENT CLUSTER - panel, parts list Figure 4-26, has bright red dot, used with Bosch 40 amp alternator

1шт.

14

L61261

ASH TRAY

- used with L117991 instrument panel only

1шт.

15

D75360

SWITCH

- test, hydraulic oil filter and air filter

1шт.

16

L118551

HOURMETER

- instrument panel, round

1шт.

17

L117984

HARNESS

- instrument panel

1шт.

18

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness

1шт.

19

223-166

CONNECTOR, ELEC

CONNECTOR - wire female

1шт.

20

L115252

BUZZER

- low air pressure

1шт.

21

129-6

NUT,#8-32

3шт.

22

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - external-internal tooth lock, No. 8

1шт.

23

195-10

WASHER,#8

1шт.

24

182-593

SCREW,Cross Pan Hd, #8-32 x 3/4"

- pan head, Phillips, No. 8 - 32 NC x 3/4", black

1шт.

25

49840

CLAMP

- harness

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

27

L118429

RELAY

- lamps, metal

3шт.

28

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", black

3шт.

29

195-100

WASHER,#12

- flat, 3/16", black Teflon coated

3шт.

30

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

31

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

3шт.

32

L118002

PLATE

- instrument panel

1шт.

33

131-120

NUT

- U-type, 1/4" - 20

2шт.

34

353-407

PLUG,Dome, .687" hole, Nylon

- nylon, 11/16"

1шт.

35

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

36

353-408

PLUG,Dome, .750" hole, Nylon

- nylon, 3/4"

1шт.

37

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

1шт.

38

L101998

BOOT

- toggle switch, if used

1шт.
