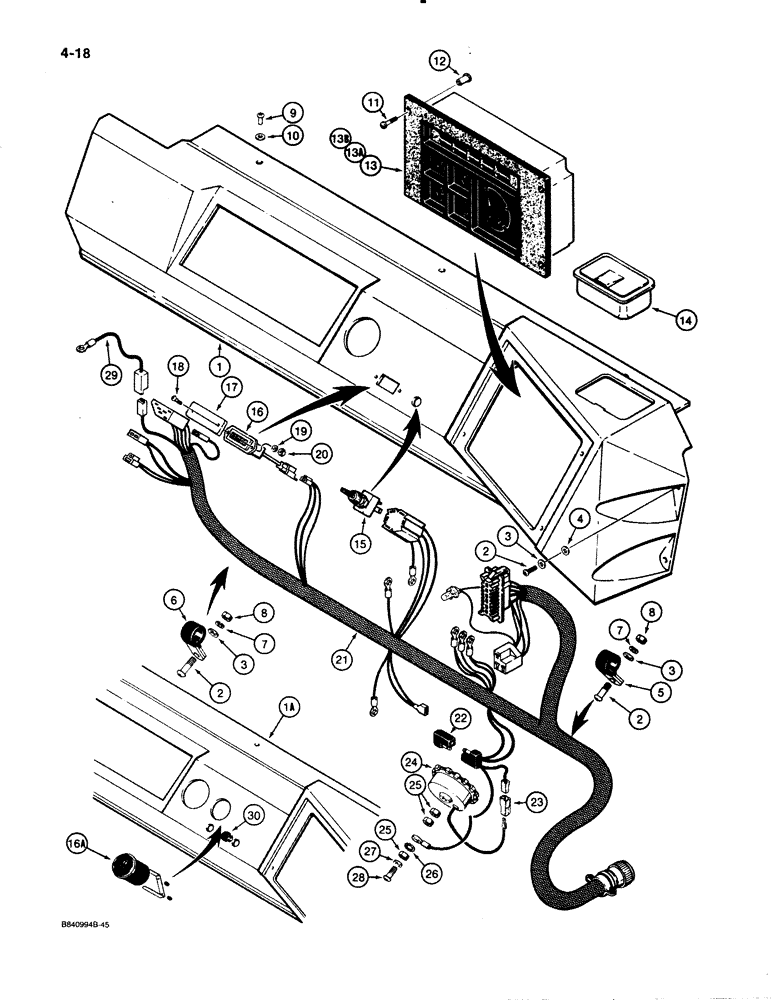

Запчасти Case W30 (4-18) - ELECTRICAL SYSTEM, INSTRUMENT PANELS AND HOURMETER, USED ON MODELS WITH ALLISON TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

L111643

PANEL

INSTRUMENT PANEL - used with square hourmeter, no longer available, order L126748 panel, 20-2018T1 hourmeter, and 353-404 plug

1шт.

1a

L126748

PANEL

INSTRUMENT PANEL - used on cab models with round hourmeter and with ash tray, replaces L111643, L123647 and L117991 panels

1шт.

1a

L126749

PANEL

INSTRUMENT PANEL - used on canopy models with round hourmeter and without ash tray, replaces L123864 panel, not shown

1шт.

2

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- pan head, Phillips, 1/4" - 20 NC x 3/4"

6шт.

3

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 1/4"

6шт.

4

A161723

WASHER

- rubber, 1/4"

4шт.

5

49833

CLAMP

- harness

1шт.

6

V34264

CLAMP,3/4", Insul, 1/4" Bolt

- harness

1шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, Phillips, No. 10 - 24 NC x 3/4", black

3шт.

10

195-100

WASHER,#12

- flat, 1/4"

3шт.

11

182-570

SCREW,Cross Pan Hd, #10-32 x 1"

- pan head, Phillips, No. 10 - 32 NF x 1", black

4шт.

12

L60362

RING NUT

- special

4шт.

13

L105945

CLUSTER

INSTRUMENT CLUSTER - panel, parts list Figure 4-26, has no colored dot, used with Delco 40 amp alternator

1шт.

13a

L118321

CLUSTER, INSTR.

INSTRUMENT CLUSTER - panel, parts list Figure 4-26, has bright red dot, used with Bosch 40 amp alternator

1шт.

13b

L116014

CLUSTER

INSTRUMENT CLUSTER - panel, parts list Figure 4-26, has bright green dot, used with Delco 65 amp alternator

1шт.

14

L61261

ASH TRAY

- instrument panel, if used

1шт.

15

D75360

SWITCH

- test, hydraulic oil filter and air filter

1шт.

16

L114392

HOURMETER

- instrument panel, square, if used

1шт.

16a

20-2018T1

HOURMETER

- instrument panel, round, if used, was L118551

1шт.

17

L109528

COVER

- lens protector, if used

1шт.

18

182-592

SCREW,Cross Pan Hd, #6-32 x 3/4"

- pan head, Phillips, No. 6 - 32 NC x 3/4", black, if used

2шт.

19

195-7

WASHER,#6

- flat, No. 6, if used

2шт.

20

131-503

LOCK NUT

NUT - hex head, self-locking, No. 6 - 32 NC, if used

2шт.

21

L114815

HARNESS

- instrument panel

1шт.

22

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness

1шт.

23

223-166

CONNECTOR, ELEC

CONNECTOR - wire female

1шт.

24

L115252

BUZZER

- low air pressure

1шт.

25

129-6

NUT,#8-32

3шт.

26

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - external-internal tooth lock, No. 8

1шт.

27

195-10

WASHER,#8

1шт.

28

182-593

SCREW,Cross Pan Hd, #8-32 x 3/4"

- pan head, Phillips, No. 8 - 32 NC x 3/4", black

1шт.

29

L115040

CABLE

- ground, instrument panel

1шт.

30

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

1шт.
