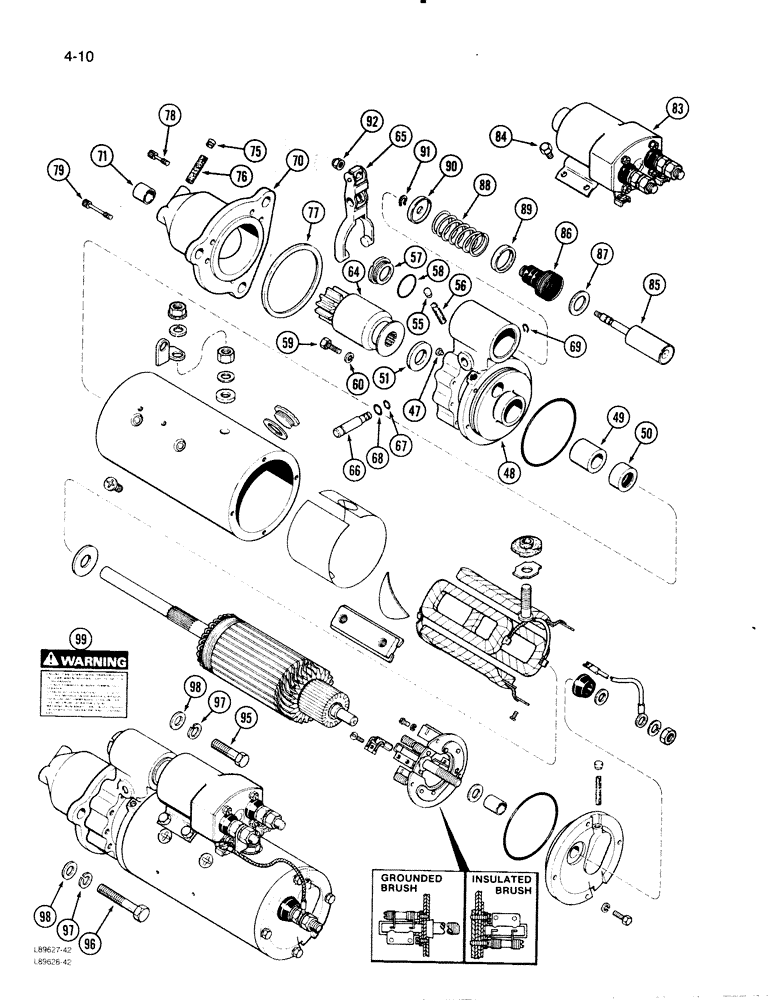

Запчасти Case W30 (4-10) - STARTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
STARTER ASSEMBLY - engine, continued
1шт.
47
A47897
PLUG
- lever housing, rubber
1шт.
48
A47896
HOUSING
ASSEMBLY - shift lever
1шт.
49
A47261
BUSHING
- armature
1шт.
50
R21582
OIL SEAL
- oil
1шт.
51
R15145
DISC
WASHER - brake
1шт.
55
A47889
PLUG
- oil wick
1шт.
56
A47888
WICK
- oil
1шт.
57
R21587
PLUG
- lever housing
1шт.
58
A41924
GASKET
- plug
1шт.
59
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
5шт.
60
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
64
A47523
DRIVE
ASSEMBLY - starter
1шт.
65
D32547
LEVER
- shifter
1шт.
66
A42199
PIN
STUD - pivot, shift lever
1шт.
67
A47259
O-RING,0.244" ID x 0.391" OD
- small, pivot stud
1шт.
68
A47258
O-RING,0.369" ID x 0.515" OD
- large, pivot stud
1шт.
69
G46146
SNAP RING,#37, Ext
Ring, Snap, , pivot stud #37, Ext
1шт.
70
A47898
HOUSING
ASSEMBLY - drive end
1шт.
71
A47257
BUSHING
- armature
1шт.
75
A47889
PLUG
- oil wick
1шт.
76
A47888
WICK
- oil
1шт.
77
R21562
GASKET
- drive end to shifter housing
1шт.
78
D32489
HEX SOC SCREW,5/16" - 18 x 0.86"
SCREW - housing, short
1шт.
79
D32488
HEX SOC SCREW,5/16" - 18 x 1.50"
SCREW - housing, long
5шт.
83
A47899
SOLENOID SWITCH
SOLENOID ASSEMBLY - service as complete assembly
1шт.
84
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
- solenoid
4шт.
85
A42309
PLUNGER
- solenoid
1шт.
86
A42308
BOOT
- plunger
1шт.
87
A41922
WASHER
SEAT - boot
1шт.
88
A41242
SPRING
- plunger return
1шт.
89
A43380
BACK-UP RING
SEAT - spring, inner
1шт.
90
A43419
SEAT
- spring, outer
1шт.
91
G46146
SNAP RING,#37, Ext
Ring, Snap, , spring retainer #37, Ext
1шт.
92
131-31
LOCK NUT,5/16"-24, G8
NUT - plunger to lever, lock, 5/16 inch
1шт.
95
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
2шт.
96
113-427
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
1шт.
97
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
98
L30674
WASHER
- mounting
3шт.
99
321-3709
DECAL
- starter, warning
1шт.
Выбрано товаров: 40
