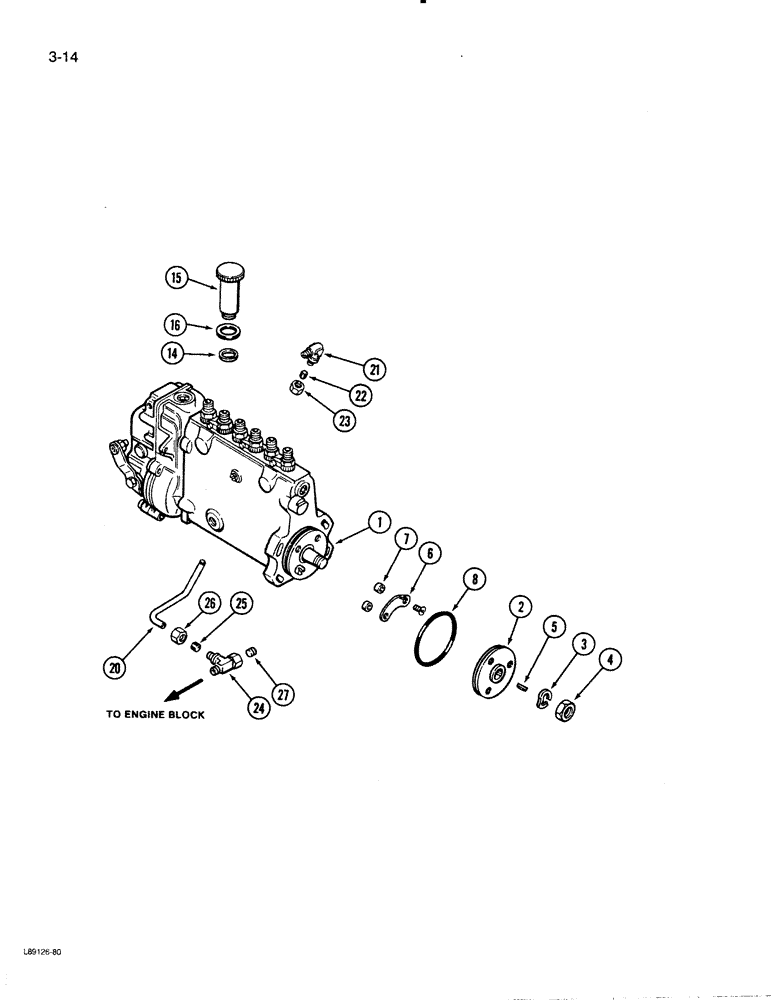

Запчасти Case W30 (3-14) - FUEL INJECTION PUMP, 504BDT ENGINE (03) - FUEL SYSTEM

1

A156989

PUMP

ASSEMBLY - fuel injection (2200 RPM)

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub retaining

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER - hub adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- 3 x 3-3/16 x 1/8 inch

1шт.

12

A66116

CABLE

LEVER - fuel shutoff

1шт.

REF 12 A66116 LEVER USES A59101 STOP CONTROL PIVOT...21MAR96...GLC

1шт.

13

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

- hex, control cable, 4 x 8mm

1шт.

14

A43351

SEAL

- hand primer, copper

2шт.

15

A43343

CARTRIDGE

PRIMER ASSEMBLY - hand pump

1шт.

16

A45342

GASKET

- hand primer (Rubber)

1шт.

20

A136903

TUBE

- lube, oil gallery to injection pump

1шт.

21

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - lube tube

1шт.

22

222-102

SLEEVE,1/4" Tube

1шт.

23

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube

1шт.

24

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

ASSEMBLY - lube tube (In oil gallery)

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube

1шт.

27

221-849

PLUG,Hex Soc, 1/8"-27

- socket head, 1/8 inch PT

1шт.
