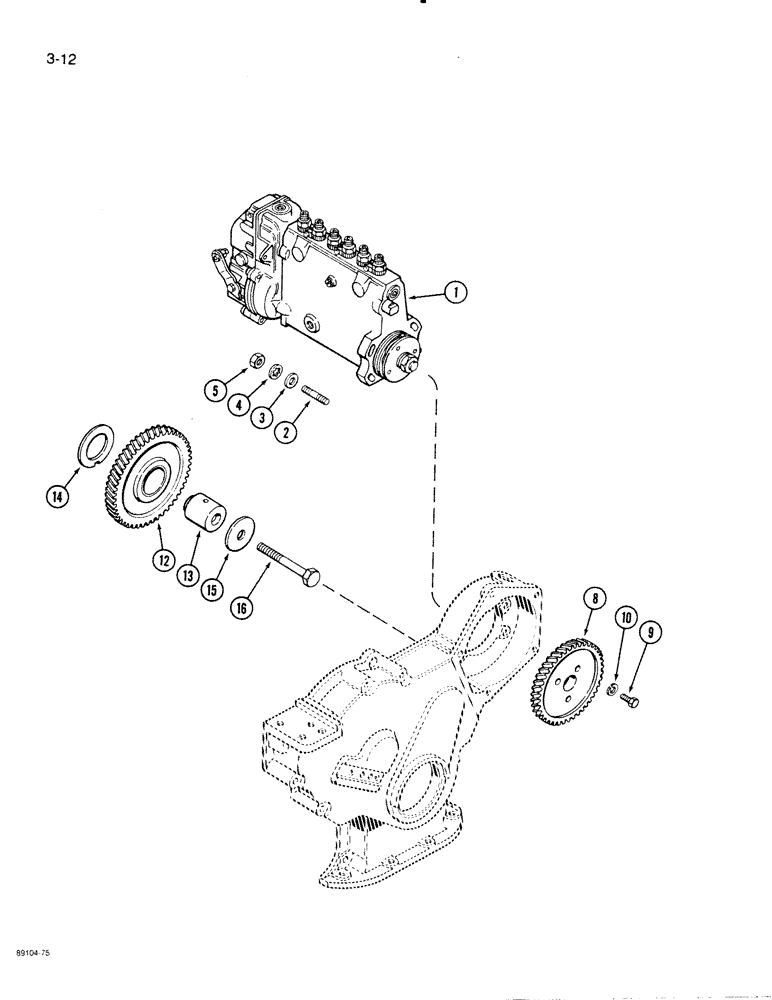

Запчасти Case W30 (3-12) - INJECTION PUMP DRIVE, 504BDT ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-14)

1шт.

2

A59077

STUD

- pump mounting, 3/8 NC x 3/8 NS x 1-15/16 inch (Without hole)

3шт.

2

A142092

STUD

- pump mounting, 3/8 inch NC x 1-7/8 inch (With hole for anti-tamper wire)

1шт.

3

A57470

WASHER

- flat, 3/8 x 11/16 x 16 gauge

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC (Used with A59077 stud)

3шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

NUT - slotted, 3/8 inch NC (Used with A142092 stud)

1шт.

8

A58693

GEAR

- injection pump drive

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gear to hub Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

12

A62542

GEAR

ASSEMBLY - idler, with bushing

1шт.

13

A58690

SHAFT

- idler gear

1шт.

14

A58691

WASHER

- thrust, idler shaft

1шт.

15

A58692

PLATE

- thrust, idler shaft

1шт.

16

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- idler gear, hex, 1/2 NC x 4-1/2 inch

1шт.
