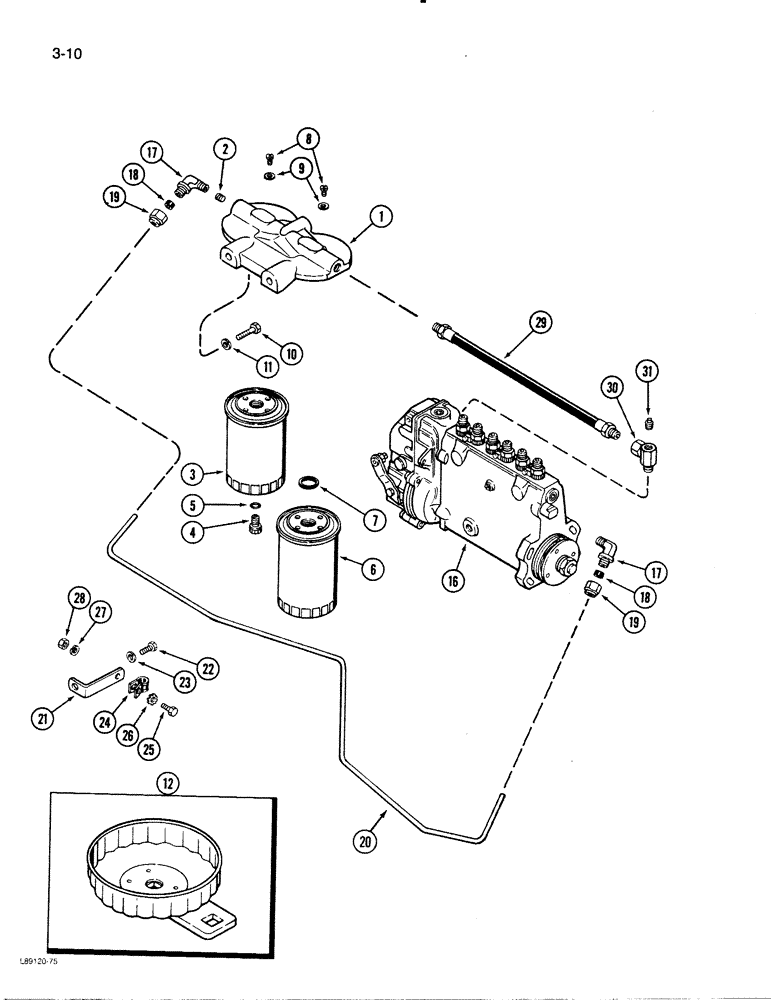

Запчасти Case W30 (3-10) - FUEL FILTER SYSTEM, 504BDT ENGINE (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - filter

1шт.

2

221-1849

PLUG

- socket head, 1/8 inch PT

1шт.

A44068

FUEL FILTER

ELEMENT KIT - fuel filters

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT - first stage filter

1шт.

4

G49080

PLUG

- drain, 10 point head, 3/8 inch NC

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Drain plug, 5/16 x 7/16 x 1/16"

1шт.

6

NSS

NOT SOLD SEPARAT

ELEMENT - second stage filter

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - filter to head (See Note)

1шт.

8

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed, slotted head, No. 10-32 x 5/16 inch

2шт.

9

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw, aluminum, 3/16 x 3/8 x 1/32 inch

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Head to block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

A64761

TOOL

WRENCH - filter removal tool

1шт.

16

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-14)

1шт.

17

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - fuel line

2шт.

18

222-103

SLEEVE,5/16" Tube

- for 3/8 inch tube

1шт.

19

222-113

TUBE NUT,9/16"-24

NUT - for 3/8 inch tube

1шт.

20

A157329

TUBE

- injection, Serial Range: pump-filter

1шт.

21

A64856

BRACKET

- tube clip mounting

1шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- bracket to block, hex, 3/8 NC x 5/8 inch

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube retaining

1шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clip to bracket Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

26

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

25-104

NUT,1/4"-20, G5

1шт.

29

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- fuel filter to injection pump

1шт.

30

A20539

FITTING

UNION - switch (In injection pump)

1шт.

31

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union, square head, 1/8 inch PT

1шт.
