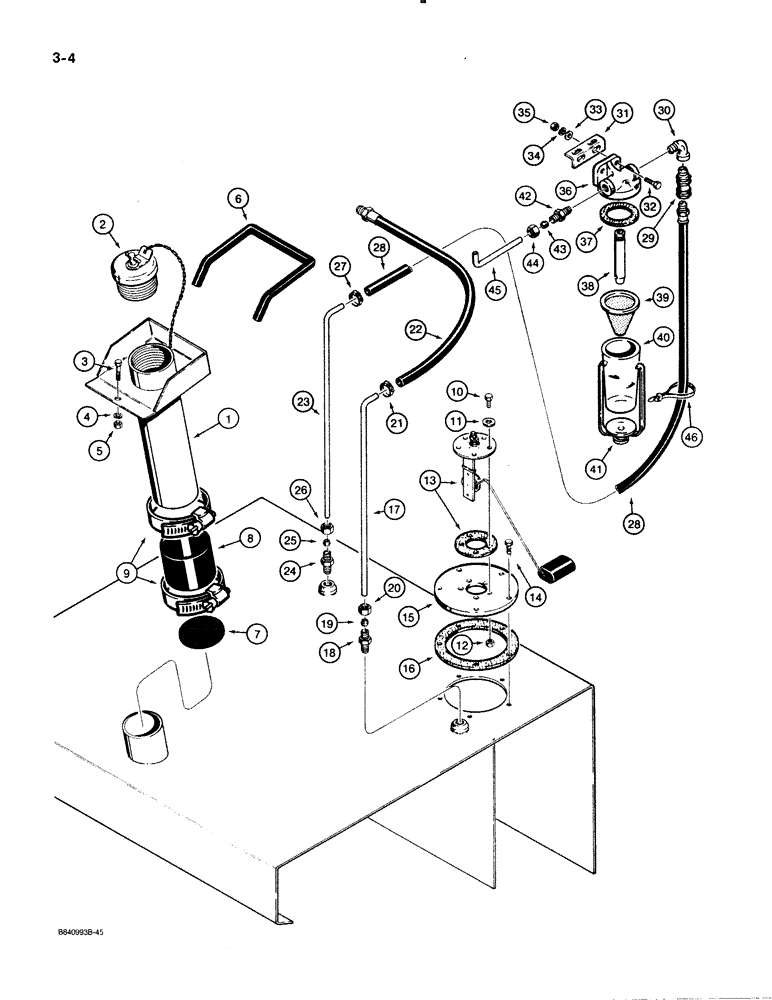

Запчасти Case W30 (3-04) - FUEL TANK AND FUEL LINES (03) - FUEL SYSTEM

L108049

PIPE

AND CAP - fuel filler

1шт.

1

NSS

NOT SOLD SEPARAT

PIPE - filler

1шт.

2

L74929

FILLER CAP

CAP - filler pipe

1шт.

3

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"- 18 NC x 1-1/2"

1шт.

4

92-5

LOCK WASHER,5/16"

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

6

D39366

LINING

TRIM - 20" (508 mm) long, cut from F42827, see below

1шт.

7

L77398

STRAINER ELEMENT

SCREEN - fuel strainer

1шт.

8

L77270

HOSE,89.00 mm ID x 102.00 mm, SAE 30R2

89 mm ID x 102 mm, SAE 30R2, Filler Pipe

1шт.

9

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

2шт.

10

163-13

SCREW,Hex, #10 - 24 x 3/4"

BOLT - hex head, No. 10 - 24 NC x 3/4"

5шт.

11

L115306

WASHER

- special

5шт.

12

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

13

L118306

TRANSMITTER

SENDER - fuel level, includes gasket

1шт.

For the wiring connections to the fuel sender, see Figure 4-36.

1шт.

14

L108414

BOLT

- special

5шт.

15

L77441

PLATE

- fuel sender mounting

1шт.

16

L79876

GASKET,4.57mm Thk

- plate

1шт.

17

L106066

FUEL TUBE,6.35 mm OD x 445, 35 mm L

TUBE - return

1шт.

222-639

FITTING,7/16"-24 x 1/4" NPT, Comp

ASSEMBLY - compression, straight

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

19

222-652

SLEEVE,1/4" Tube, Comp

- fitting

1шт.

20

222-662

TUBE NUT,7/16"-24, 45 Degree Fl, Comp

COMPRESSION NUT - fitting

1шт.

21

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1шт.

22

L71044

HOSE

- 1/4" (6 mm) ID x 34" (864 mm) long

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116" (2946 mm) long

1шт.

23

L119109

FUEL TUBE,9.53 mm OD x 478, 46 mm L

TUBE - supply, was L71206

1шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

ASSEMBLY - compression, straight

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

25

222-654

FERRULE,3/8" Tube, Comp

- fitting

1шт.

26

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

COMPRESSION NUT - fitting

1шт.

27

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1шт.

28

L104802

FUEL HOSE,9.53 mm ID x 1168.00 mm, SAE 30R3

Supply 9.53 mm ID x 1168.00 mm, SAE 30R3

1шт.

29

L17627

VALVE

- check

1шт.

30

221-412

ELBOW,90 Degree, 1/4"-27, NPT

STREET ELBOW - 90 degree

1шт.

31

L101076

BRACKET

- sediment bowl

1шт.

32

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

33

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

35

25-104

NUT,1/4"-20, G5

4шт.

R18798

STRAINER ELEMENT

SEDIMENT BOWL - fuel

1шт.

36

R21356

HOUSING

BODY - sediment bowl

1шт.

37

R21357

GASKET

- sediment bowl

1шт.

38

R21360

TUBE,0.687" DIA x 3.344" L

- sediment bowl

1шт.

39

R21359

FILTER SCREEN

SCREEN - sediment bowl

1шт.

40

R21361

BOWL

- sediment bowl

1шт.

41

R21358

CLAMP

RETAINER - sediment bowl

1шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

FITTING ASSEMBLY - compression, straight

1шт.

42

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

43

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

44

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

45

L105998

FUEL TUBE,9.52 mm OD x 207, 47 mm L

TUBE - fuel

1шт.

46

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
